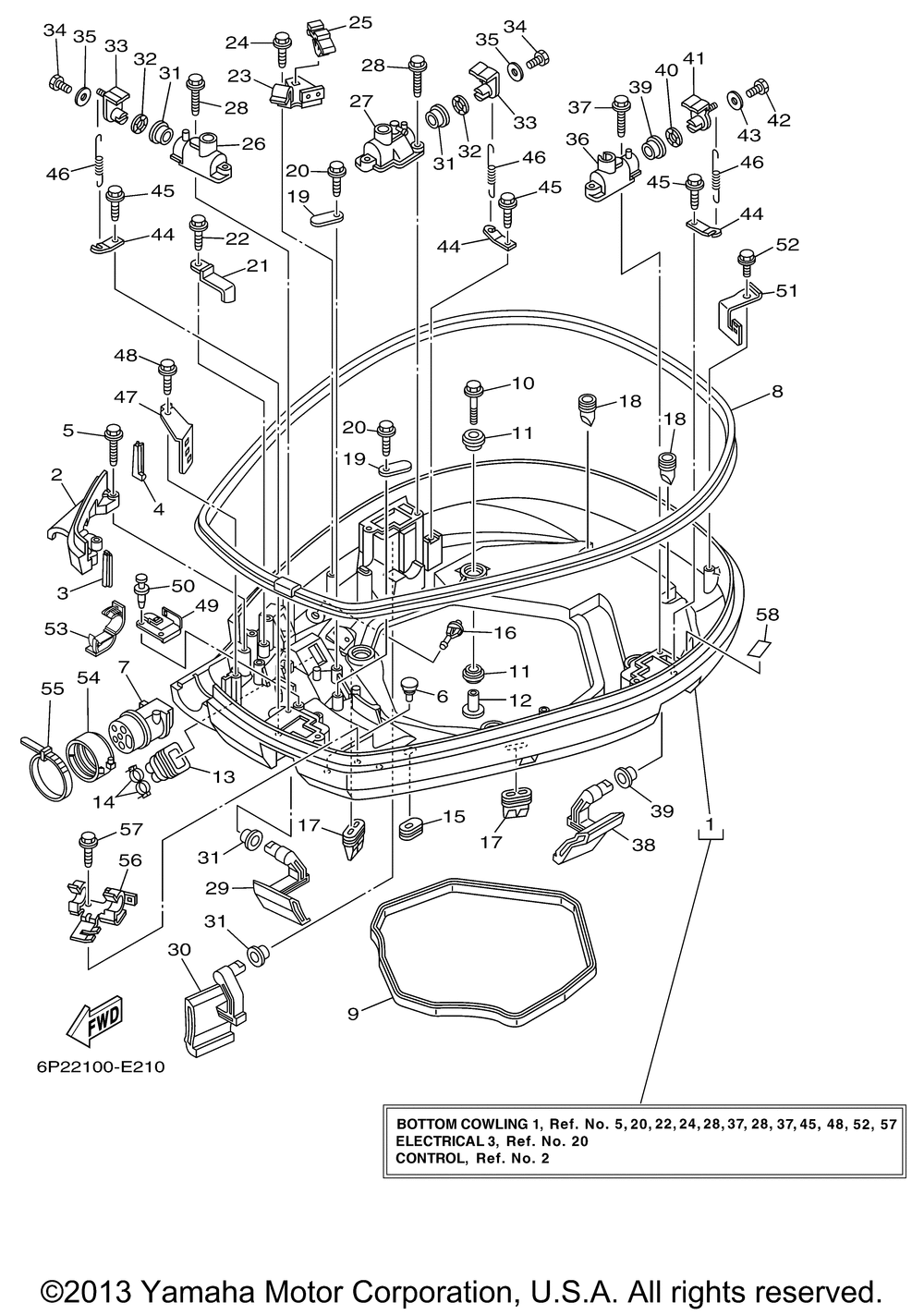

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BOTTOM COWLING ASSY | 1 | |
| 2 | PLATE FITTING | 1 | |
| 3 | RUBBER SEAL 2 | 1 | |
| 4 | RUBBER SEAL 3 | 1 | |
| 5 | BOLT | 2 | |
| 6 | GROMMET | 2 | |
| 7 | GROMMET | 1 | |
| 8 | SEAL | 1 | |
| 9 | RUBBER SEAL 1 | 1 | |
| 10 | BOLTWITH WASHER | 4 | |
| 11 | GROMMET | 8 | |
| 12 | COLLAR | 4 | |
| 13 | GROMMET | 1 | |
| 14 | CLAMP | 2 | |
| 15 | GROMMET 4 | 1 | |
| 16 | NIPPLE HOSE | 1 | |
| 17 | RUBBER SEAL 2 | 2 | |
| 18 | RUBBER SEAL 2 | 2 | |
| 19 | PLATE | 2 | |
| 20 | BOLT | 2 | |
| 21 | CLAMP | 1 | |
| 22 | BOLT | 1 | |
| 23 | STAY NEUTRAL SWITCH | 1 | |
| 25 | CLAMP | 1 | |
| 26 | PLATE CLAMP | 1 | |
| 27 | PLATE CLAMP | 1 | |
| 29 | LEVER CLAMP | 1 | |
| 30 | LEVER CLAMP | 1 | |
| 31 | BUSHSPEC'L NYLON | 4 | |
| 32 | WASHERWAVE | 2 | |
| 33 | LEVER CLAMP | 2 | |
| 34 | BOLT HEXAGON | 2 | |
| 35 | WASHERPLATE | 2 | |
| 36 | PLATE CLAMP | 1 | |
| 38 | LEVER CLAMP | 1 | |
| 41 | LEVER CLAMP | 1 | |
| 44 | HOOK SPRING | 3 | |
| 46 | SPRING TENSION | 3 | |
| 47 | BRACKET | 1 | |
| 49 | BRACKET 2 | 1 | |
| 50 | RIVET | 2 | |
| 51 | BRACKET 3 | 1 | |
| 53 | CLAMP | 2 | |
| 54 | FASTNER AP | 1 | |
| 55 | CLAMP | 1 | |
| 56 | CLAMP | 1 | |
| 58 | LABEL | 1 |
