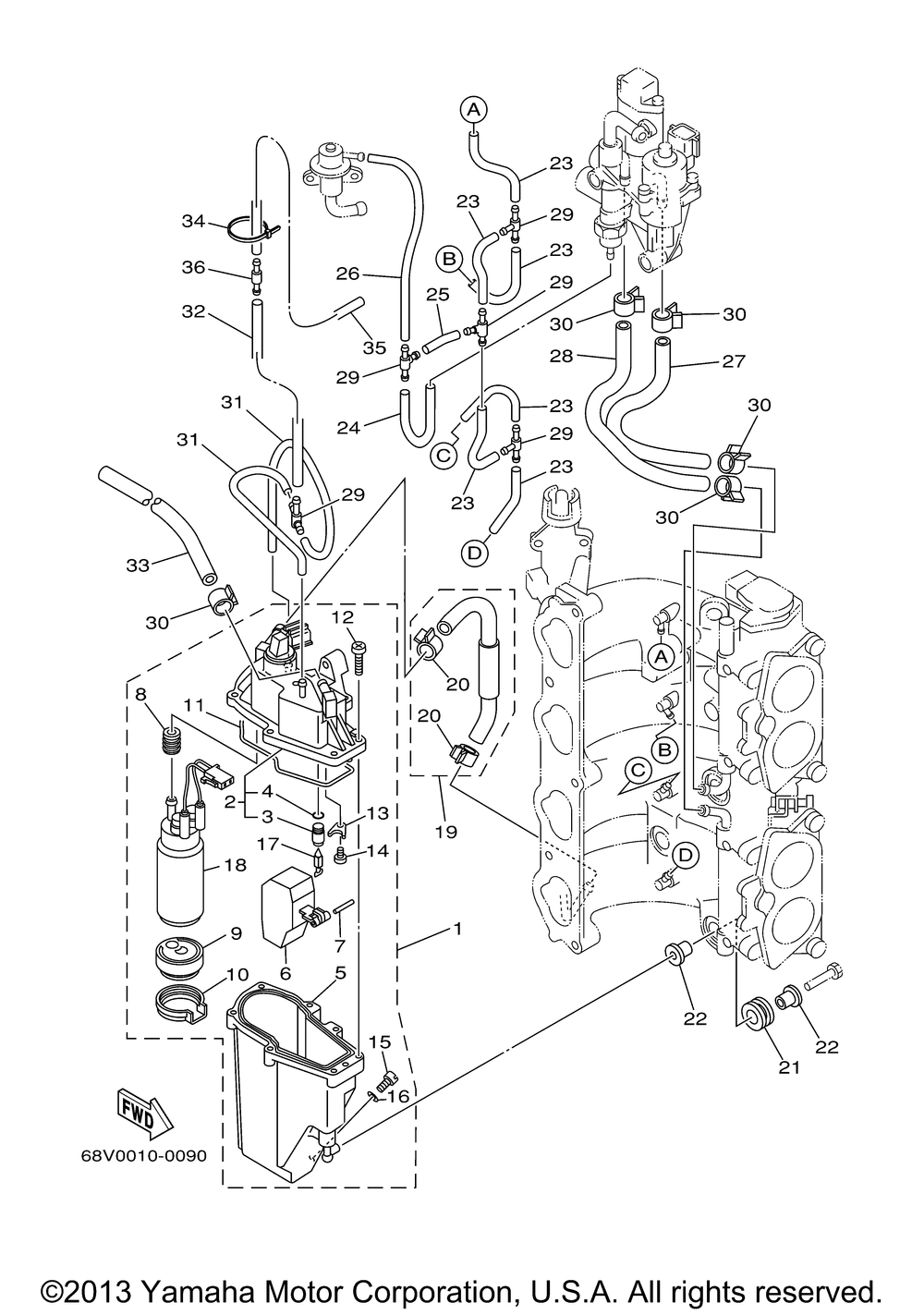

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FLOAT CHAMBER ASSY | 1 | |
| 2 | COVER FLOAT CHAMBER | 1 | |
| 3 | SEAT VALVE | 1 | |
| 4 | O-RING | 1 | |
| 5 | BODY FLOAT CHAMBER | 1 | |
| 6 | FLOAT | 1 | |
| 7 | PIN FLOAT | 1 | |
| 8 | DAMPER PUMP | 1 | |
| 9 | FILTER | 1 | |
| 10 | COVER PUMP | 1 | |
| 11 | GASKET FLOAT CHAMBE | 1 | |
| 12 | SCREW | 7 | |
| 13 | PLATE | 1 | |
| 14 | SCREW | 1 | |
| 15 | PLUG DRAIN | 1 | |
| 16 | GASKET | 1 | |
| 17 | VALVE NEEDLE | 1 | |
| 18 | FUEL PUMP COMP. | 1 | |
| 19 | HOSE COMP. | 1 | |
| 20 | CLIP | 2 | |
| 21 | DAMPER | 3 | |
| 22 | COLLAR | 6 | |
| 23 | HOSE VACUUM SENSING | 6 | |
| 24 | HOSE VACUUM SENSING | 1 | |
| 25 | HOSE VACUUM SENSING | 1 | |
| 26 | HOSE VACUUM SENSING | 1 | |
| 27 | HOSE 1 | 1 | |
| 28 | HOSE 2 | 1 | |
| 29 | PIPE JOINT 3 | 5 | |
| 30 | CLIP | 5 | |
| 32 | HOSE 3 | 1 | |
| 33 | HOSE | 1 | |
| 34 | CLAMP 1 | 1 | |
| 36 | RELIEF VALVE ASSY | 1 |
