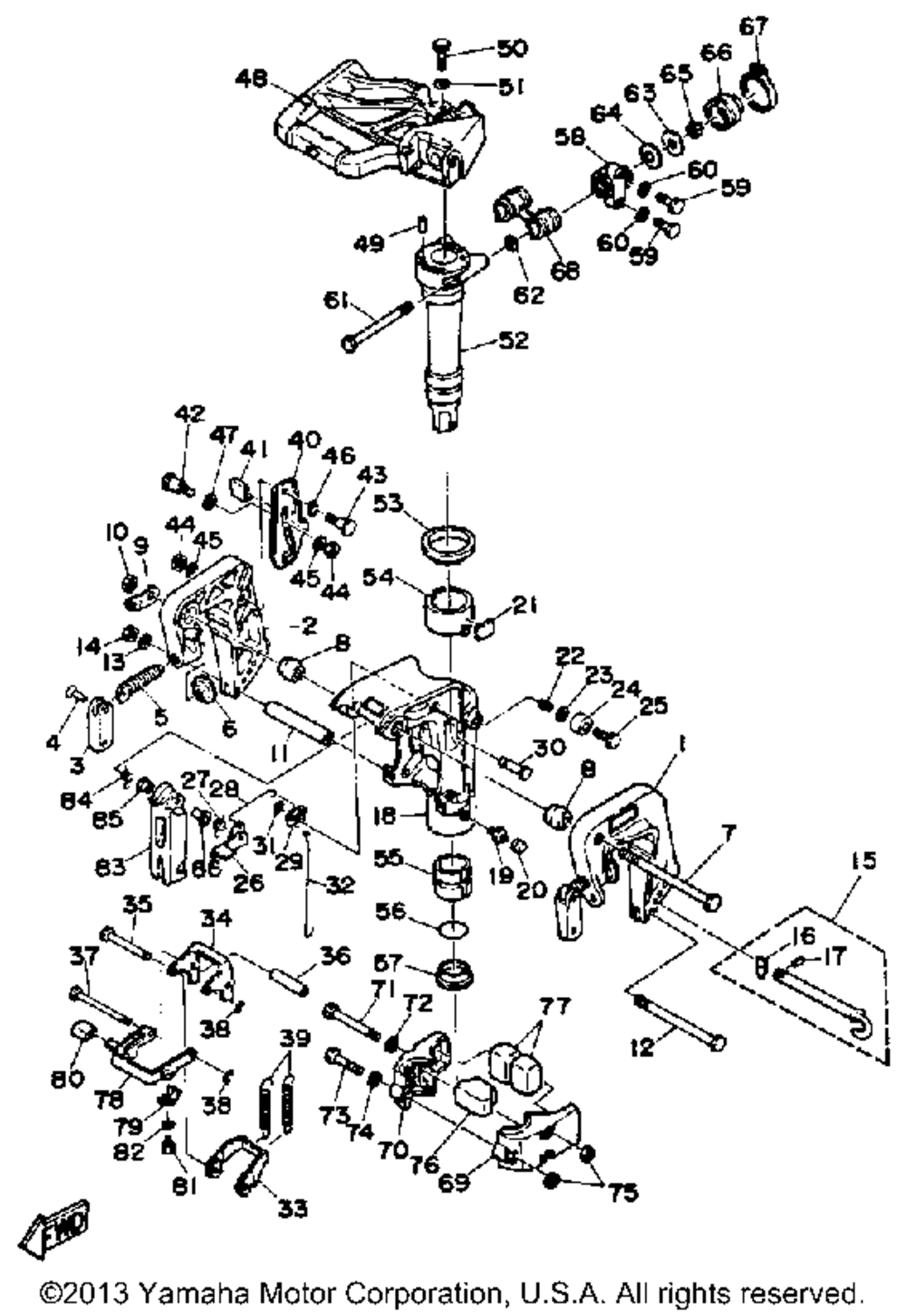

Yamaha 9.9ELG/15LG/15ELG/9.9SG/9.9LG/15ESG/9.9ESG/15SG 9.9ELG/15LG/15ELG/9.9SG/9.9LG/15ESG/9.9ESG/15SG BRACKET
BRACKET
№ Наименование Примечание Кол-во
1 BRACKET CLAMP 1
2 BRACKET CLAMP 1
3 HANDLETRANSOM CLP 2
4 PIN 2
5 SCREWTRANSOM CLAM 2
6 PAD TRANSOM CLAMP 2
7 BOLT 1
8 PIECEFRICTION 2
9 PLATECLAMP BRK 1
10 NUT SELF-LOCKING 1
11 COLLAR 1
12 BOLT 1
13 WASHER (5 per pack) 1
14 NUT 1
15 TILT ROD ASSY 1
16 . .PLATE TILT LOCK 1
17 . .PIN SPRING 1
18 BRACKET SWIVEL 1
19 NIPPLEGREASE 1
20 CAPGREASE NIPPLE 1
21 PIECEFRICTION 1
22 SPRING COMPRESSION 1
23 WASHER (5 per pack) 1
24 SEAL 1
25 BOLT 1
26 LEVER TILT 1 1
27 SPRINGTORSION 1
28 ROD TILT LOCK 1 1
29 LEVER TILT 1
30 PINSPEC'L SHAPE UR ER (E) 1
31 CIRCLIP 1
32 RODTILT LOCK 2 1
33 PLATETILT LOCK 1 1
34 PLATE TILT LOCK 1
35 SHAFTTILT LOCK 1
36 COLLAR 1
37 SHAFT REVERSE LOCK 1
39 SPRINGTENSION 2
39 SPRINGTENSION UR FOR DUAL THRUST PROP. 2
40 LEVERTILT STOP 1
41 COVER 1
42 BOLT 1
43 BOLT 1
44 NUTU 2
46 WASHER WAVE 1
47 WASHER 1
48 BRACKETSTEERING 1
49 PINDOWEL (USA) (5 per pack) 2
50 BOLT 3
52 SHAFT STEERING PIVO 1
53 WASHERSPEC'L SHAP 1
54 BUSHINGPIVOT SHAF 1
55 BUSHSPEC'L NYLON 1
56 O-RING 1
57 BUSHSPEC'L NYLON 1
58 MOUNT DAMPER UPPER 2
61 BOLT 2
62 . .WASHER PLATE 2
63 WASHERPLATE 2
64 WASHERPLATE 2
65 NUT SELF-LOCKING 2
66 SEAL 2
67 CLAMPHOSE 2
68 SEAL 1 1
69 HOUSING LOWER MOUNT 1
70 HOUSING LOWER MOUNT 1
71 BOLT WITH WASHER 2
73 BOLT 1
75 NUT 3
76 MT.DAMPER LR.FRONT 1
77 MOUNT DAMPER LOWER SIDE 2
79 SPRING 1
81 BOLT 1
83 CARRYINGHANDLE 1
84 SPRINGTORSION 1
85 . .BUSH 1
86 BUSHSPEC'L NYLON 1
