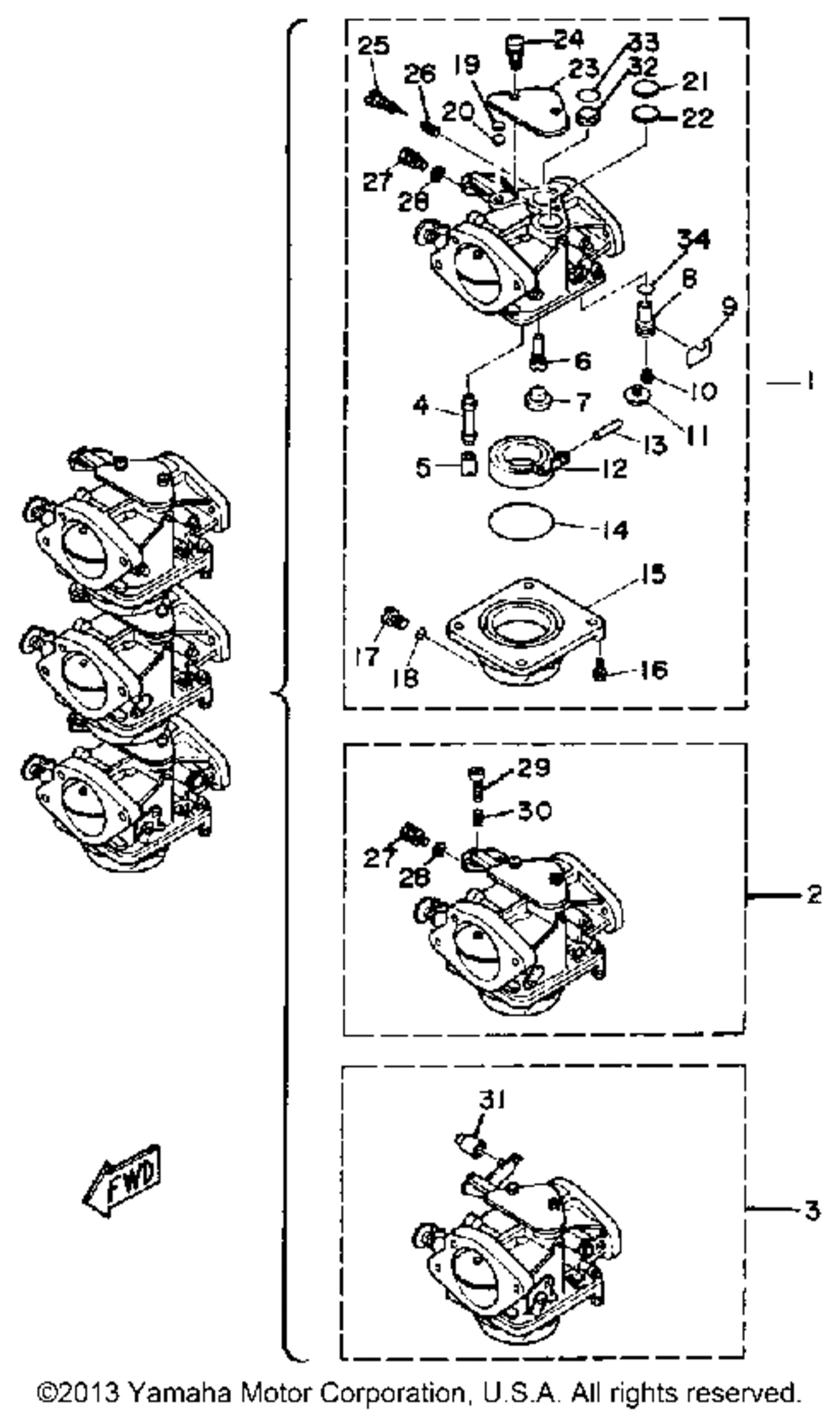

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CARBURETOR ASY 1 (UPPER) (UPPER) | 1 | |
| 2 | CARBURETOR ASY 2 | 1 | |
| 3 | CARBURETOR(LOWER) (LOWER) | 1 | |
| 4 | JETNEEDLE | 3 | |
| 5 | JETMAIN tahos_130 (tahos_130) | 3 | |
| 6 | JET (tahos_70) | 3 | |
| 7 | . CAP | 3 | |
| 8 | VALVE SEAT | 3 | |
| 9 | CLIP | 3 | |
| 10 | PINFLOAT | 3 | |
| 11 | SCREWPAN HEAD | 3 | |
| 12 | . FLOAT | 3 | |
| 13 | . PIN FLOAT ARM | 3 | |
| 14 | . O-RING | 3 | |
| 15 | BODYFLOAT CHAMBER (C60) | 3 | |
| 16 | SCREWW/WASHER | 12 | |
| 17 | DRAIN SCREW | 3 | |
| 18 | O-RING | 3 | |
| 19 | GASKET (C60) | 3 | |
| 20 | PLATE (C60) | 3 | |
| 21 | GASKET (C60) | 3 | |
| 22 | PLATE (C60) | 3 | |
| 23 | PLATE | 3 | |
| 24 | SCREWWITH WASHER | 6 | |
| 25 | SCREWPILOT | 3 | |
| 26 | . .SPRING | 3 | |
| 27 | SCREW | 2 | |
| 28 | WASHERPLATE | 2 | |
| 29 | SCREWSTOP | 1 | |
| 30 | . .SPRING COMPRESSION | 1 | |
| 31 | COLLAR (LOWER) | 1 | |
| 32 | PLATE (C60) | 3 | |
| 33 | O-RING (C60) | 3 |
