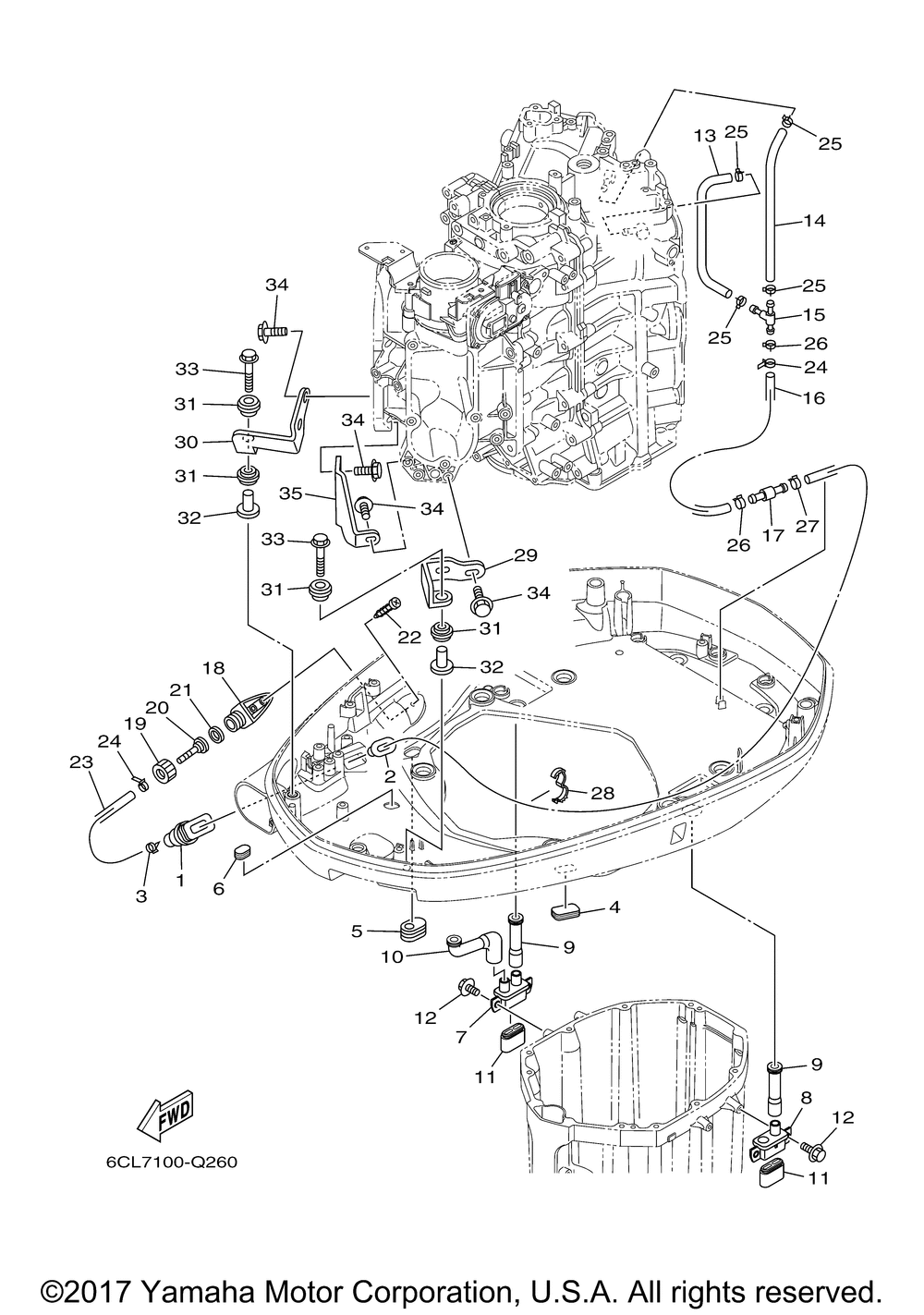

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | GROMMET | 1 | |
| 2 | SEAL CAP | 1 | |
| 3 | CLAMP | 2 | |
| 4 | GROMMET 3 | 1 | |
| 5 | GROMMET 4 | 1 | |
| 6 | GROMMET | 1 | |
| 7 | BOX DRAIN | 1 | |
| 8 | BOX DRAIN 2 | 1 | |
| 9 | HOSE DRAIN 1 | 2 | |
| 10 | HOSE DRAIN 2 | 1 | |
| 11 | RUBBER SEAL 2 | 2 | |
| 12 | BOLT | 4 | |
| 13 | PIPE 5 | 1 | |
| 14 | HOSE (L185) | 1 | |
| 15 | JOINT | 1 | |
| 16 | HOSE (L300) | 1 | |
| 17 | PIPE | 1 | |
| 18 | ADAPTER | 1 | |
| 19 | JOINTHOSE 1 | 1 | |
| 20 | JOINT HOSE 2 | 1 | |
| 21 | GASKETHOSE JOINT | 1 | |
| 22 | SCREWTAPPING | 2 | |
| 23 | HOSE (L1460) | 1 | |
| 25 | CLIP | 4 | |
| 26 | CLIP | 2 | |
| 27 | CLIP | 1 | |
| 28 | CLAMP | 1 | |
| 29 | PLATE CLAMP | 1 | |
| 30 | PLATE CLAMP 2 | 1 | |
| 31 | GROMMET | 4 | |
| 32 | COLLAR | 2 | |
| 33 | BOLT W/WASHER | 2 | |
| 34 | BOLT FLANGE | 6 | |
| 35 | STAY | 1 |
