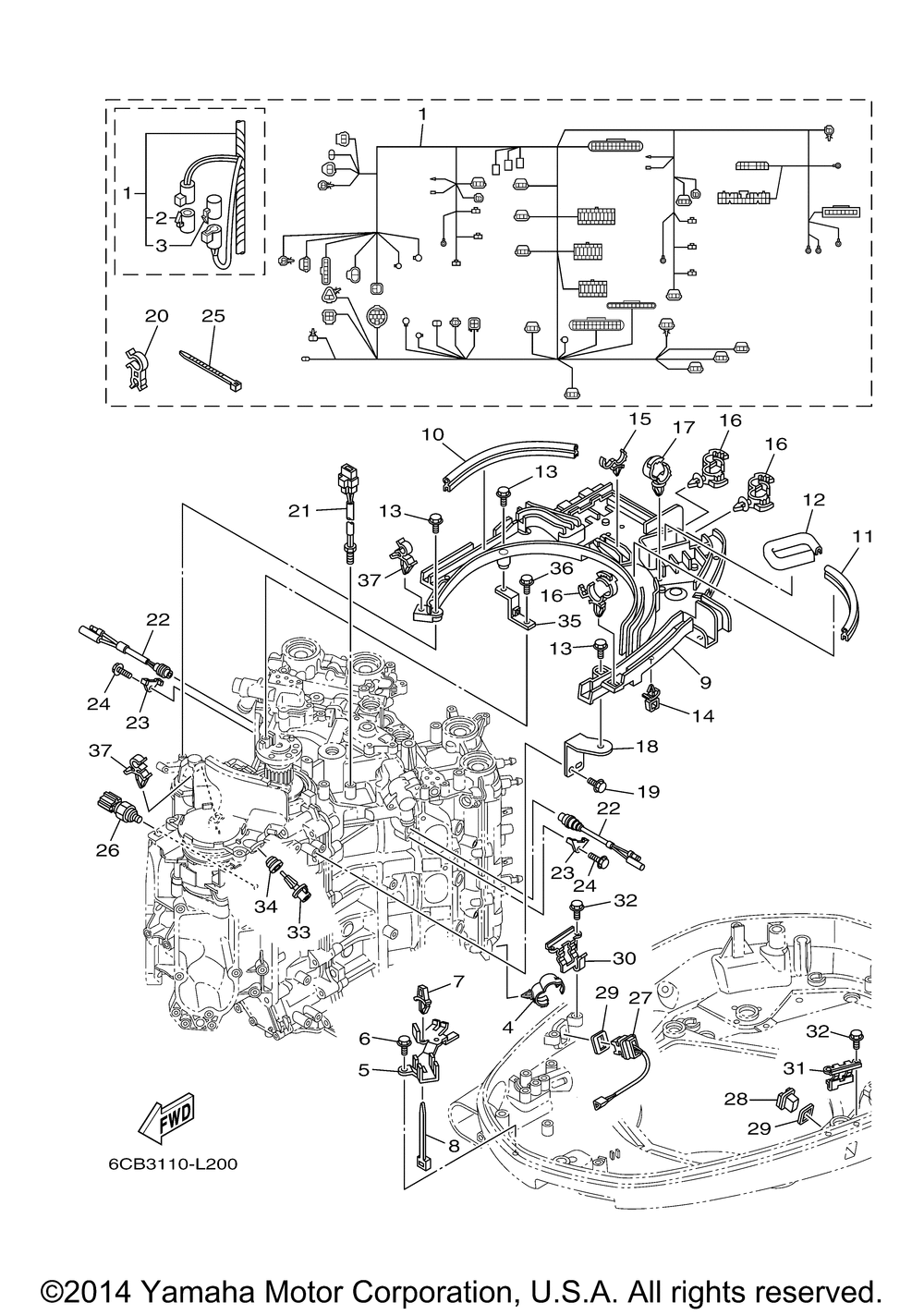

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | WIRE HARNESS ASSY | 1 | |
| 2 | . .CAP 1 (FEMALE) | 1 | |
| 3 | . .CAP 1 (MALE) | 1 | |
| 4 | CLAMP (5 per pack) | 4 | |
| 5 | CLAMP | 1 | |
| 6 | BOLT | 2 | |
| 7 | CLAMP | 1 | |
| 8 | BANDSWITCH CORD | 1 | |
| 9 | PROTECTER WIRE HARNESS | 1 | |
| 10 | DAMPER FORM | 1 | |
| 11 | DAMPER FORM | 1 | |
| 12 | SEAL | 1 | |
| 13 | BOLT | 5 | |
| 14 | CLAMP(4GY) | 1 | |
| 15 | CLAMP | 1 | |
| 16 | CLAMP(JN2) | 4 | |
| 18 | PLATE | 1 | |
| 19 | BOLT | 2 | |
| 20 | CLAMP | 1 | |
| 21 | THERMOSENSOR ASSY | 1 | |
| 22 | THERMO SWITCH ASSY | 2 | |
| 23 | PLATE | 2 | |
| 25 | BAND | 1 | |
| 26 | SENDER OIL PRESSURE | 1 | |
| 27 | TRIM & TILT SWITCH A | 1 | |
| 28 | COVER BOTTOM | 1 | |
| 29 | GASKET | 2 | |
| 30 | BRACKET | 1 | |
| 33 | SENSOR AIR TEMPERAT | 1 | |
| 34 | GROMMET | 1 | |
| 35 | HOLDER RELAY | 1 | |
| 37 | CLAMP | 2 |
