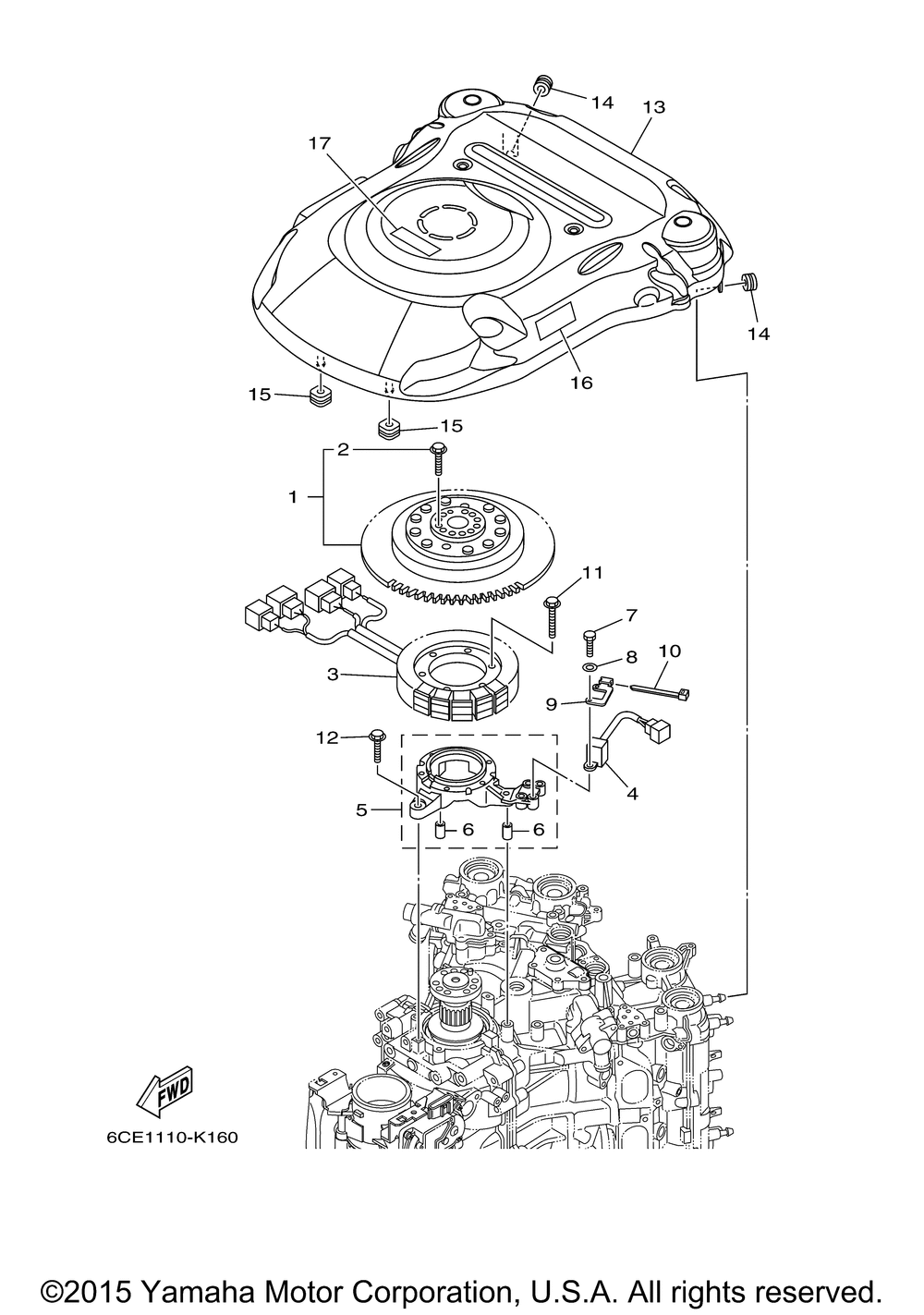

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | ROTOR ASSY WITH BOLT | 1 | |
| 2 | BOLT SET (FOR ROTOR (FOR ROTOR ASSY) | 1 | |
| 3 | STATOR ASSY | 1 | |
| 4 | COIL PULSER | 1 | |
| 5 | BASE MAGNETO | 1 | |
| 6 | PIN DOWEL | 2 | |
| 7 | BOLT | 2 | |
| 8 | WASHER (5 per pack) | 2 | |
| 9 | PULSER COIL ASSY | 1 | |
| 10 | CLAMP | 1 | |
| 11 | BOLT FLANGE | 6 | |
| 12 | BOLT | 4 | |
| 13 | COVER FLYWHEEL | 1 | |
| 14 | GROMMET (5 per pack) | 2 | |
| 15 | SPACER | 2 | |
| 16 | MARK CAUTION | 1 | |
| 17 | LABEL SAFETY | 1 |
