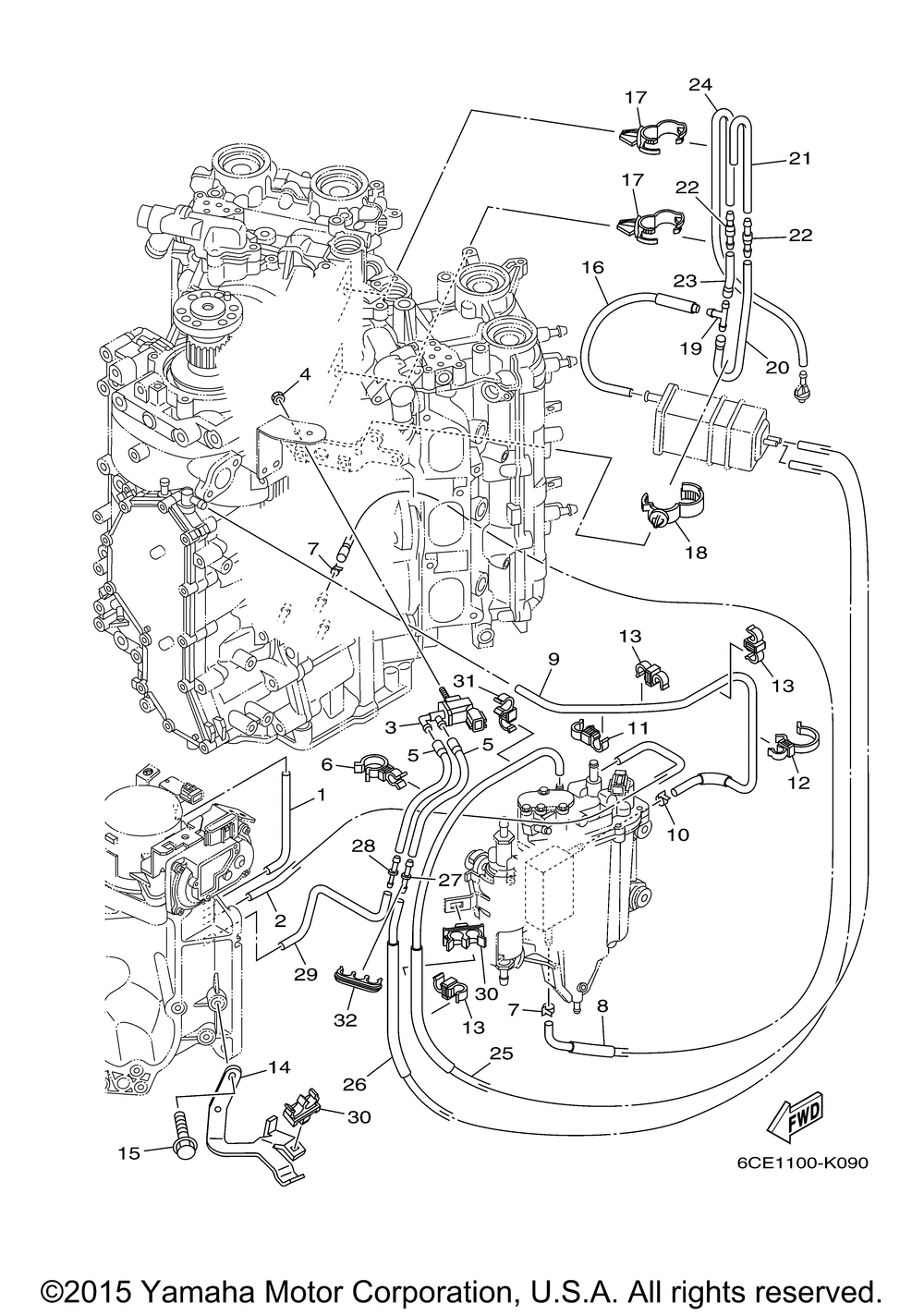

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOSE VACUUM SENSING | 1 | |
| 2 | HOSE VACUUM SENSING 3 | 1 | |
| 3 | SOLENOID VALVE ASSY | 1 | |
| 4 | NUT (5 per pack) | 1 | |
| 5 | HOSE | 2 | |
| 6 | CLAMP | 2 | |
| 7 | CLAMP | 2 | |
| 8 | PIPE 2 | 1 | |
| 9 | PIPE 4 | 1 | |
| 11 | CLAMP | 1 | |
| 12 | CLAMP | 1 | |
| 13 | CLAMP | 3 | |
| 14 | STAY | 1 | |
| 15 | BOLT | 2 | |
| 16 | HOSE 1 | 1 | |
| 17 | CLAMP (5 per pack) | 2 | |
| 18 | CLAMP(JN2) | 1 | |
| 19 | PIPEJOINT 4 | 1 | |
| 20 | HOSE 2 | 1 | |
| 21 | HOSE 3 | 1 | |
| 22 | BREATHER | 2 | |
| 23 | HOSE AIR 4 | 1 | |
| 24 | PIPE 3 | 1 | |
| 25 | PIPE 1 | 1 | |
| 26 | PIPE 3 | 1 | |
| 27 | PIPEJOINT 1 | 1 | |
| 28 | ORIFICE AIR VENT | 1 | |
| 29 | PIPE 4 | 1 | |
| 30 | CLAMP | 2 | |
| 32 | CLAMP | 1 |
