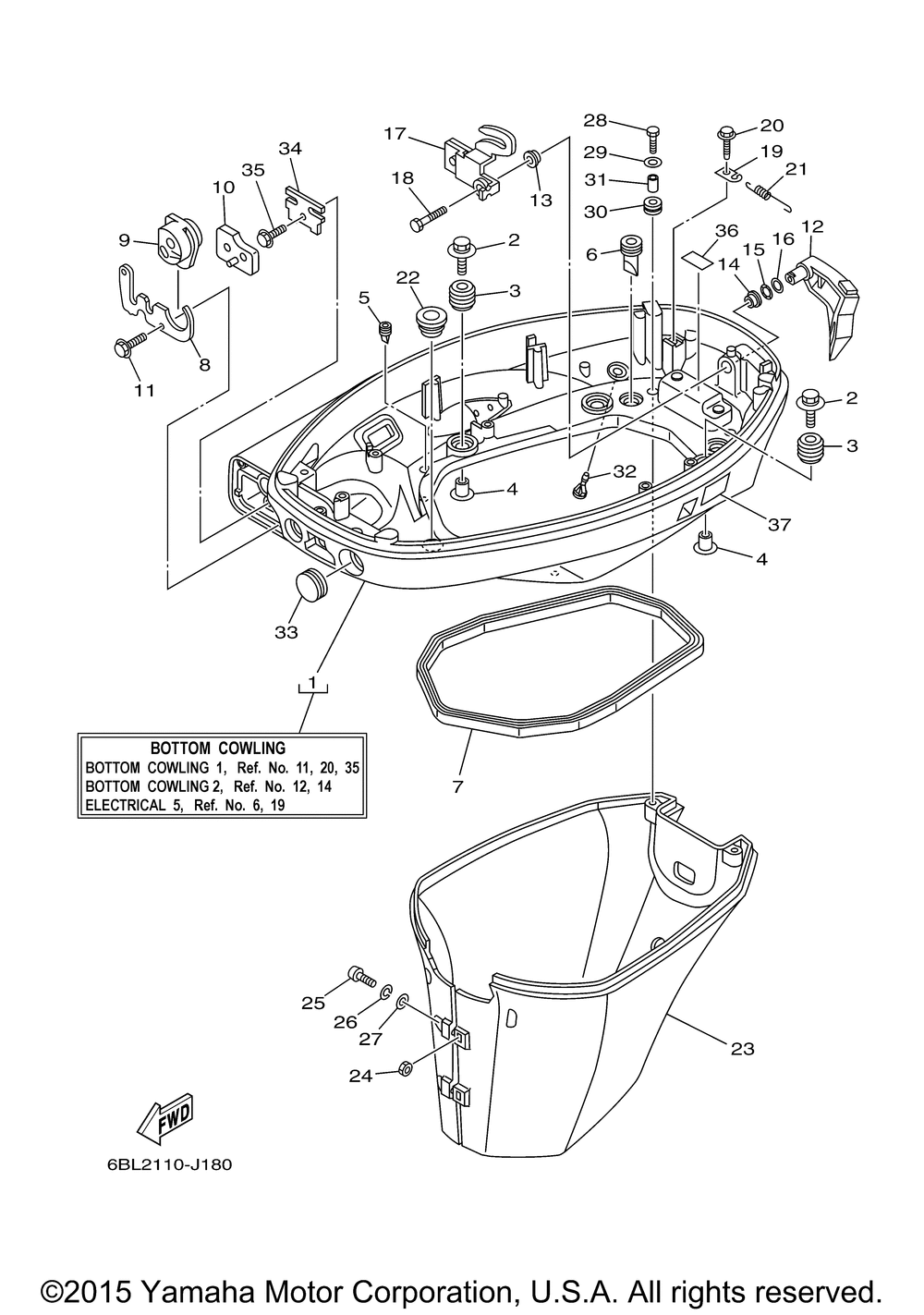

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BOTTOM COWLING ASSY | 1 | |
| 2 | BOLT W/WASHER | 4 | |
| 3 | GROMMET | 4 | |
| 4 | COLLAR | 4 | |
| 5 | RUBBER SEAL 2 | 2 | |
| 6 | RUBBER SEAL 2 | 2 | |
| 7 | RUBBER SEAL 1 | 1 | |
| 8 | . .STOPPER | 1 | |
| 9 | GROMMET | 1 | |
| 10 | . .GROMMET | 1 | |
| 11 | BOLT | 2 | |
| 12 | LEVER CLAMP | 1 | |
| 13 | BUSH | 1 | |
| 14 | BUSH | 1 | |
| 15 | WASHERWAVE | 1 | |
| 16 | WASHER PLATE | 1 | |
| 17 | LEVER CLAMP | 1 | |
| 18 | BOLT | 1 | |
| 19 | HOOK SPRING | 1 | |
| 21 | SPRING TENSION | 1 | |
| 22 | GROMMET | 1 | |
| 23 | APRON | 1 | |
| 24 | NUT (5 per pack) | 2 | |
| 25 | SCREWPAN HEAD | 2 | |
| 26 | WASHER SPRING | 2 | |
| 27 | WASHER (5 per pack) | 2 | |
| 28 | BOLT | 2 | |
| 29 | WASHER (5 per pack) | 2 | |
| 30 | GROMMET | 2 | |
| 31 | COLLAR | 2 | |
| 32 | NIPPLE HOSE | 1 | |
| 33 | . .GROMMET | 1 | |
| 34 | . .CLAMP CABLE 1 | 1 | |
| 36 | LABEL | 1 | |
| 37 | LABEL WARNING (GENE (GENERAL) | 1 |
