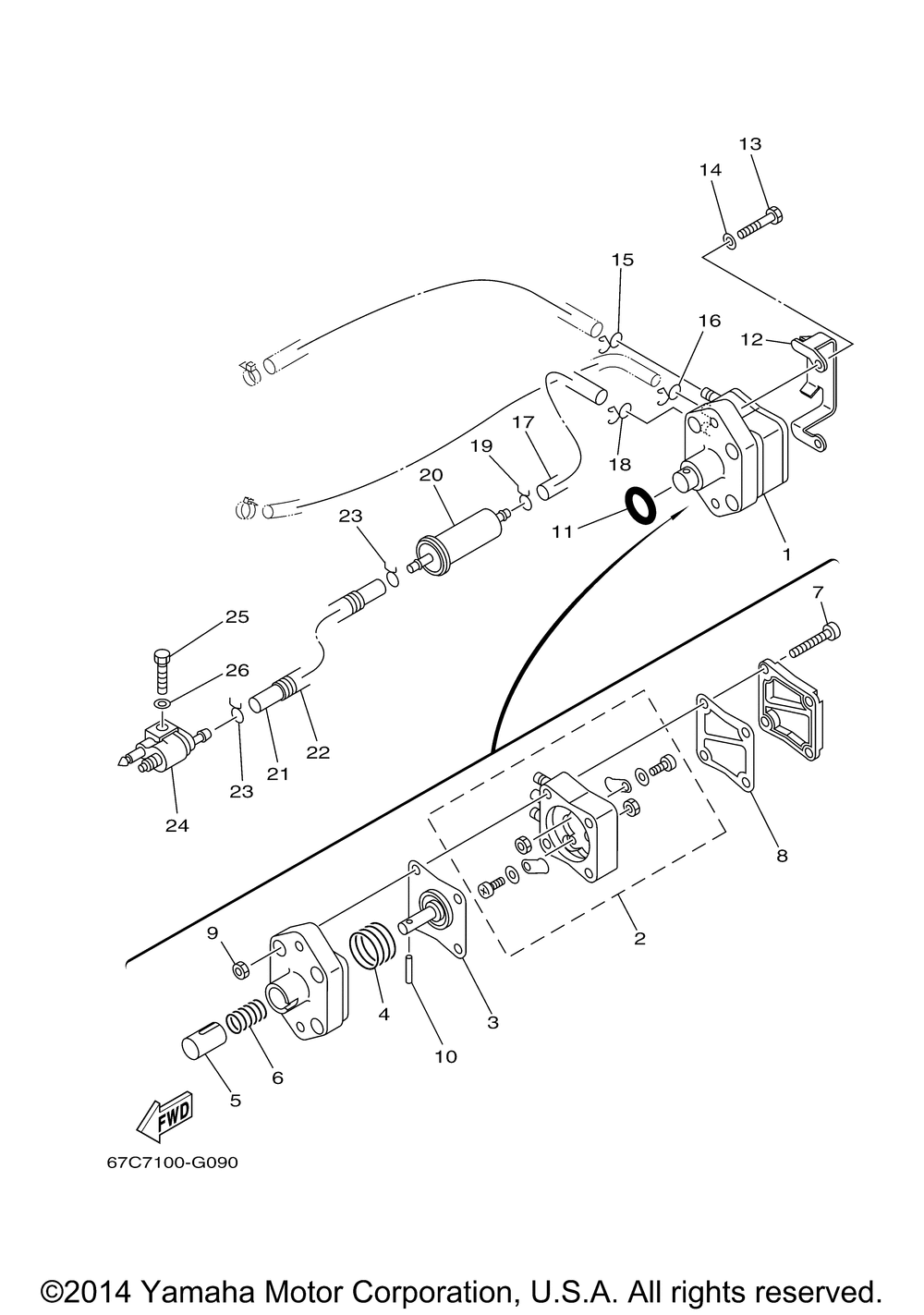

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL PUMP ASSY | 1 | |
| 2 | . .BODY 4 | 1 | |
| 3 | . .DIAPHRAGM | 1 | |
| 4 | . .SPRING DIAPHRAGM | 1 | |
| 5 | . .PLUNGER | 1 | |
| 6 | . .SPRING | 1 | |
| 7 | SCREW | 4 | |
| 8 | . .DIAPHRAGM | 1 | |
| 9 | NUT (5 per pack) | 4 | |
| 10 | . .PIN | 1 | |
| 11 | O-RING | 1 | |
| 12 | COVER | 1 | |
| 13 | BOLT | 2 | |
| 14 | WASHER (5 per pack) | 2 | |
| 15 | CLIPPIPE 1 | 1 | |
| 16 | CLIP | 1 | |
| 17 | HOSE (L180) | 1 | |
| 19 | CLIP | 1 | |
| 20 | STRAINER 1 | 1 | |
| 21 | HOSE (L430) | 1 | |
| 22 | HOSE | 1 | |
| 24 | FUEL PIPE JOINT COMP | 1 | |
| 25 | BOLT | 1 |
