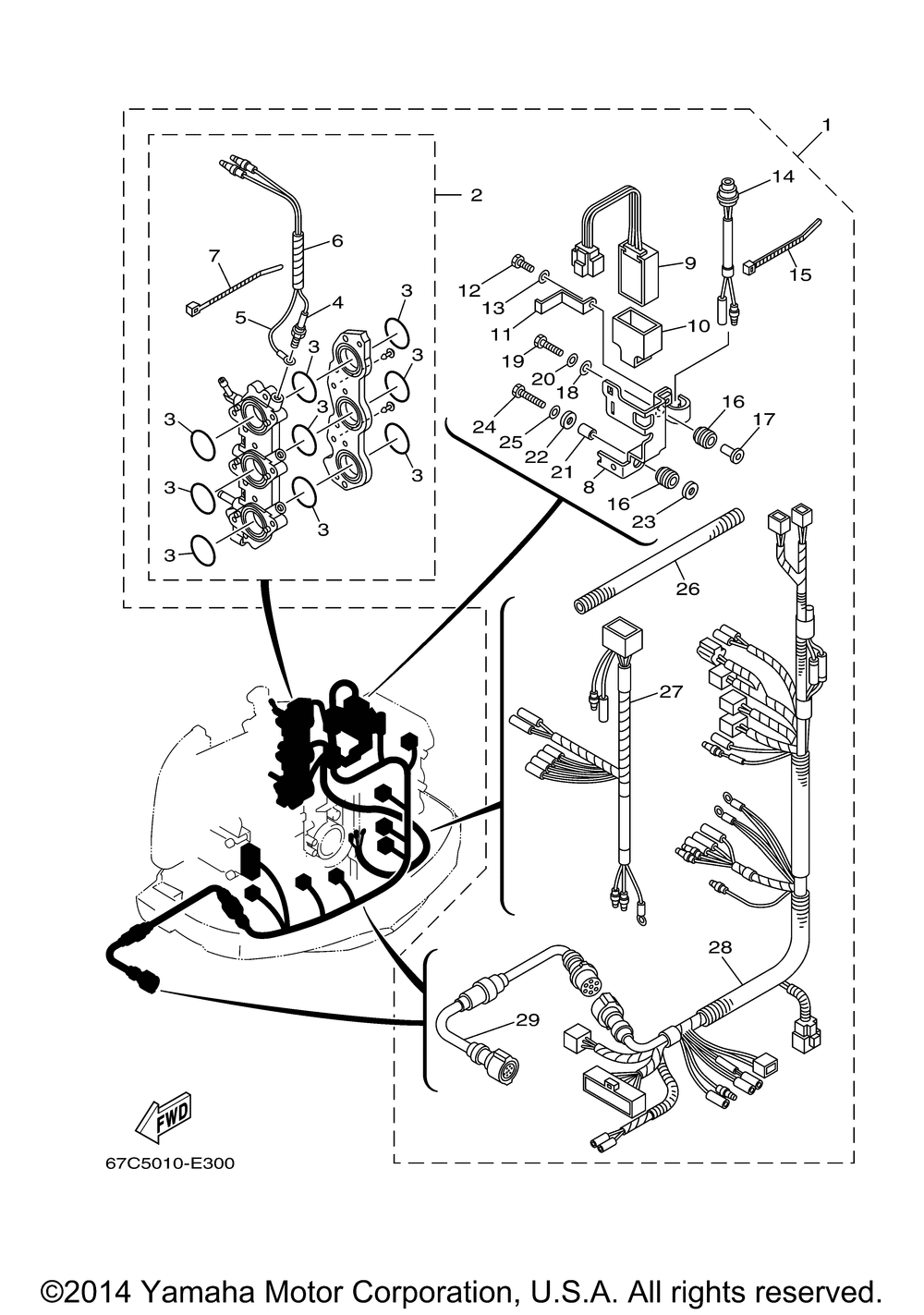

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HEATER ASSY AP | 1 | |
| 2 | CARBURETOR JOINT COM | 1 | |
| 3 | O-RING | 9 | |
| 4 | HEATER | 3 | |
| 5 | WIRE EARTH LEAD 1 | 3 | |
| 6 | HOSE (L120) | 3 | |
| 7 | CLAMP | 3 | |
| 8 | BRACKET 1 | 1 | |
| 9 | CONTROL UNIT ASSY | 1 | |
| 10 | BAND | 1 | |
| 11 | BRACKET 2 | 1 | |
| 12 | BOLT (GA1) (5 per pack) | 1 | |
| 13 | WASHER (5 per pack) | 1 | |
| 14 | THERMO SWITCH ASSY | 1 | |
| 15 | CLAMP (5 per pack) | 2 | |
| 16 | GROMMET (6K7) | 2 | |
| 17 | COLLAR | 1 | |
| 18 | WASHERPLATE | 1 | |
| 19 | BOLT | 1 | |
| 21 | BUSHING (6A5) | 1 | |
| 22 | WASHER PLATE | 1 | |
| 23 | WASHER PLATE | 1 | |
| 24 | BOLT | 1 | |
| 25 | WASHER (5 per pack) | 1 | |
| 26 | HOSE | 1 | |
| 27 | WIRE LEAD | 1 | |
| 28 | WIRE HARNESS ASSY | 1 | |
| 29 | EXTENSION WIRE HARN | 1 |
