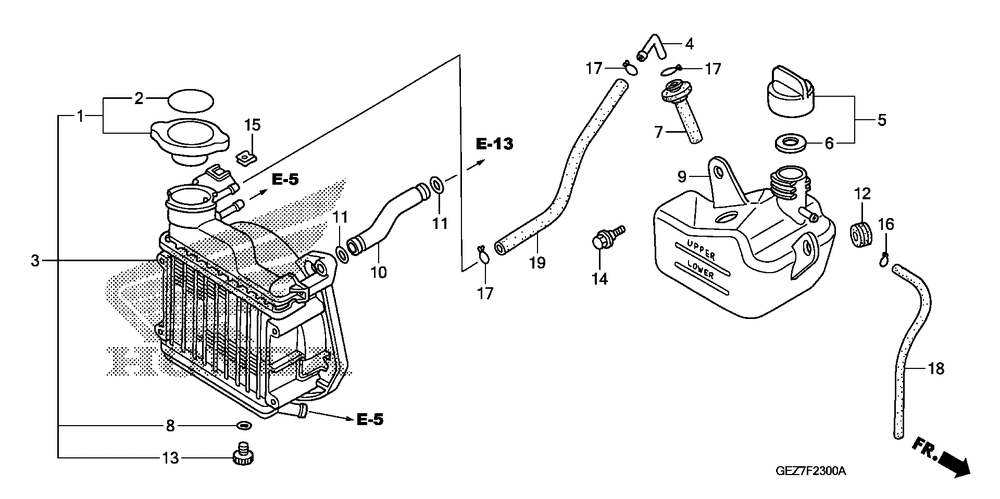

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 001 | CAP, RADIATOR | 1 | |
| 002 | LABEL, RADIATOR CAP | 1 | |
| 003 | RADIATOR ASSY. | 1 | |
| 004 | JOINT, TUBE | 1 | |
| 005 | CAP ASSY., RESERVE TANK | 1 | |
| 006 | GASKET, RESERVE TANK | 1 | |
| 007 | TUBE LEVEL | 1 | |
| 008 | SEAL DRAIN | 1 | |
| 009 | TANK RESERVE | 1 | |
| 010 | PIPE RADIATOR | 1 | |
| 011 | O-RING B | 2 | |
| 012 | RUBBER, FR. | 1 | |
| 013 | BOLT DRAIN | 1 | |
| 014 | BOLT, FLANGE (6MM) | 1 | |
| 015 | NUT, CLIP (6MM) | 1 | |
| 016 | CLIP, TUBE (B10) | 1 | |
| 017 | CLIP, TUBE (B12) | 3 | |
| 018 | BULK HOSE (5X3000) | 1 | |
| 019 | BULK HOSE, VACUUM (7.3X1000) (7.3X220) | 1 |
