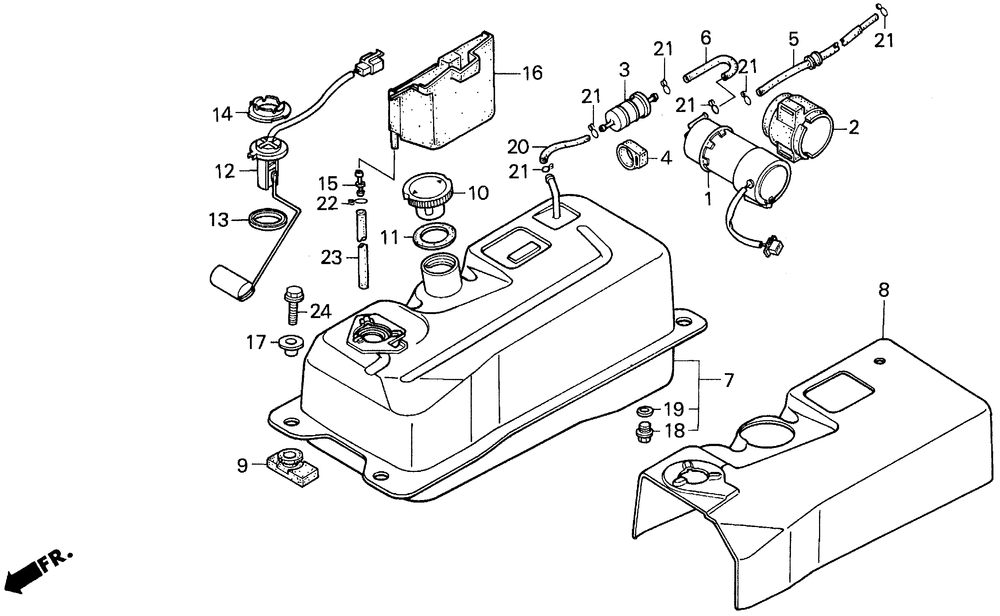

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 001 | PUMP ASSY. FUEL | 1 | |
| 002 | RUBBER | 1 | |
| 003 | FILTER, FUEL | 1 | |
| 004 | CUSHION | 1 | |
| 005 | TUBE FUEL PUMP | 1 | |
| 006 | TUBE FUEL PUMP | 1 | |
| 007 | TANK FUEL | 1 | |
| 008 | INSULATOR FUEL TANK | 1 | |
| 009 | RUBBER FUEL TANK | 4 | |
| 010 | CAP FUEL FILLER | 1 | |
| 011 | GASKET | 1 | |
| 012 | FUEL UNIT | 1 | |
| 013 | GASKET, BASE | 1 | |
| 014 | RETAINER FUEL UNIT | 1 | |
| 015 | JOINT, OIL TUBE | 1 | |
| 016 | TRAY FUEL CAP | 1 | |
| 017 | COLLAR (6.2X13) | 4 | |
| 018 | BOLT, DRAIN (12MM) | 1 | |
| 019 | Шайба | 1 | |
| 020 | BULK HOSE, FUEL (5.5X3000) (95001-550(95001-55001-60M) | 1 | |
| 021 | CLIP, TUBE (B10) | 6 | |
| 022 | CLIP, TUBE (C9) | 1 | |
| 023 | BULK HOSE, VINYL | 1 | |
| 024 | BOLT, FLANGE (6X25) | 4 |
