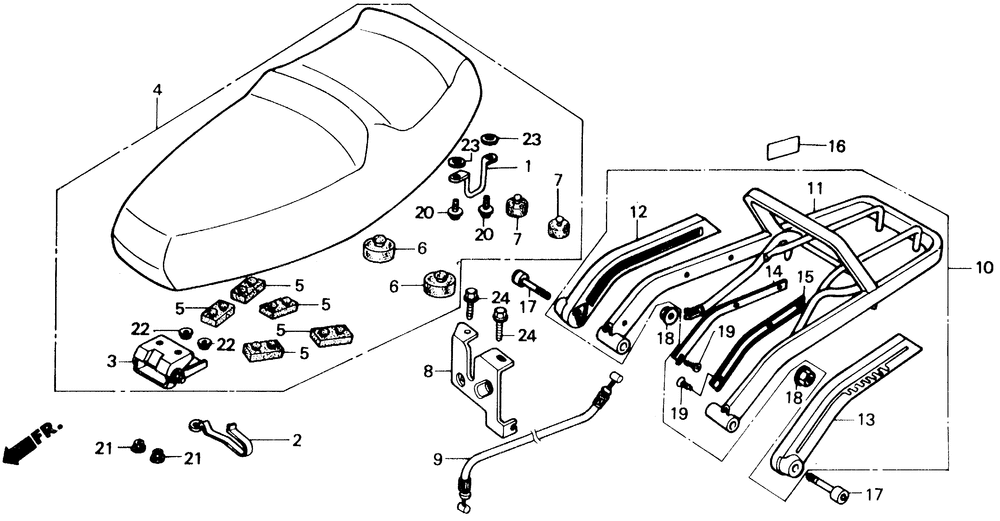

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 001 | BAR SEAT LOCK | 1 | |
| 002 | HOOK HELMET HOLDER | 0 | |
| 003 | HINGE SEAT | 1 | |
| 004 | SEAT ASSY. DOUBLE | 1 | |
| 005 | RUBBER, SEAT SETTING | 5 | |
| 006 | RUBBER, SEAT CUSHION | 2 | |
| 007 | RUBBER SEAT SETTING | 2 | |
| 008 | LOCK SEAT | 1 | |
| 009 | CABLE SEAT LOCK | 0 | |
| 010 | CARRIER LUGGAGE | 1 | |
| 012 | GRIP R. CARRIER | 0 | |
| 013 | GRIP L. CARRIER | 0 | |
| 014 | STAY R. | 0 | |
| 015 | STAY L. | 0 | |
| 016 | LABEL | 0 | |
| 017 | BOLT (8X73.5) | 2 | |
| 018 | NUT, FLG (M8X1.25) | 0 | |
| 019 | RIVET SETTING | 6 | |
| 020 | SCREW-WASHER (4X10) | 2 | |
| 021 | NUT, FLANGE (6MM) | 2 | |
| 022 | Гайка | 2 | |
| 023 | WASHER, PLAIN (4MM) | 2 | |
| 024 | BOLT, FLANGE (6X10) | 2 |
