Honda CH125 CH125 CENTER COVER@REAR COVER

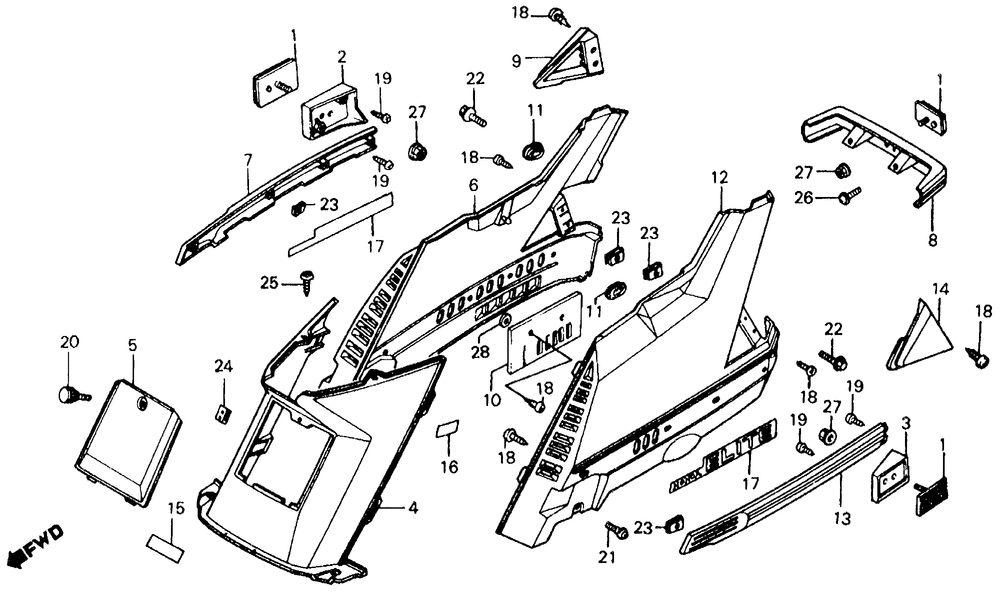

CENTER COVER@REAR COVER
№ Наименование Примечание Кол-во
001 REFLECTOR RR. 3
002 SPACER R. RR. 0
003 SPACER L. RR. 1
004 COVER CENTER *NH1* (BLACK) 0
005 COVER *NH1* (BLACK) 0
006 COVER R. RR. *R4C* (CANDY RUBY RED) 0
006 COVER R. *YR118MS* (LIGHT COPPER METALLIC-S) 0
006 COVER R. RR. *R4C* (CANDY RUBY RED) 0
006 COVER R. *YR118MS* (LIGHT COPPER METALLIC-S) 0
007 MLDG R. RR. *R4C* 0
007 MLDG R. RR. (TYPE2) 0
008 MOLDING RR. (TYPE2) 0
008 MOLDING RR. *R4C* 1
009 LOUVER R. RR. SIDE 1
010 INSULATOR RR. COVER 0
011 GROMMET, AIR CLEANER HOUSING 2
012 COVER L. RR. *R4C* (CANDY RUBY RED) 0
012 COVER L. *YR118MS* (LIGHT COPPER METALLIC-S) 0
012 COVER L. RR. *R4C* (CANDY RUBY RED) 0
012 COVER L. *YR118MS* (LIGHT COPPER METALLIC-S) 0
013 MLDG L. RR. (TYPE1) 0
013 MLDG L. *YR118MS* 0
014 LOUVER L. RR. SIDE 1
015 LABEL TIRE CAUTION 0
016 LABEL, HELMET HOLDER 1
017 EMBLEM RR. COVER 0
018 SCREW TAP (4X12) 14
019 SCREW TAP (4X16) 4
019 SCREW TAP (4X16) 4
020 BOLT COVER SETTING 1
021 SCREW (5X15) 0
022 BOLT-WASHER (8X20) 2
023 NUT, SPRING (4MM) 10
024 NUT, SPRING (5MM) 1
025 SCREW-WASHER (5X12) 2
026 SCREW-WASHER (5X16) 2
027 NUT, FLANGE (5MM) 3
028 WASHER, PLAIN (5MM) 2
