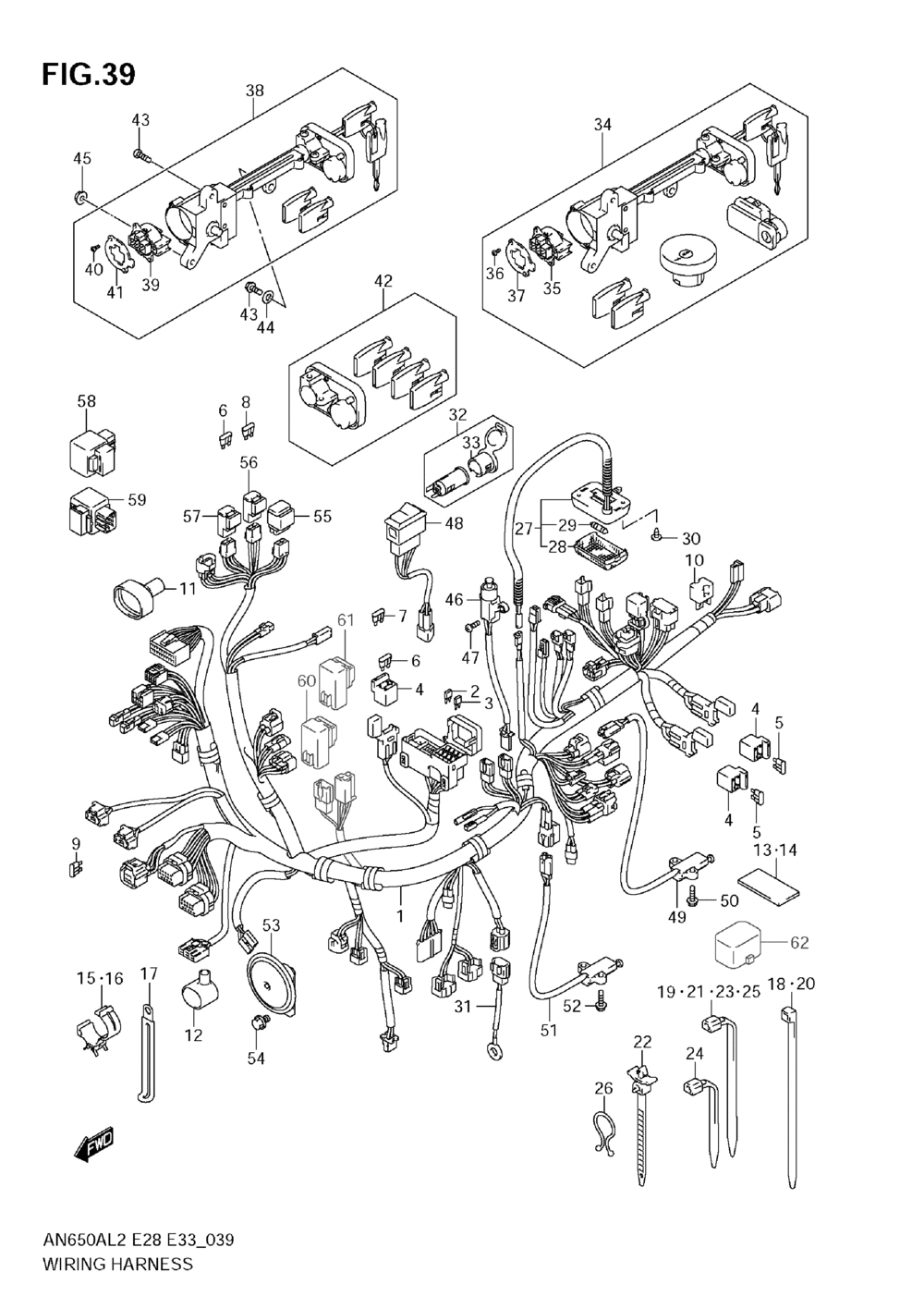

Suzuki AN650A AN650A WIRING HARNESS (AN650A L2 E28)
WIRING HARNESS (AN650A L2 E28)
№ Наименование Примечание Кол-во
2 .FUSE (10A) 3
3 .FUSE (15A) 3
4 BANDFUSE 3
5 .FUSE (40A) 4
6 FUSE 15A 6
7 Деталь 2
8 FUSE 20A 2
9 FUSE 5A 2
10 .RECTIFIER ASSY 1
11 .COVER 1
12 BOOT 1
13 PROTECTOR 1
14 PROTECTOR30X30 1
15 CLAMPWIRING HA 1
16 CLAMP 1
17 CLAMP 1
18 CLAMP (L:100) 1
19 CLAMP (L:95) 1
20 CLAMP (L:145) 3
21 CLAMP 6
22 CLAMPWATER HOS 2
23 CLAMPWIRING HA 4
24 CLAMP(L:190) 2
25 CLAMP 1
26 WIRING HARNES G 2
27 LAMP ASSY TRUNK BOX 1
28 .LENS ROOM LAMP 1
29 .BULB (12V5W) 1
31 WIREOIL PRESS 1
32 SOCKET ASSY (GRAY) 1
33 .COVER (GRAY) 1
34 LOCK SET 1
35 .SWITCH IGNITION 1
36 .SCREW IGNITION SWITCH PLATE 2
37 .PLATE IGNITION SWITCH 1
38 LOCK ASSYSTEER 1
42 SHUTTER STEERING LOCK 1
43 SCREW L: 20 2
44 WASHER 1
45 NUT 1
46 SWITCH ASSY TRUNK BOX LAMP 1
47 SCREW 2
48 SWITCH ASSY SEAT HEATER 1
49 SWITCH ASSY CENTER STAND 1
50 BOLT 2
51 SWITCH ASSY SIDE STAND 1
53 HORN ASSY 1
54 PLUGOIL DRAIN 1
55 RELAY ASSY 1
56 RELAY ASSY FUEL 1
58 RELAY ASSY 1
59 RELAY ASSY 1
60 RELAY ASSY LOW BEAM 1
62 CAPTS 1
