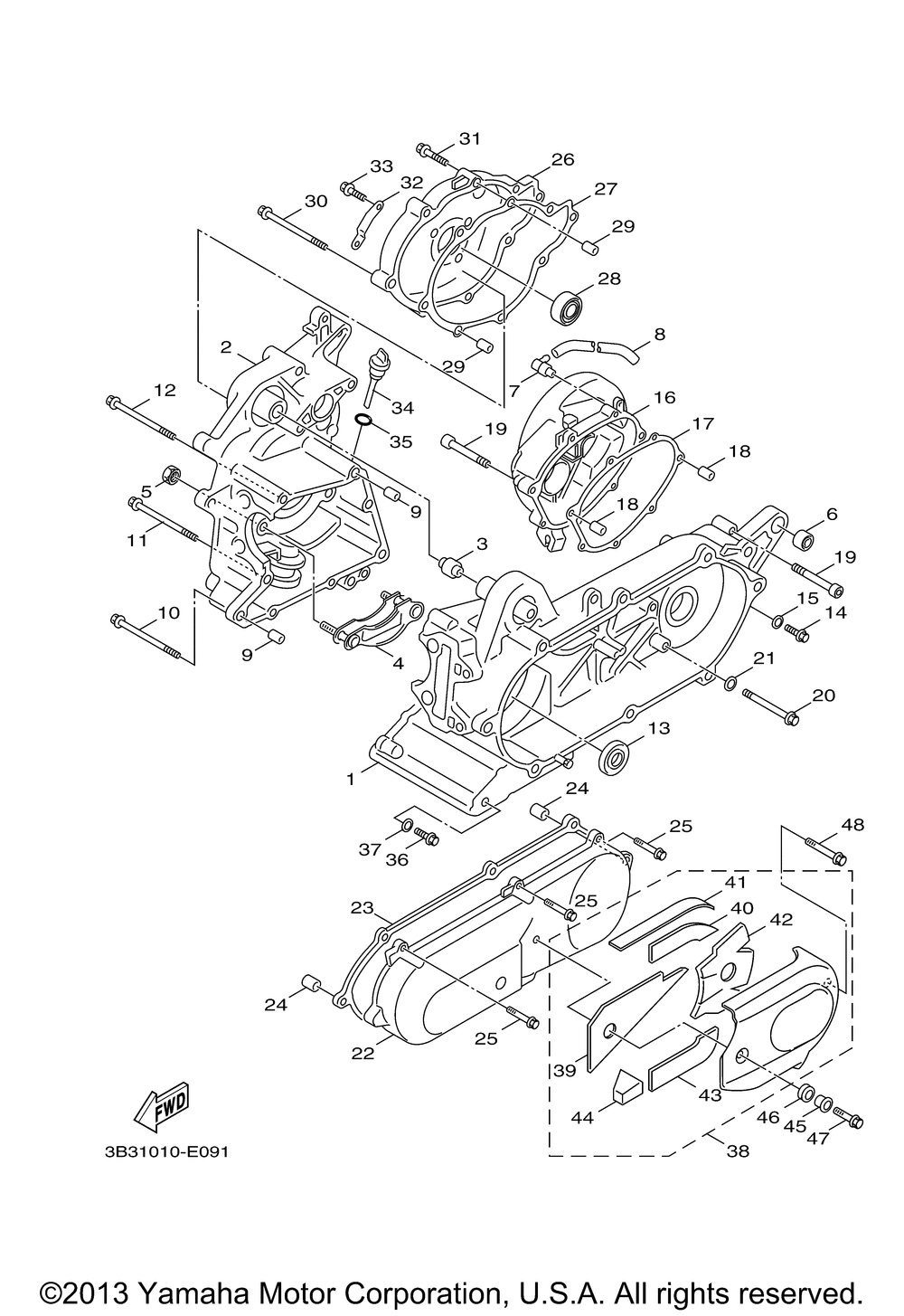

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CRANKCASE 1 | 1 | |
| 2 | CRANKCASE 2 | 1 | |
| 3 | BUSH 1 | 2 | |
| 4 | GUIDE 1 | 1 | |
| 5 | NUTU | 2 | |
| 6 | BUSH REAR SHOCK A | 1 | |
| 7 | BREATHER | 1 | |
| 8 | PIPE BREATHER | 1 | |
| 9 | PIN DOWEL | 2 | |
| 10 | BOLT SMALL FLANGE | 5 | |
| 11 | BOLT SMALL FLANGE | 2 | |
| 12 | BOLT FLANGE | 1 | |
| 13 | OIL SEAL | 1 | |
| 14 | BOLTFLANGE (JN5) | 1 | |
| 15 | Шайба уплотнительная сливной пробки | 1 | |
| 16 | COVER CRANKCASE 2 | 1 | |
| 17 | GASKET CRANKCASE | 1 | |
| 19 | BOLT SMALL FLANGE | 6 | |
| 20 | BOLTFLANGE | 1 | |
| 21 | GASKET | 1 | |
| 22 | COVER CRANKCASE 1 YB FOR S3 DPBMC | 1 | |
| 23 | GASKET CRANKCASE | 1 | |
| 25 | BOLTSMALL FLANGE | 6 | |
| 26 | COVER CAP | 1 | |
| 27 | GASKET | 1 | |
| 28 | OIL SEAL | 1 | |
| 30 | BOLTSMALL FLANGE | 6 | |
| 31 | BOLTSMALL FLANGE | 1 | |
| 32 | PLATE | 1 | |
| 33 | BOLTFLANGE(4MY) | 1 | |
| 34 | PLUG OIL LEVEL | 1 | |
| 35 | O-RING | 1 | |
| 38 | CRANKCASE COVER AS | 1 | |
| 39 | DAMPER ENGINE MOU | 1 | |
| 40 | DAMPER ENGINE MOU | 1 | |
| 41 | DAMPER 3 | 1 | |
| 42 | DAMPER 4 | 1 | |
| 43 | DAMPER 7 | 1 | |
| 44 | DAMPER 8 | 1 | |
| 45 | COLLAR | 2 | |
| 46 | GROMMET | 2 | |
| 47 | BOLT FLANGE | 1 | |
| 48 | BOLTFLANGE | 1 |
