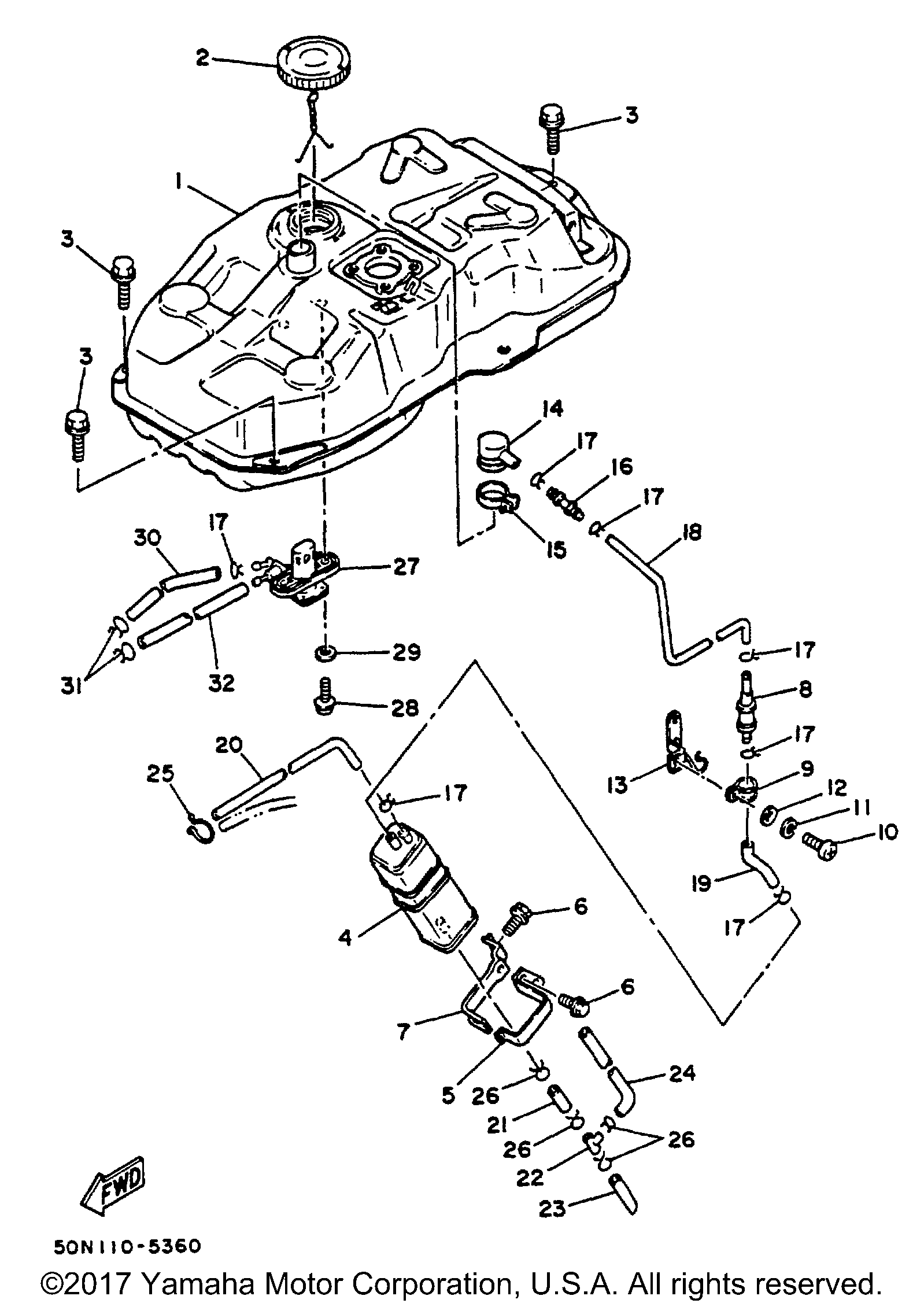

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK | 1 | |
| 3 | BOLT FLANGE | 3 | |
| 4 | CANISTER ASSY | 1 | |
| 5 | HOLDER | 1 | |
| 6 | BOLTFLANGE | 2 | |
| 7 | BRACKET CANISTER | 1 | |
| 9 | CLAMP | 1 | |
| 10 | SCREWPAN HEAD (10 per pack) | 1 | |
| 11 | WASHERSPRING (5 per pack) | 1 | |
| 12 | WASHER (5 per pack) | 1 | |
| 13 | BRACKET | 1 | |
| 14 | PIPE | 1 | |
| 15 | CLAMPHOSE | 1 | |
| 16 | BOSSCONNECTOR | 1 | |
| 17 | CLIP | 7 | |
| 18 | PIPEFUEL 1 | 1 | |
| 19 | HOSE | 1 | |
| 21 | TUBE FLEXIBLE (3NV) | 1 | |
| 22 | PIPEJOINT 1 | 1 | |
| 23 | HOSE | 1 | |
| 24 | PIPE 3 | 1 | |
| 25 | CLAMP | 1 | |
| 26 | CLIP | 4 | |
| 27 | FUEL COCK ASY 1 | 1 | |
| 28 | SCREWSPEC'L SHAPE | 2 | |
| 29 | WASHERPLATE | 2 | |
| 30 | HOSE | 1 | |
| 32 | HOSE (L850) | 1 |
