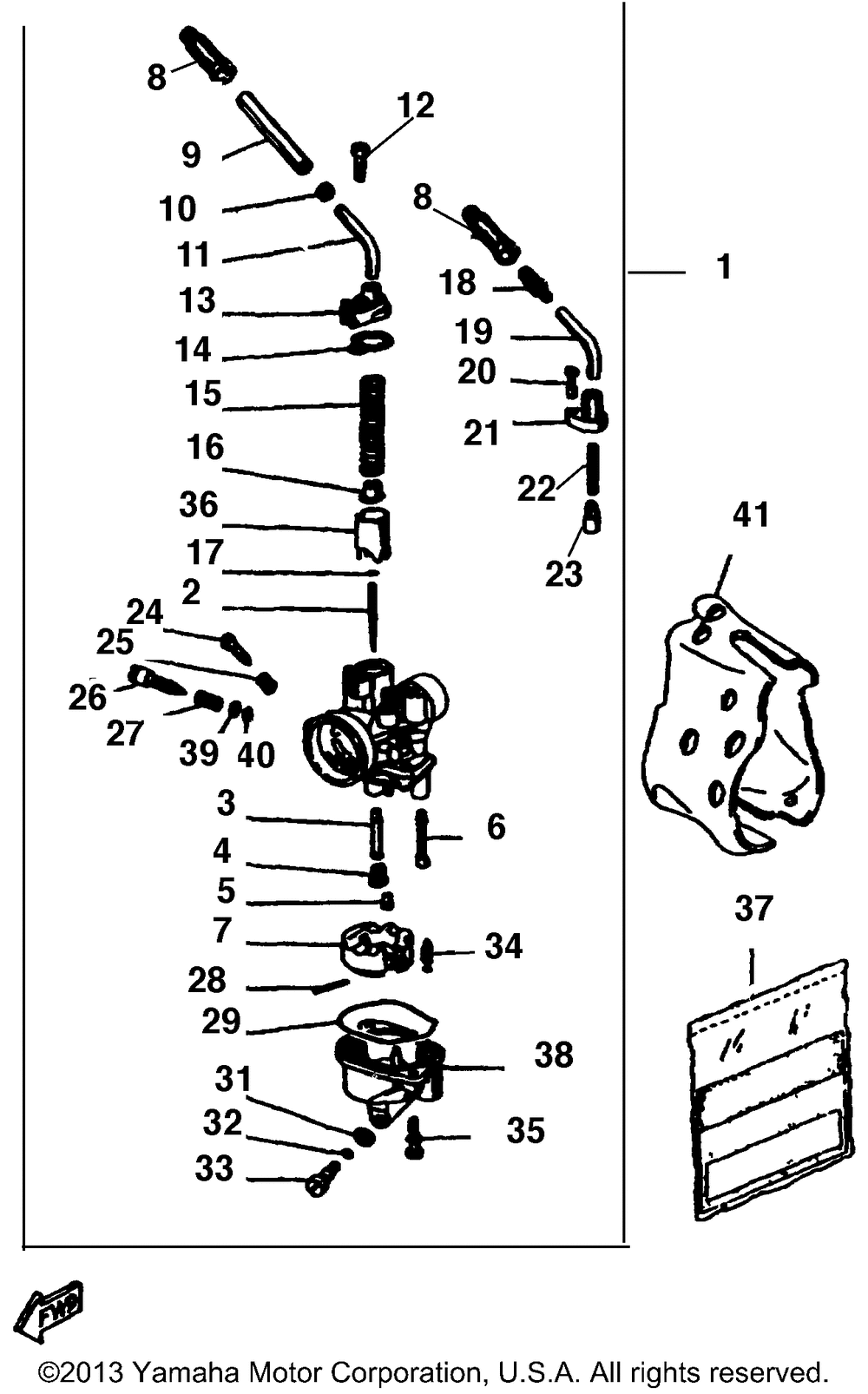

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CARBURETOR | 1 | |
| 2 | NEEDLE | 1 | |
| 3 | NOZZLE MAIN | 1 | |
| 4 | JET MAIN | 1 | |
| 5 | JETPILOT | 1 | |
| 6 | JET MAIN | 1 | |
| 7 | VALVE NEEDLE | 1 | |
| 8 | CAP RUBBER | 2 | |
| 9 | NUT CABLE ADJUSTER | 1 | |
| 10 | NUT | 1 | |
| 11 | PIPE | 1 | |
| 12 | SCREW PAN HEAD | 1 | |
| 13 | NUT | 1 | |
| 15 | SPRING THROTTLE V | 1 | |
| 16 | STOPPER | 1 | |
| 17 | CLIP | 1 | |
| 18 | SCREWCABLE ADJUST | 1 | |
| 19 | PIPE STARTER | 1 | |
| 20 | SCREW | 1 | |
| 21 | DIAPHRAGM ASSY 1 | 1 | |
| 22 | SPRING PLUNGER | 1 | |
| 23 | PLUNGER STARTER | 1 | |
| 24 | AIR SCREW | 1 | |
| 25 | SPRING AIR ADJUST | 1 | |
| 26 | THROTTLE SCREW SET | 1 | |
| 27 | SPRING THROTTLE STOP | 1 | |
| 28 | PIN FLOAT | 1 | |
| 33 | PLUGSCREW | 1 | |
| 34 | VALVE NEEDLE | 1 | |
| 35 | SCREW | 1 | |
| 36 | VALVE THROTTLE 1 | 1 | |
| 37 | GASKET KIT | 1 | |
| 38 | BODY FLOAT CHAMBER | 1 | |
| 39 | washer plain | 1 | |
| 41 | COVER CARBURETOR | 2 |
