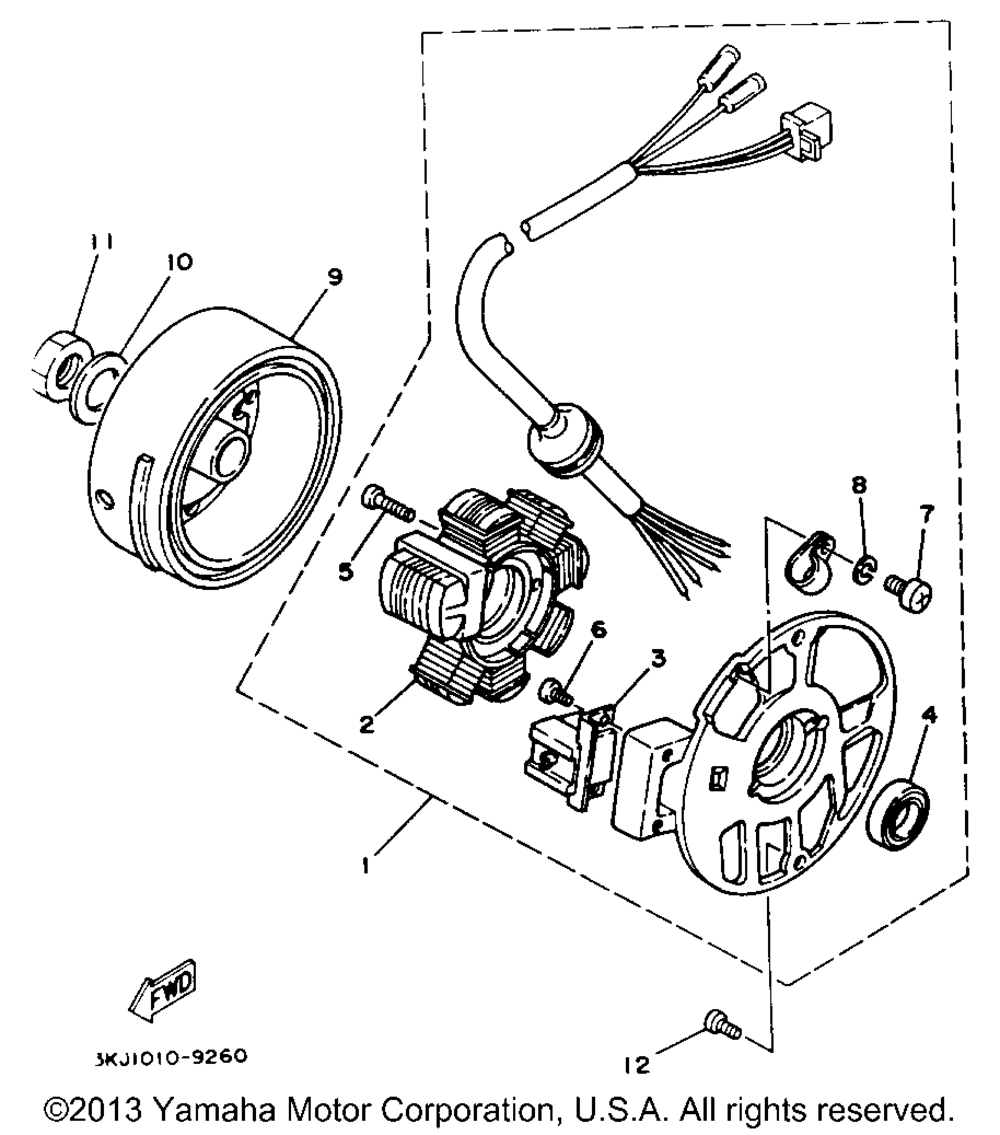

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | BASE ASSY | 1 | |
| 2 | STATOR COMP | 1 | |
| 3 | COILPULSER | 1 | |
| 4 | OIL SEALSO-TYPE | 1 | |
| 5 | SCREW PAN HEAD | 2 | |
| 6 | SCREW PAN HEAD | 2 | |
| 7 | SCREWPAN HEAD (98502-04006) | 1 | |
| 8 | WASHERSPRING (5 per pack) | 1 | |
| 9 | ROTOR ASSY | 1 | |
| 10 | WASHER (5 per pack) | 1 | |
| 11 | NUT FLANGE | 1 | |
| 12 | SCREWPAN HEAD | 2 |
