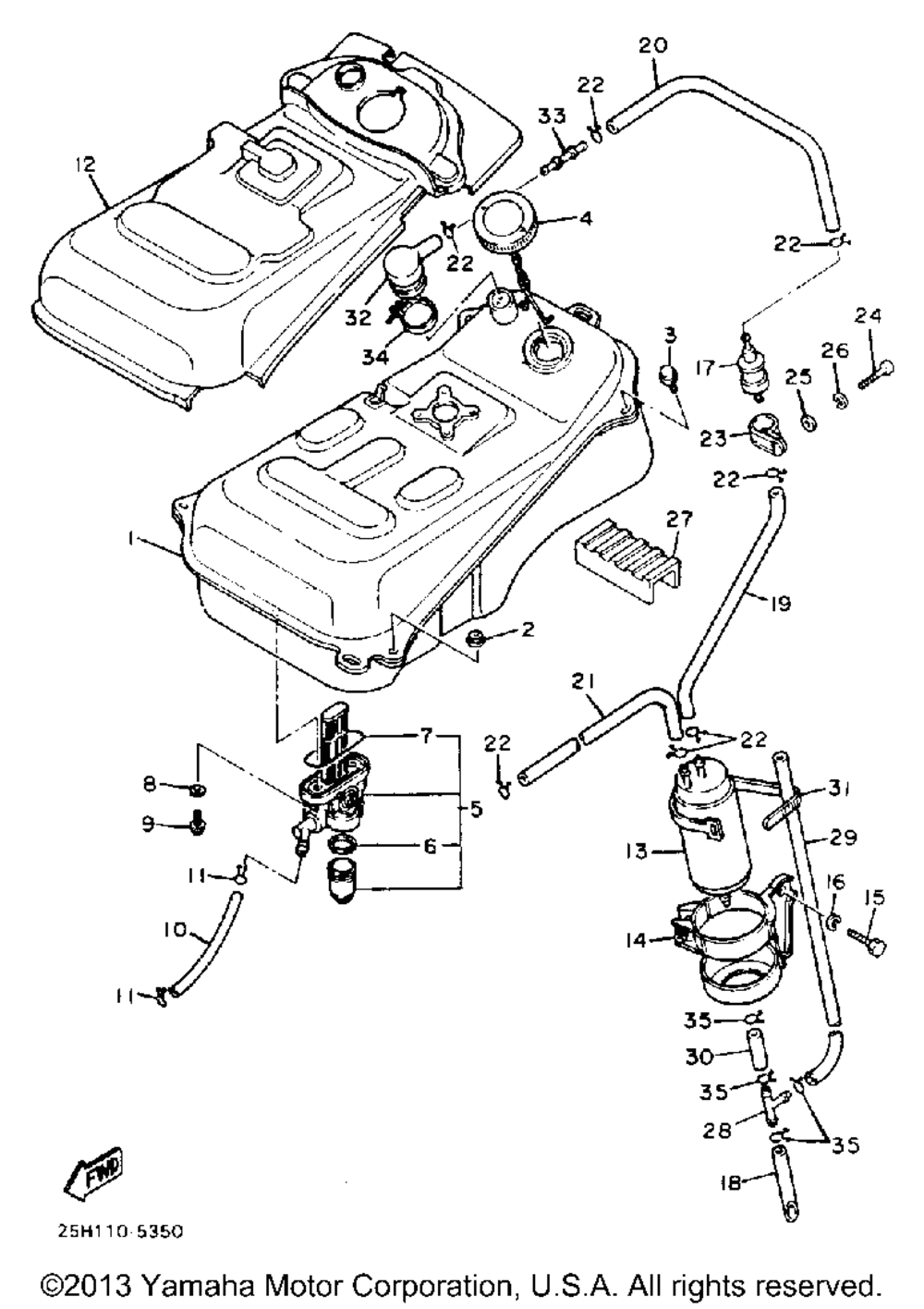

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK | 1 | |
| 2 | NUTFLANGE (4MV) | 2 | |
| 3 | BOLTWITH WASHER | 2 | |
| 4 | CAP ASSY | 1 | |
| 5 | FUEL COCK ASY 1 | 1 | |
| 6 | GASKET | 1 | |
| 7 | GASKET | 1 | |
| 8 | WASHERPLATE | 2 | |
| 9 | SCREWSPEC'L SHAPE | 2 | |
| 10 | HOSE (L166) | 1 | |
| 11 | CLIP | 2 | |
| 12 | SEATRUBBER | 1 | |
| 13 | CANISTER ASSY | 1 | |
| 14 | CANISTER HOLDER | 1 | |
| 15 | BOLT (661) | 1 | |
| 16 | WASHER (5 per pack) | 1 | |
| 17 | Клапан топливный | 1 | |
| 18 | HOSE | 1 | |
| 19 | PIPE 2 | 1 | |
| 21 | HOSE | 1 | |
| 22 | CLIP | 7 | |
| 23 | CLAMP | 1 | |
| 24 | SCREWPAN HEAD (10 per pack) | 1 | |
| 25 | WASHER PLATE | 1 | |
| 26 | WASHERSPRING (5 per pack) | 1 | |
| 28 | PIPEJOINT 1 | 1 | |
| 29 | PIPE 3 | 1 | |
| 30 | TUBE FLEXIBLE (3NV) | 1 | |
| 31 | BANDSWITCH CORD | 1 | |
| 32 | PIPE | 1 | |
| 33 | BOSSCONNECTOR | 1 | |
| 34 | CLAMPHOSE | 1 | |
| 35 | CLIP | 4 |
