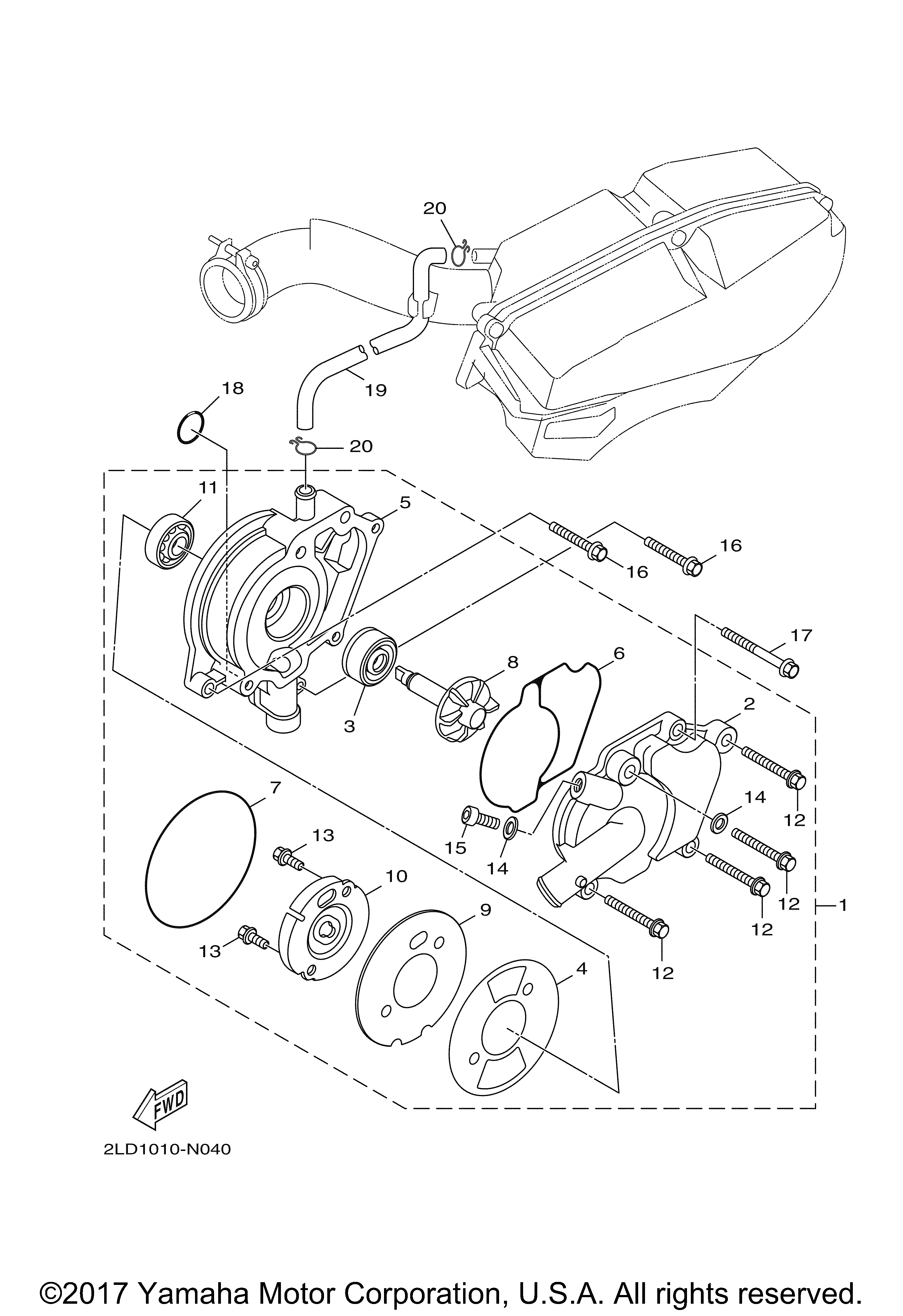

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | WATER PUMP ASSY | 1 | |
| 2 | . .COVER HOUSING | 1 | |
| 3 | OIL SEAL | 1 | |
| 4 | . .GASKET HOUSING COVER 2 | 1 | |
| 5 | . .COVER CYLINDER HEAD SIDE 3 | 1 | |
| 6 | . .GASKET WATER PUMP | 1 | |
| 7 | O-RING | 1 | |
| 8 | . .IMPELLER SHAFT ASSY | 1 | |
| 9 | . .PLATE | 1 | |
| 10 | . .PLATE | 1 | |
| 11 | BEARING | 1 | |
| 12 | BOLT FLANGE | 4 | |
| 13 | BOLT FLANGE | 2 | |
| 14 | GASKET | 2 | |
| 15 | BOLT (4MY) | 1 | |
| 17 | BOLT FLANGE | 1 | |
| 18 | O-RING (5 per pack) | 1 | |
| 19 | PIPE BREATHER 1 | 1 | |
| 20 | CLIPSCISSOR | 2 |
