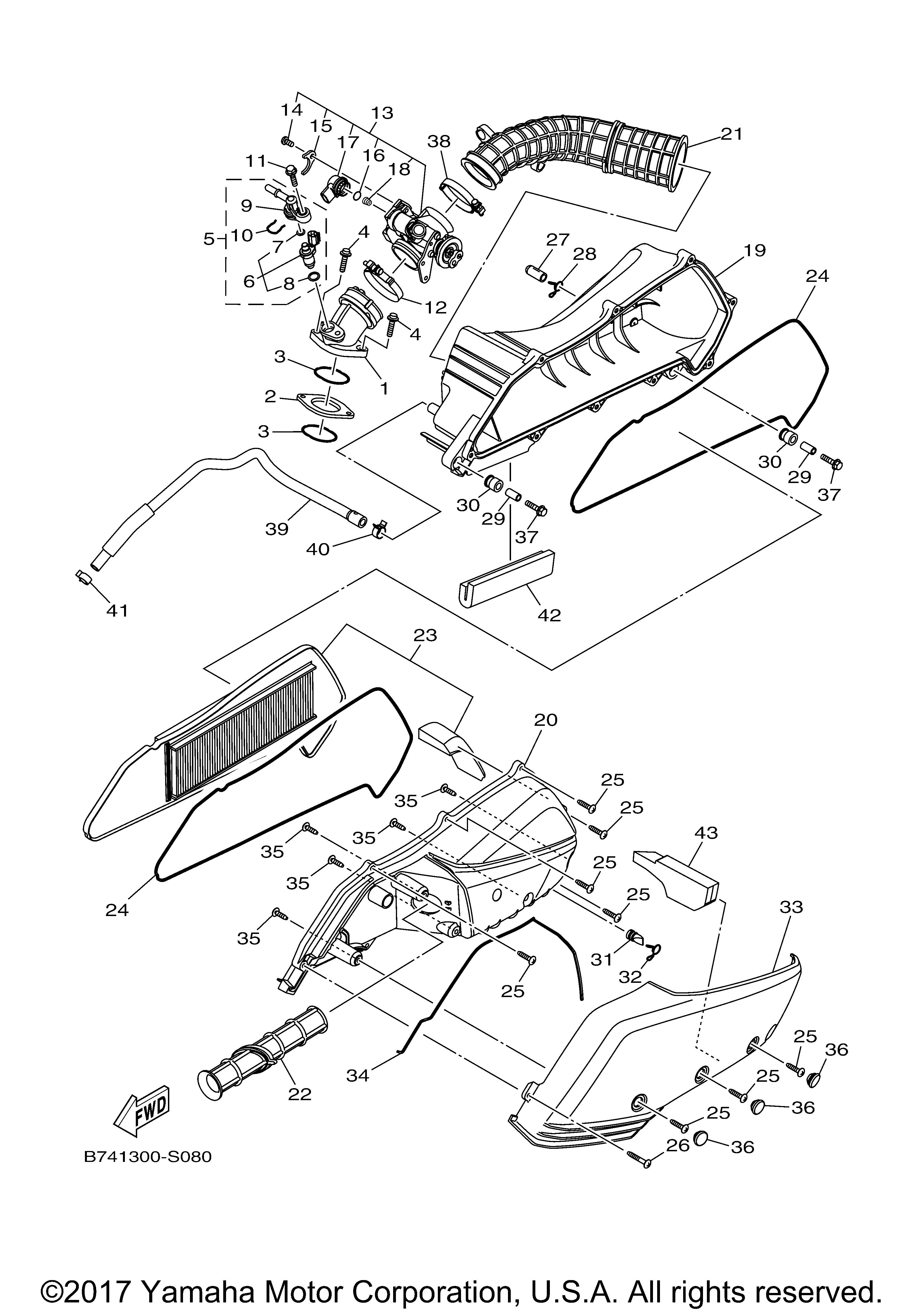

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | MANIFOLD | 1 | |
| 2 | JOINT | 1 | |
| 3 | O-RING | 2 | |
| 4 | BOLT HEXAGON SOCKET | 2 | |
| 5 | INJECTOR ASSY | 1 | |
| 6 | . .INJECTOR | 1 | |
| 7 | O-RING | 1 | |
| 8 | O-RING | 1 | |
| 9 | . ..PIPE | 1 | |
| 10 | . .CLIP | 1 | |
| 11 | BOLTFLANGE | 1 | |
| 12 | HOSE CLAMP ASSY | 1 | |
| 13 | THROTTLE BODY ASSY | 1 | |
| 14 | SCREWPAN | 1 | |
| 15 | . .PLATE | 1 | |
| 16 | O-RING | 1 | |
| 17 | . .STEPPING MOTOR | 1 | |
| 18 | . .SPRING PLUNGER | 1 | |
| 19 | CASE AIR CLEANER 1 | 1 | |
| 20 | CAP CLEANER CASE 1 | 1 | |
| 21 | FUNNEL AIR | 1 | |
| 22 | DUCT | 1 | |
| 23 | AIR CLEANER ELEMENT ASSY | 1 | |
| 24 | SEAL | 2 | |
| 25 | SCREW TAPPING | 8 | |
| 26 | SCREW TAPPING | 1 | |
| 27 | PIPE DRAIN | 1 | |
| 28 | CLIP | 1 | |
| 29 | COLLAR | 2 | |
| 30 | GROMMET | 2 | |
| 31 | PIPE DRAIN 2 | 1 | |
| 33 | COVER 1 | 1 | |
| 34 | SEAL | 1 | |
| 35 | SCREW TAPPING (5 per pack) | 5 | |
| 36 | PLUG | 3 | |
| 37 | BOLT FLANGE | 2 | |
| 38 | HOSE CLAMP ASSY | 1 | |
| 39 | PIPE BREATHER 1 | 1 | |
| 40 | CLIP (3P91) | 1 | |
| 41 | CLIP | 1 | |
| 42 | DAMPER PLATE | 1 | |
| 43 | ELEMENT 3 | 1 |
