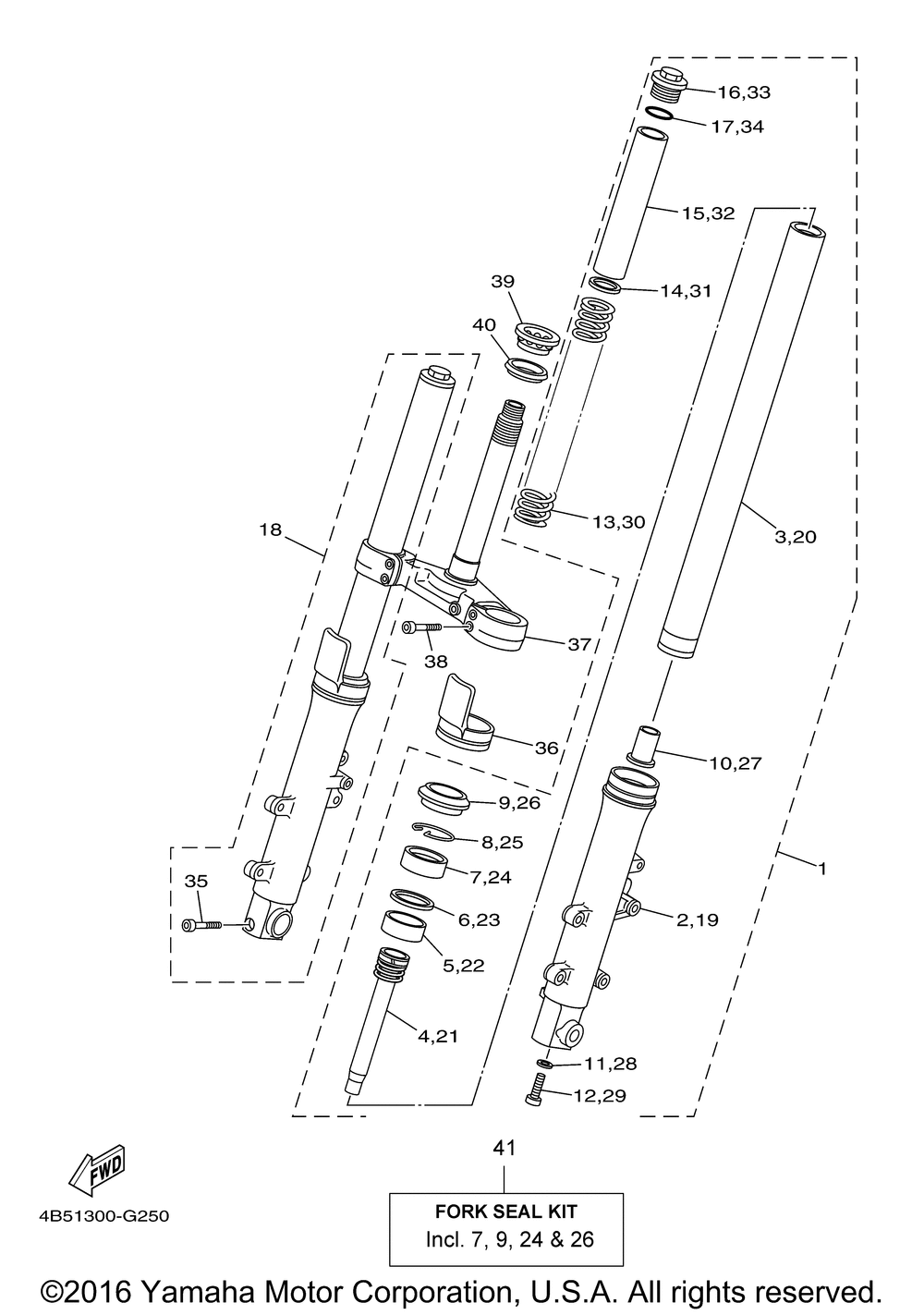

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRONT FORK ASSY (L.H (L.H) | 1 | |
| 2 | TUBE OUTER (LEFT) (LEFT) | 1 | |
| 3 | INNER TUBE COMP.1 | 1 | |
| 4 | CYLINDER COMP. FRON | 1 | |
| 5 | METAL SLIDE 1 (KYB) | 1 | |
| 6 | WASHEROIL SEAL (KYB) | 1 | |
| 7 | OIL SEAL | 1 | |
| 8 | RINGSNAP (KYB) | 1 | |
| 9 | SEAL DUST | 1 | |
| 10 | SPINDLE TAPER (KYB) | 1 | |
| 11 | GASKET (KYB) | 1 | |
| 12 | BOLT HEXAGON SOCKET | 1 | |
| 13 | SPRING FRONT FORK | 1 | |
| 14 | SEATSPRING UPPER | 1 | |
| 15 | SPACER | 1 | |
| 16 | BOLT CAP | 1 | |
| 17 | O-RING (KYB) | 1 | |
| 18 | FRONT FORK ASSY (R.H (R.H) | 1 | |
| 19 | TUBE OUTER (RIGHT) (RIGHT) | 1 | |
| 35 | BOLT (3JP) | 1 | |
| 36 | COVER | 2 | |
| 37 | UNDER BRACKET COMP. | 1 | |
| 38 | BOLT SOCKET | 4 | |
| 39 | BEARING | 1 | |
| 40 | SEALSTEERING | 1 | |
| 41 | FORK SEAL KIT | 1 |
