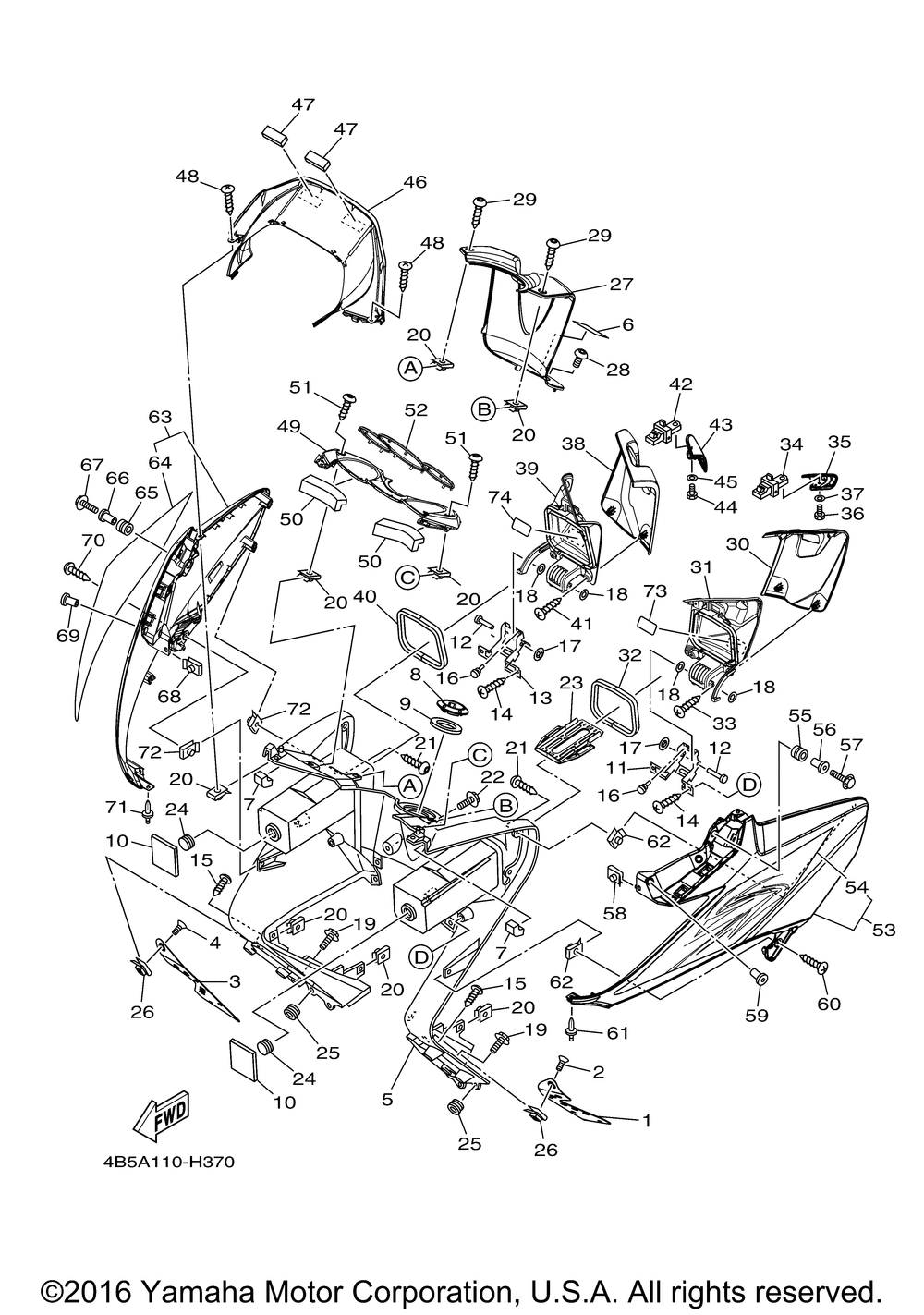

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FOOTREST 1 | 1 | |
| 2 | SCREW COUNTERSUNK | 4 | |
| 3 | FOOTREST 2 | 1 | |
| 5 | LEG SHIELD 1 | 1 | |
| 6 | LABEL CAUTION | 1 | |
| 7 | DAMPER LOCATING 2 | 2 | |
| 8 | CAP SWITCH | 1 | |
| 9 | SEAL | 1 | |
| 10 | DAMPER 2 | 2 | |
| 11 | HINGE | 1 | |
| 12 | PIN | 2 | |
| 13 | HINGE | 1 | |
| 14 | SCREW ROUND TAPPING | 4 | |
| 15 | TAPPING SCREW | 4 | |
| 16 | PLUG | 2 | |
| 17 | NUTSPRING (5 per pack) | 2 | |
| 18 | WASHER PLATE | 4 | |
| 19 | BOLT WITH WASHER | 2 | |
| 20 | NUTSPRING (5 per pack) | 16 | |
| 21 | SCREW TAPPING(4TX) | 4 | |
| 22 | BOLT WITH WASHER | 2 | |
| 23 | HOLDER | 1 | |
| 24 | PLUGSPEC'L SHAPE | 2 | |
| 25 | GROMMET | 2 | |
| 26 | NUT SPRING | 8 | |
| 27 | LEG SHIELD 2 | 1 | |
| 28 | BOLTHEX. SOCKET BUT | 1 | |
| 29 | TAPPING SCREW | 2 | |
| 30 | LID | 1 | |
| 31 | PANEL INNER 3 | 1 | |
| 32 | DAMPER | 1 | |
| 34 | LOCK ASSY | 1 | |
| 35 | KNOB 1 | 1 | |
| 37 | WASHER PLATE | 1 | |
| 38 | LID 1 | 1 | |
| 39 | PANEL INNER 4 | 1 | |
| 43 | KNOB 2 | 1 | |
| 46 | PANEL INNER 1 | 1 | |
| 47 | HOOK | 2 | |
| 49 | MOLE 2 | 1 | |
| 50 | DAMPER 3 | 2 | |
| 52 | PANEL ACCESSORY | 1 | |
| 53 | COWLING ASS'Y FOR RYC1 | 1 | |
| 54 | . GRAPHIC 1 | 1 | |
| 55 | GROMMET | 1 | |
| 56 | COLLAR | 1 | |
| 57 | BOLT FLANGE | 1 | |
| 58 | NUT SPRING | 3 | |
| 59 | NUTSPEC'L SHAPE (5 per pack) | 2 | |
| 61 | RIVET | 1 | |
| 63 | COWLING SUB ASS'Y 2 FOR RYC1 | 1 | |
| 64 | . GRAPHIC 2 | 1 | |
| 73 | LABEL CAUTION | 1 |
