Arctic Cat ZR 9000 SNO PRO RR GREEN ZR 9000 SNO PRO RR GREEN TUNNEL REAR BUMPER AND SNOWFLAP ASSEMBLY

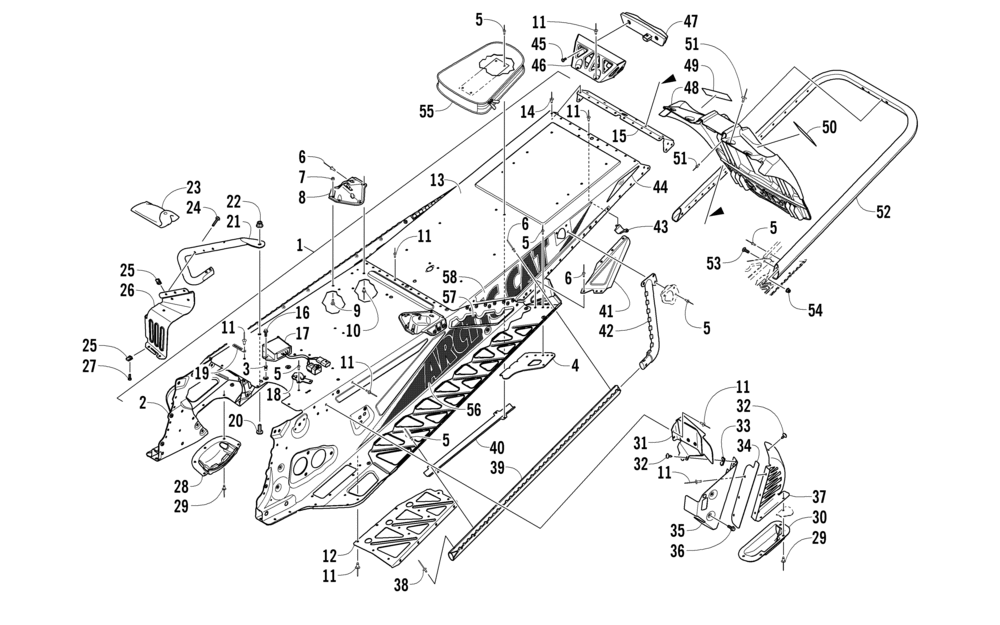

TUNNEL REAR BUMPER AND SNOWFLAP ASSEMBLY
№ Наименование Примечание Кол-во
- CHASSIS128 4STRK-RR S/P ASSY-PTD TA GRN 1
1 TUNNELHP-S/P ASSY-PTD TA GRN (inc. 2-10 and 12-14) 1
2 TUNNELFRONT-ASSY-PTD TA GRN (inc. 3-4) 1
3 INSERTM5X0.8-AL SERIES ALS4-580-3.3 (2 per pack) 2
4 BRKTREAR SUSP-OUTER-RH-PTD TA GRN 1
4 BRKTREAR SUSP-OUTER-LH-PTD TA GRN 1
5 RIVETBLIND-DH SS64 ZINC (10 per pack) 0
6 RIVET3/16 HUCK-M6 (5 per pack) 0
7 NUT M5 X 1 NYL Z&Y (8 per pack) 6
8 BRKTSPAR SUPPORT-LH-PTD TEAM ARC GRN 1
8 BRKTSPAR SUPPORT-RH-PTD TEAM ARC GRN 1
9 SCREWMACH-TSTRH M5X0.8X12 Z&Y (6 per pack) 6
10 RIVET3/16 HUCK-M5 (10 per pack) 2
11 RIVETBLIND-DH SS62 ZINC (20 per pack) 0
12 SUPPORTRUNNING BOARD-RH-PTD TA GRN 1
12 SUPPORTRUNNING BOARD-LH-PTD TA GRN 1
13 TUNNELREAR-128-PTD TA GRN 1
14 RIVET BLIND-DH SS53 ZINC (10 per pack) 0
15 END CAPTUNNEL-PTD TA GRN 1
16 SCREWCAP-HFH M5X0.8X16 CL8.8 Z&Y (4 per pack) 2
17 REGULATOR 3 PHASE-40A DC 1
18 CLIPBATTERY CABLE (2 per pack) 1
19 CLAMPWIRE - 76.14MM LG W/6.25 HOLE (2 per pack) 0
20 SCREWMACH-TSTRH M8X1.25X20 Z&Y 2
21 HOOKTOE-RH PTD BLK 1
21 HOOKTOE-LH PTD BLK 1
22 NUTHEX FLG-NYL LOCK M8X1.25 CL8 Z&Y 2
23 KITTOOL BAG-4 STRK RR-ASSY 1
24 SCREWMACH-TSPNH M5X0.8X35 CL8.8 W/2353 (3 per pack) 4
25 CLIPU-NUT (M5) (4 per pack) 8
26 TOE STOPRH-FORMED-PTD TEAM ARCTIC GRN 1
26 TOE STOPLH-FORMED-PTD TEAM ARCTIC GRN 1
27 SCREWMACH-TSPNH M5X.8X16 CL8.8 Z&Y (2 per pack) 4
28 PROTECTORCHAIN CASE 1
29 RIVET BLIND-LF SS66 BLACK (10 per pack) 9
30 PROTECTORBRAKE DISC-BOTTOM 1
31 MOUNTCLUTCH GUARD-ASSY 1
32 SCREWSELF TAP-TXSTRH tahos_10-12X5/8 TP A BL (5 per pack) 2
33 NUTU (2 per pack) 2
34 GUARDTOE-PTD TEAM ARCTIC GREEN Green 1
35 COVERSHIELD-BRAKE CALIPER 1
36 SCREWCAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 (2 per pack) 2
37 COVERSHIELD-BRAKE DISC-PTD TA GRN Green 1
38 RIVET3/16 HUCK-M4 (6 per pack) 0
39 EDGERUNNING BOARD-RH PTD TEAM ARC GRN 1
39 EDGERUNNING BOARD-LH PTD TEAM ARC GRN 1
40 PROTECTORTAILLIGHT HARNESS-128" 1
41 GUSSETRUNNING BOARD-RH-PTD TA GRN 1
41 GUSSETRUNNING BOARD-LH-PTD TA GRN 1
42 GUSSETTUNNEL-RH-PTD TA GRN 1
42 GUSSETTUNNEL-LH-PTD TA GRN 1
43 PROTECTORTAILLIGHT HARNESS-26.5mm 1
44 DECALREFLECTOR-RED 2
45 SCREWMACH-TSPNH M5X.8X12 CL8.8 Z&Y (2 per pack) 2
46 HOUSINGTAILLIGHT-PTD TEAM ARC GRN Green 1
47 TAILLIGHTRED 1
48 FLAPSNOW-MTN-BLK 1
49 DECALWARNING-TOWING/TRACK-FRENCH 1
50 DECALWARNING-TOWING/TRACK-ENGLISH 1
51 RIVETBLIND-LF SS64 BLACK (10 per pack) 6
52 BUMPERREAR-129"-PTD-BLK Black 1
53 SCREWMACH-TSTRH M6X1.0X20 Z&Y (5 per pack) 2
54 NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack) 2
55 BAGBELT 1
56 DECALTUNNEL-"ARCTIC CAT" LH 3 1
56 DECALTUNNEL-"ARCTIC CAT" RH 3 1
57 DECALTUNNEL-"ARCTIC CAT" LH 2 1
57 DECALTUNNEL-"ARCTIC CAT" RH 2 1
58 DECALTUNNEL-"ARCTIC CAT" LH 1 1
58 DECALTUNNEL-"ARCTIC CAT" RH 1 1
