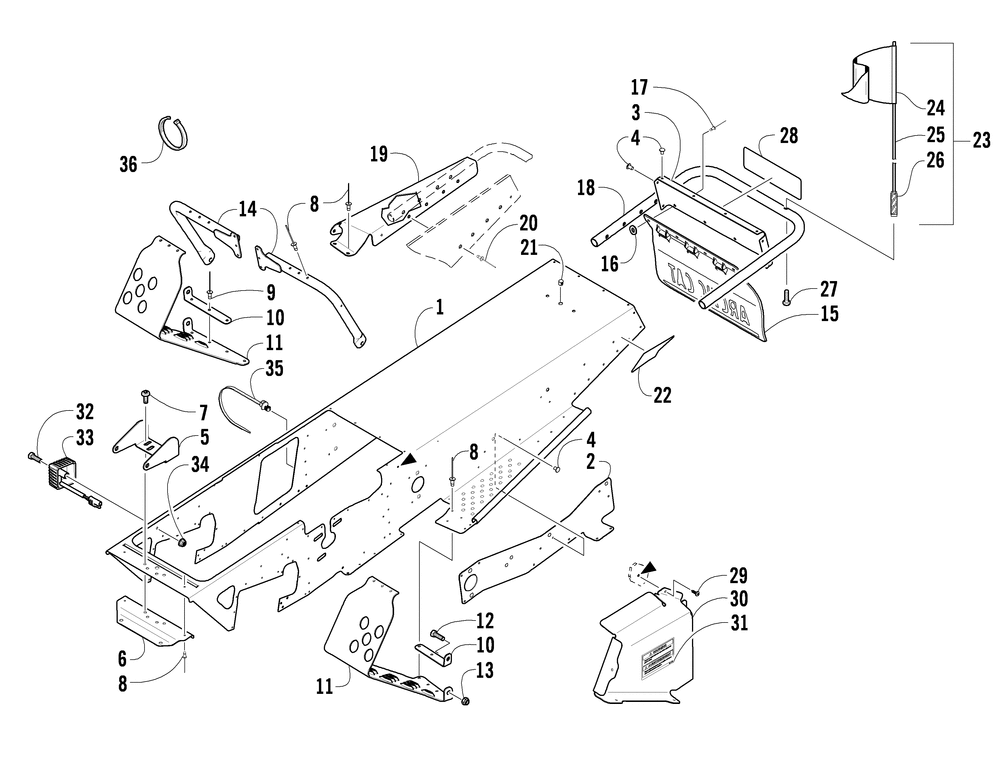

CHASSIS FOOTREST AND REAR BUMPER ASSEMBLY

№	Наименование	Кол-во
1	TUNNEL-S/P ASSY-UNPTD (inc. 2-4)	1
2	PLATETUNNEL-REINF-RH-PTD BLK	1
2	PLATETUNNEL-REINF-LH-PTD BLK	1
3	PLATECOVER-TUNNEL-PTD BLK	1
4	RIVET SOLID ALUM-.156 X.312 (10 per pack)	26
5	BRKTLOWER MTG-HOOD-PTD BLK	1
6	PLATE REINFORCEMENT-PTD BLK-120	1
7	SCREWSELF TAP-HWH 1/4-20X1/2 (4 per pack)	4
8	RIVETBLIND-DH SS53 BLK (20 per pack)	0
9	RIVETBLIND-DH SS54 BLK (10 per pack)	7
10	BRKTSUPPORT-FOOTREST-R/H-PTD BLK	1
10	BRKTSUPPORT-FOOTREST-L/H-PTD BLK	1
11	FOOTREST-RH	1
11	FOOTREST-LH	1
12	SCREWCAP-HFH 1/4-20 X 0.750 Z&Y (10 per pack)	2
13	NUTHEX THIN LOCK-NYL 1/4-20 Z&Y (10 per pack)	2
14	SUPPORT FOOTREST-PTD BLK-LH	1
14	SUPPORT FOOTREST-PTD BLK-RH	1
15	SNOWFLAP-BLACK	1
16	WASHERFLAT .194X.50X.048 (4 per pack)	4
17	RIVETBLIND-DH AA66 BLK (10 per pack)	4
18	BUMPER REAR-PTD PLATINUM-120 Platinum	1
19	CAPEND-REAR BUMPER-LH	1
19	CAPEND-REAR BUMPER-RH	1
20	RIVETBLIND-DH SS64 BLK (10 per pack)	8
21	PLUGHOLE-3/8 DIA-BLK (4 per pack)	1
22	DECAL REFLECTOR-RH	1
22	DECAL REFLECTOR-LH	1
23	FLAGSAFETY-ASSY (inc. 24-27)	1
24	FLAGSAFETY	1
26	MT ASSYSAFETY FLAG	1
27	SCREWCAP-HFH 5/16-18 X 1.25 G5 Z&Y (5 per pack)	1
28	DECAL REAR BUMPER-PNK	1
29	SCREWSELF TAP-HWH 10X1/2 AB Z&Y (2 per pack)	4
30	COVERSPROCKET-DRIVEN-PTD BLK	1
31	DECAL WARNINGGUARD	1
32	SCREWCAP-HFH 1/4-20 X 1.500 Z&Y (2 per pack)	1
33	REGULATORVOLTAGE	1
34	NUTHEX FLG-NY LOCK 1/4-20 GR F Z&Y (10 per pack)	1
35	CABLE TIEPUSH MOUNT-X MAS CLIP (5 per pack)	0
36	TIECABLE-8.5/7.5/7.4 (10 per pack)	0
