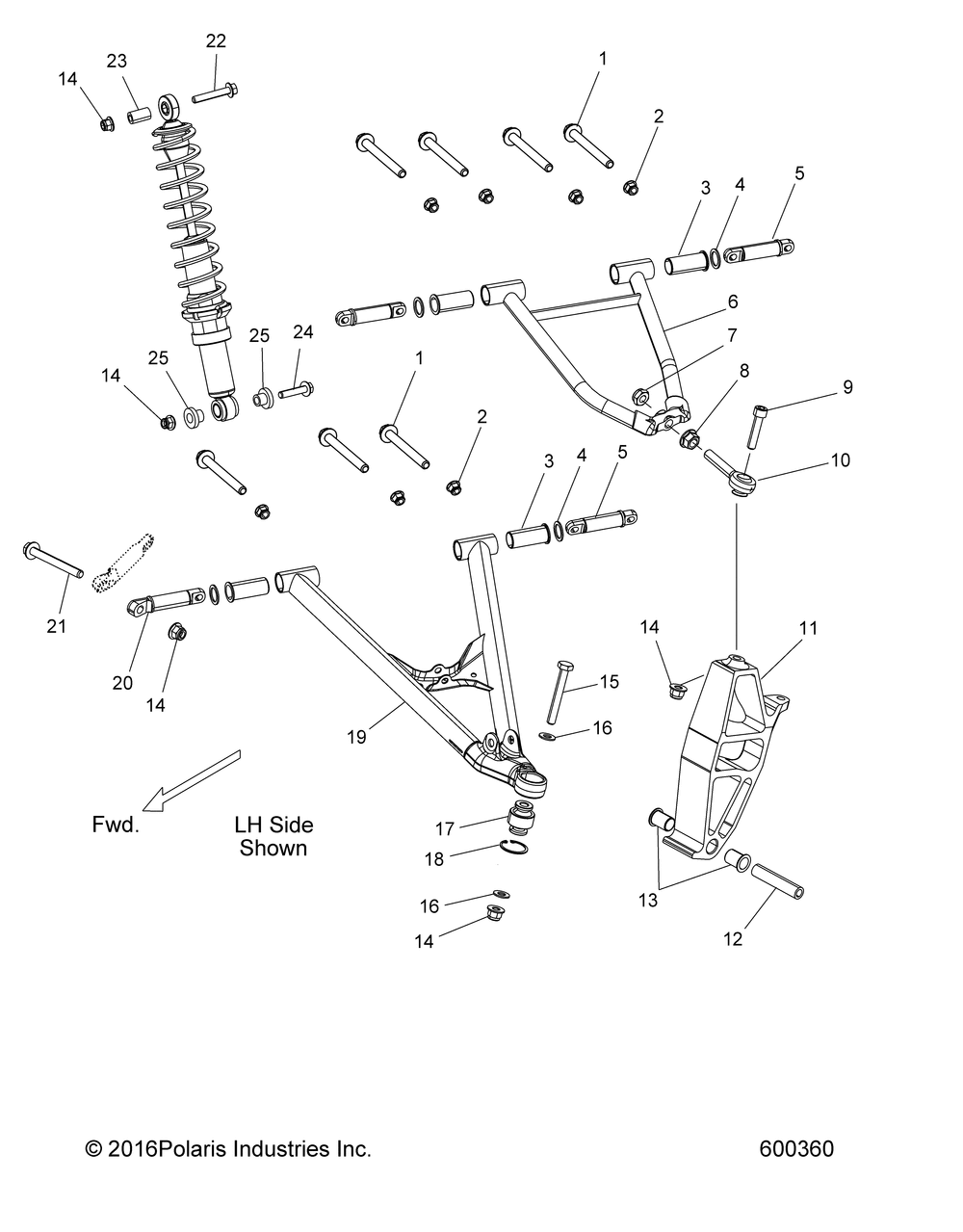

SUSPENSION CONTROL ARMS and SPINDLE - S17EEF6PSL / PEL (600360)

№	Наименование	Кол-во
1	STUD-WHEEL M8X1.25X48	14
2	NUT-M8X1.25FLGNYLOC-OLIVE D	14
3	BUSHING-PIVOT	8
4	WSHR-18.2X25.X1.6 THICK ZOD	4
5	SHAFT-PIVOT	6
6	WELD-UCA RMK LH MBLK [ALSO ORDER FASTENERS 2 AND 14]	1
6	WELD-UCA RMK RH MBLK [ALSO ORDER FASTENERS 2 AND 14]	1
7	NUT-HEX-M12X1.5 8 ZOD NYL	2
8	NUT-HXFL M12X1.5 ZOD	2
9	SCR-SH-M10X1.5X45 12.9 ZOD	2
10	ROD END-M12X2.812 30	2
11	ASM-SPINDLELH METRICRMK BJ [INCL. 13]	1
11	ASM-SPINDLERH METRICRMK BJ [INCL. 13]	1
12	BUSHING-15.88X10.13X76.20	2
13	BUSHING-SKI PIVOT	4
14	NUT-M10X1.5 HFN NYLOC ZOD	5
15	SCR-M10X1.5X75 10.9 HCS ZOD	2
16	WASHERFLAT(10) (10 per pack)	4
17	KIT-BEARING SPHERICAL LWR 10MM	2
18	RING-RETAINING1.25 ID HSNG	2
19	WELD-ARMLOWER CONTROLRMKLH [ALSO ORDER FASTENERS 2 AND 14]	1
19	WELD-ARMLCARMKRH BLK [ALSO ORDER FASTENERS 2 AND 14]	1
20	SHAFT-PIVOT LCA FRT	2
21	SCR-M10X1.5X95 HX FLG 10.9 ZOD	1
22	SCR-M10X1.5X60-8.8 HFS ZOD	2
23	BUSHING-M10X17.5X30	2
24	SCR-M10X1.5X50 8.8 HX/FL ZOD	2
25	SPACER-10.2IDX12.62OD	4
