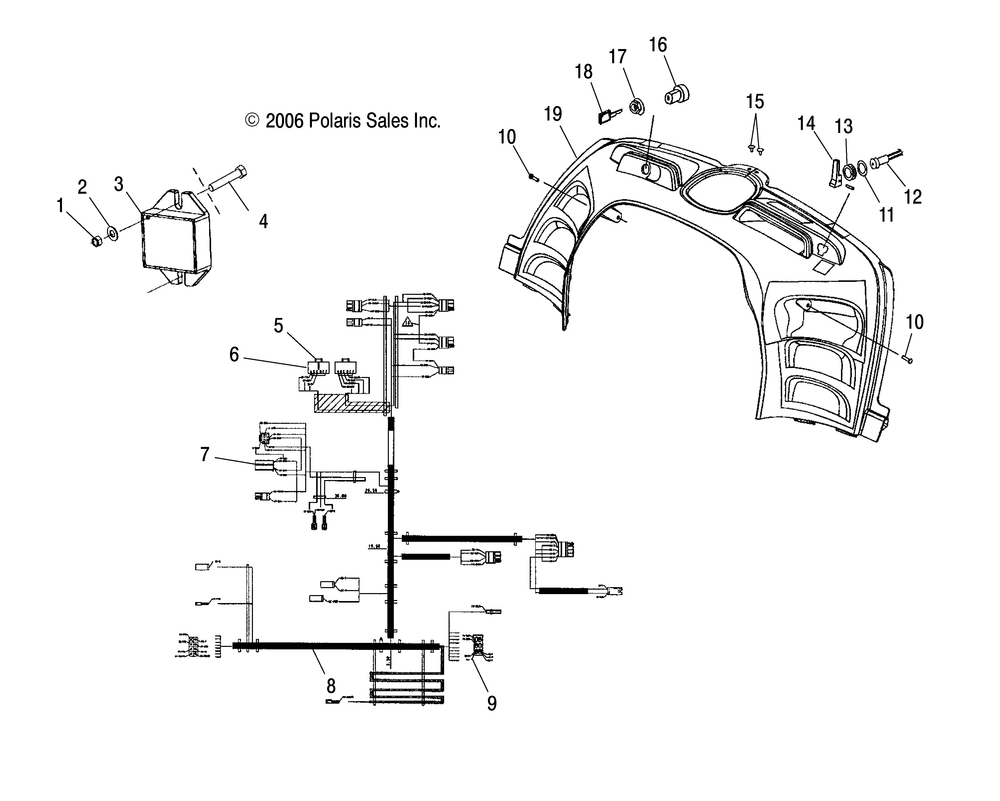

CONSOLE - S07NJ5BS / BE (49SNOWCONSOLE550LX)

№	Наименование	Кол-во
1	NUT NYLOK 10-24 Y	2
2	WASHER	2
3	REGULATOR-AC14.3V	1
4	SCREW HX/SEMS	2
5	HOUSING-CONNECTORPACtahos_12186213	2
6	SOCKET-PACKARDtahos_12047767	7
7	HOUSINGPACK	1
8	HARNESS-MAINERFS DIAG	1
9	HOUSING	1
10	SCREW(10) * (10 per pack)	2
11	WASHER-LOCK	1
12	CABLE CHOKE (TWIN)	1
13	NUT	1
14	KIT-CHOKE CONTROL [INCL. ANCHOR FLIPPER PIN]	1
15	CLIPPLASTIC DARTNYLON	2
16	KIT-IGNITION SWITCHESCOMPLT	1
17	NUTIGNITION	1
18	SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.].	1
19	CONSOLE	1
