SHOCK FRONT TRACK (WALKER EVANS) - S05MP8DS / DSA / DSB / DSC (4992569256C13)

Корзина пуста
Polaris S05MP8DS 900 FUSION S05MP8DS 900 FUSION SHOCK FRONT TRACK (WALKER EVANS) - S05MP8DS / DSA / DSB / DSC (4992569256C13)

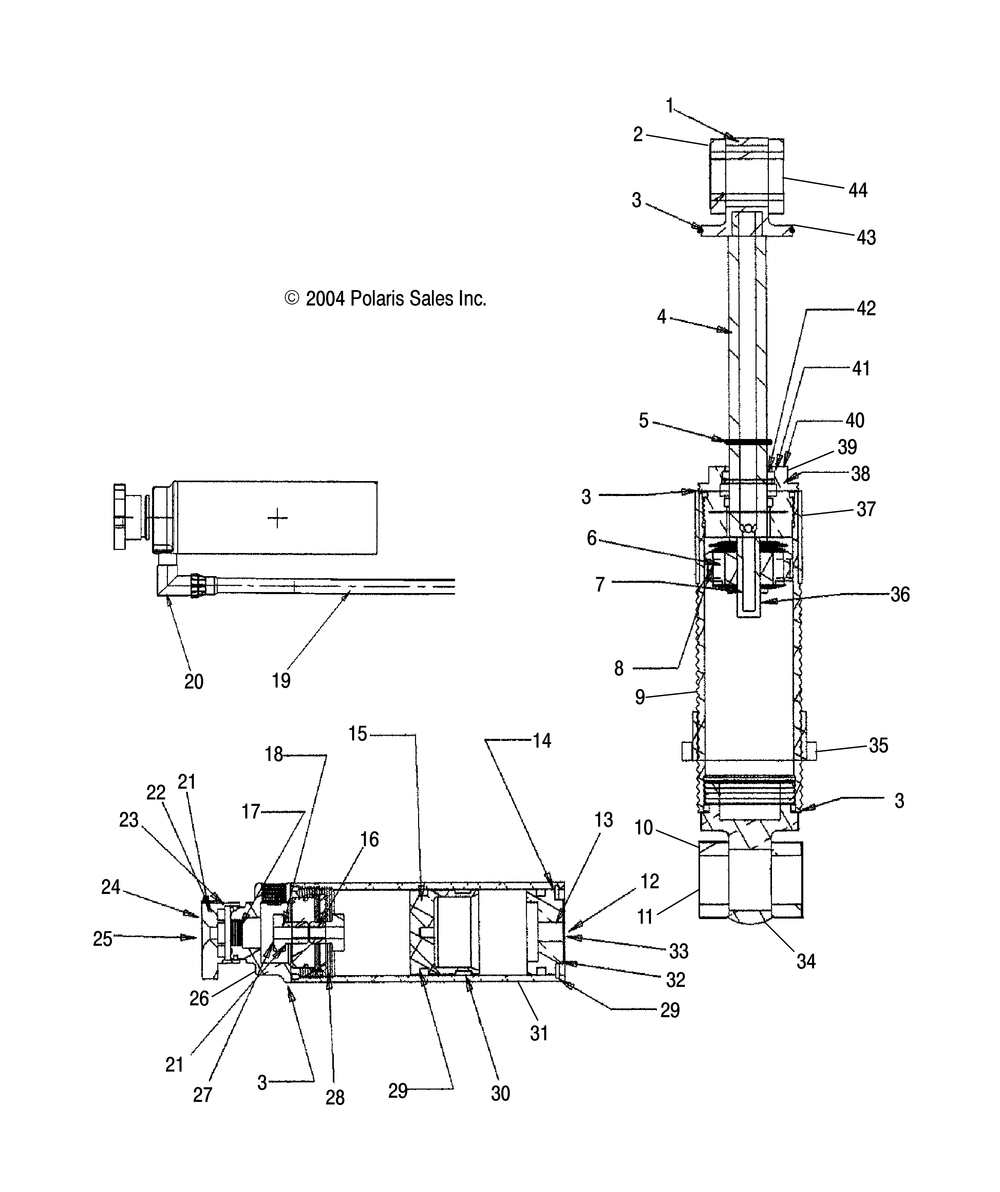

SHOCK FRONT TRACK (WALKER EVANS) - S05MP8DS / DSA / DSB / DSC (4992569256C13)
№ Наименование Примечание Кол-во
SHOCK-F/T 1
1 SUBSTITUTED BY 9999999 1
2 BUSHING/URETHANE 2
3 O-RING BODY (10) (10 per pack) 4
4 SHAFT-.62X6.5 1
5 O-RING(10) (10 per pack) 1
6 PISTON-W/BAND.067 BLUE 1
7 3/8" AN WASHER (10) (10 per pack) 1
8 WEAR BAND TEFLON (100311) 1
9 BODY-THREADED FT 1
10 SLEEVE 1.685"L 1
11 BUSHING/URETHANE 2
12 SCREW-BUTTON HEAD 8/32(10) (10 per pack) 1
13 O-RING(10) (10 per pack) 1
14 RESERVOIR SNAP RING (10) (10 per pack) 1
15 O-RING-BLEED SCREW 1
15 PISTON-RES.W/BLEED SCREW 1
15 BLEED SCREW 1
16 PISTON 1
17 O-RING(10) (10 per pack) 1
18 SHIM-VALVE .010X.700 (10) (10 per pack) 1
19 ASM-HOSE11" 1
20 FITTING 90 1
21 BALL-D-TENT(10) (10 per pack) 5
22 SPRING-D-TENT(10) (10 per pack) 2
23 O-RINGKNOB 1
24 KNOB 1
25 SCREW 1
26 HOUSING-ADJ. 1
27 SCREW W/THRU HOLE 1
28 SHIM-VALVE .015X1.300 (10) (10 per pack) 3
29 O-RING RESERVOIR (10) (10 per pack) 2
31 BODY-RESERVOIR 1
32 CAP-END 1
33 VALVE-NEEDLE 1
34 LOOP-BODY 1
35 SPRING RETAINER 1
36 3/8" CRIMP NUT (10) (10 per pack) 1
37 WEAR SLEEVE 1
38 SHAFT BUSHING 1
39 ASM-SHAFT SEAL HOUSING 1
40 O-RING SHAFT SEAL HEAD (10) (10 per pack) 1
41 SHAFT SEAL U CUP 1
42 WIPER D/TYPE 1
43 SPRING-RETAINING RING 1
44 SLEEVE 1.202"L 1
