| № | Наименование | Примечание | Кол-во |
|---|---|---|---|

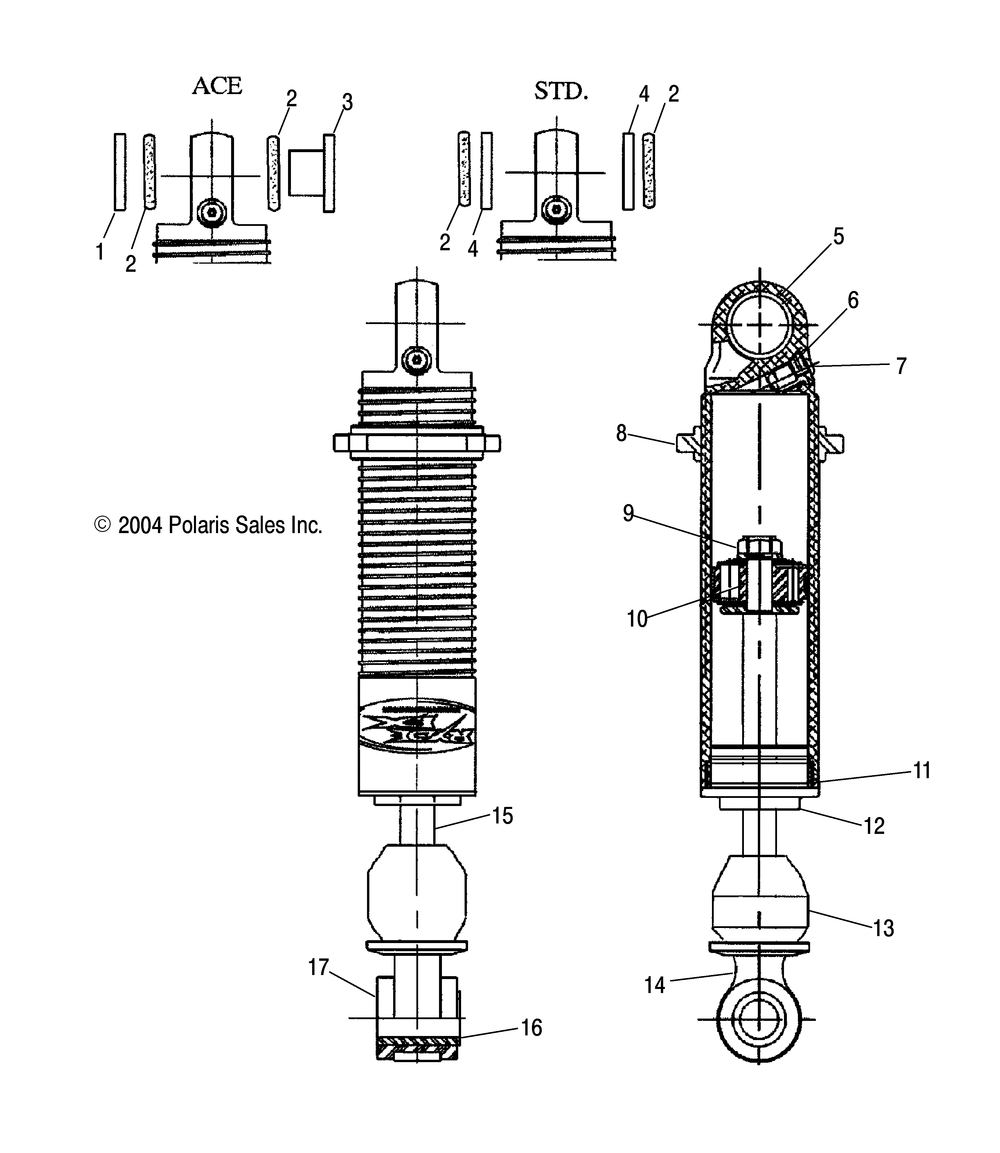

| SHOCK-REAR TRACK | 1 | ||
| 1 | BUSHING-.875X1.125X.100 | 1 | |
| 2 | O-RING (10) (10 per pack) | 2 | |
| 3 | BUSHING-FLANGE.385X.870X1.110 | 1 | |
| 4 | BUSHING(10) (10 per pack) | 2 | |
| 5 | BEARING-PLAIN.87X1.00X.625 | 1 | |
| 6 | VALVE SCREW | 1 | |
| 7 | PRESS-VALVE O-RING (10) (10 per pack) | 1 | |
| 7 | PRESS-VALVE ASSY | 1 | |
| 8 | NUTSPRING RETAINER | 1 | |
| 9 | NUT | 1 | |
| 10 | PISTON WEAR BAND | 1 | |
| 10 | TOP-OUT WASHER | 1 | |
| 10 | BACK-UP WASHER | 1 | |
| 10 | ASM.BANDED PISTON .060" ORIFCE | 1 | |
| 11 | CYL-HEAD O-RING | 1 | |
| 12 | CYL HEAD ASM 215098-100 | 1 | |
| 13 | BUMPERCOMPRESSION | 1 | |
| 14 | UPPER MOUNT | 1 | |
| 15 | SHAFT | 1 | |
| 16 | SLEEVE-.57"IDX.80"ODX1.20 | 1 | |
| 17 | BUSHING | 2 |
