Polaris S05NT6ESA 600/800 EDGE TOURING S05NT6ESA 600/800 EDGE TOURING FRONT SUSPENSION - S05NT6ESA / 6EEA / 6ESB / 6EEB / 8CS / 8CE (4992869286B01)

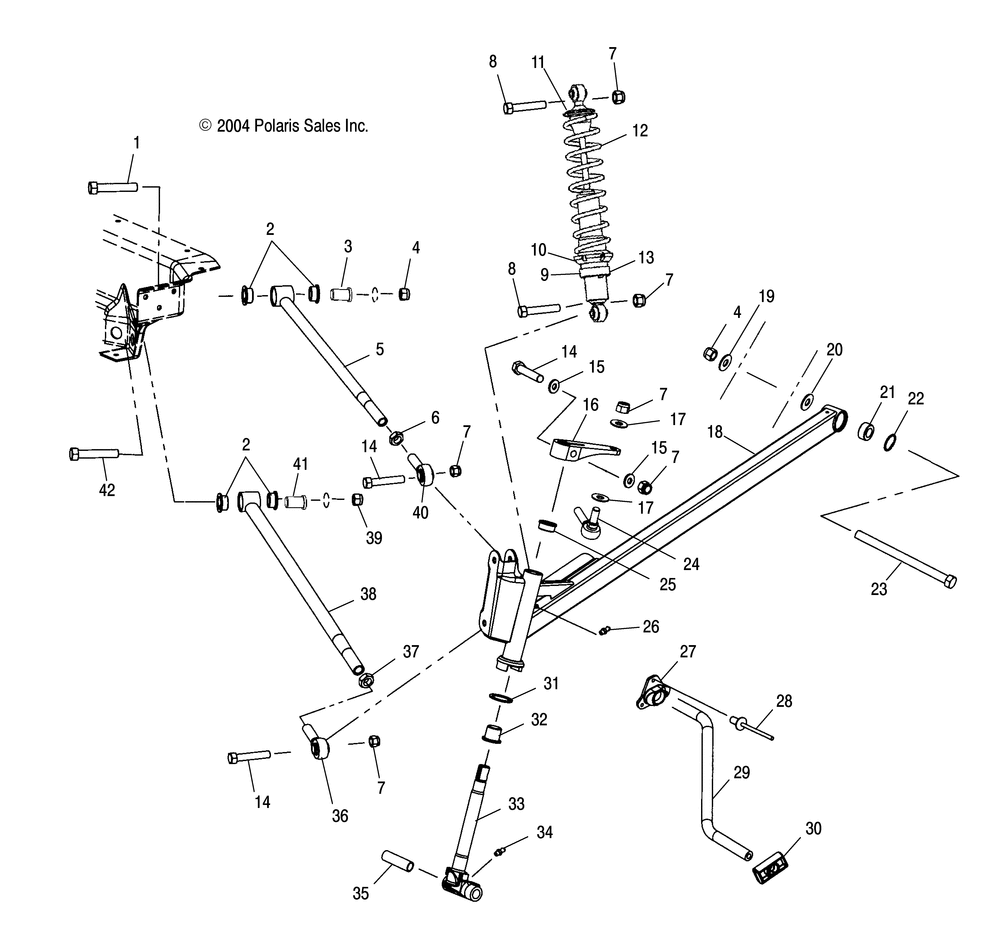

FRONT SUSPENSION - S05NT6ESA / 6EEA / 6ESB / 6EEB / 8CS / 8CE (4992869286B01)
№ Наименование Примечание Кол-во
1 BOLT-7/16-20X3.00HXCAPGR5-Y 2
2 BUSHINGPIVOTINNER 8
3 BUSHING-SHLDR.443X.750X1.215 2
4 NUT-7/16-20NYLOKY (10) (10 per pack) 4
5 WELD-RADIUS RODUPPERCLD SLV 2
6 NUTJAM(10) (10 per pack) 2
7 NUTNYLOK(10) (10 per pack) 12
8 SCREW(10) (10 per pack) 4
9 SHKGAS11.09X16.35 2
10 RINGSPRING PRELOAD ADJ. 2
11 RETAINERSPRINGSLOTTED 2
12 SPRING-COMP90/180tahos_10.65RED 2
12 SPRING-COMP90/180tahos_10.65CSLV 2
12 SPRING-COMP90/180tahos_10.65GOLD 2
13 RETAINERSPRINGBODYTHREADED 2
14 SCR-3/8-24X2 HX/CP GR5-Y-SP 6
15 WASHER 4
16 ARM-STEERINGMACHINED 2
17 WASHERFLAT 4
18 ASM-TRAILING ARMSVCCSLVRLH [Incl. 2021] 1
18 ASM-TRAILING ARMSVCCSLVRRH [Incl. 2021] 1
19 WASHERFLAT(10) * (10 per pack) 2
20 CUPTRAILING ARM MNT 2
21 BEARING-SPHERICAL7/16PLASTIC 2
22 RINGRETAINING 2
23 SCREW 2
24 ROD END-3/8PL75 2
25 BUSHING-FLANGE 2
26 FITTINGLUBRICATIONTHREADED(10 2
27 BUSHINGTORS.BAR9/16" 2
28 RIVET(50) (50 per pack) 6
29 BARTORS.9/1642.5"BLK 1
30 SLIDE-TORSION BAR9/16ANTIRATT 2
31 BUSHING(10) (10 per pack) 2
32 BUSHINGFLANGED(10) (10 per pack) 2
33 SHAFT-SPINDLEW/STEER STOPBLK 2
34 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
35 BUSHINGPIVOT 2
36 ROD ENDRADIUS1/2 2
37 NUT-JAM(10) (10 per pack) 2
38 WELD-RADIUS RODLOWERCLD SLV 2
39 NUT-1/2-20NYLOKY 2
40 ROD ENDRADIUS7/16 2
41 BUSHING-SHLDR.505X.750X1.215 2
42 BOLT 2
