SUSPENSION REAR - S05MX4CS / CE (4992589258B10)

Корзина пуста
Polaris S05MX4CS 440 IQ S05MX4CS 440 IQ SUSPENSION REAR - S05MX4CS / CE (4992589258B10)

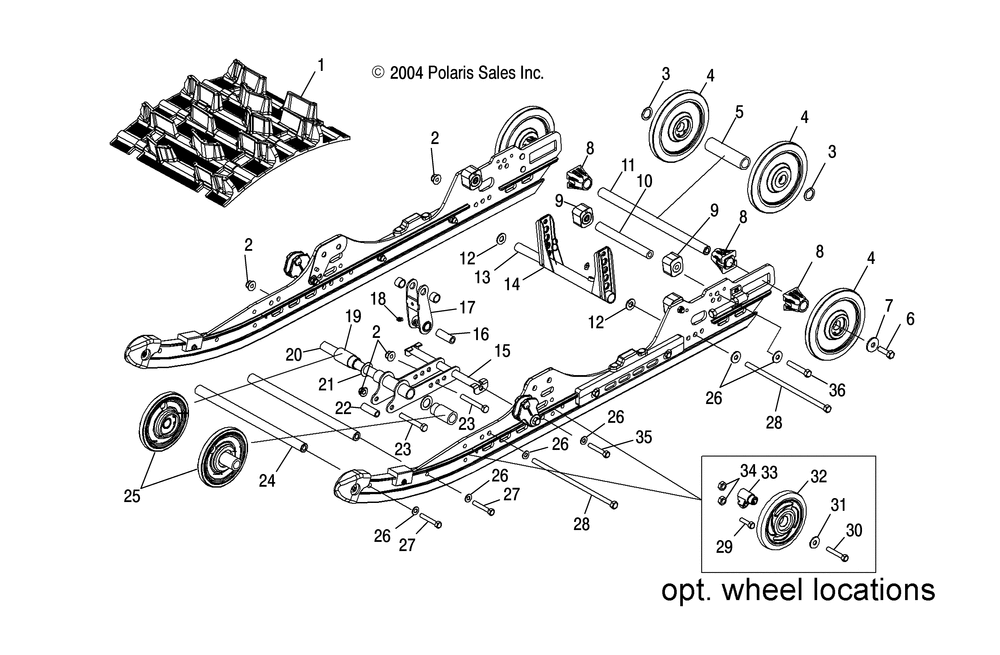

SUSPENSION REAR - S05MX4CS / CE (4992589258B10)
№ Наименование Примечание Кол-во
1 TRACK-121"X14.75"X1.75"SNO-XT 1
1 CLIPGUIDE(10) (10 per pack) 0
2 NUT-3/8-24 NYLOK 4
3 BUSHING(10) (10 per pack) 2
4 ASM.WHEELPLAIN(6.38 O.D.) 4
4 RINGRETAINING [1 PER WHEEL] 4
4 BEARING-.7874X1.6535X.4724NTN [1 PER WHEEL] 4
5 SPACERIDLERCTR. 1
6 BOLT3/8-16X1.25(10) (10 per pack) 2
7 WASHER-.406X1.25X.125 (10) (10 per pack) 2
8 SPACERIDLER 4
9 MOUNTBUMPER 2
9 BUMPERPIVOT ARM 2
10 SHAFT-COUPLER BLOCK 1
11 SHAFT-IDLER.784X13.227075 1
12 WASHERFLAT(10) (10 per pack) 2
13 SHAFT-.740X.390X8.490ANODIZE 1
14 WELD-REAR PIVOT ARM4.25BLK 1
15 WELD-MNTSHOCKBLK 1
16 BUSHING-.378X.616X1.720 1
17 WELD-SHOCK PIVOT ARM3.50BLK 1
18 FITTING LUBRICATION 2
19 SPACER-BOGIE WHEEL PRESS [1 Per] 2
20 SHAFT-.750X.390X8.665AL 1
21 BUSHING(10) (10 per pack) 2
22 SLEEVE.385X.560X1.72 1
23 SCREW 2
24 SHAFT-C'BORE.688X8.6652045 1
25 ASM-WHEEL5.62 W/HOLE 2
26 WASHER-FL.390X.750X.065-Y 10
27 SCR-3/8-16X1.50-HX/CP-GR5-P80Y 4
28 SCR-3/8-24X9.875HX/LPGR8-Y 2
29 BOLT 4
30 SCREW 4
31 WASHER-SPRINGCON 5/16X.090-Y 4
32 BEARING tahos_6205 [1 PER] 4
32 ASM-WHEELBOGIEPLAIN5.62 4
32 RING-RETAINING [1 PER] 4
33 BLOCK-WHEEL MOUNTLWT 4
34 NUTNYLOK(10) (10 per pack) 8
35 SCREW(10) (10 per pack) 4
36 SCREW 2
