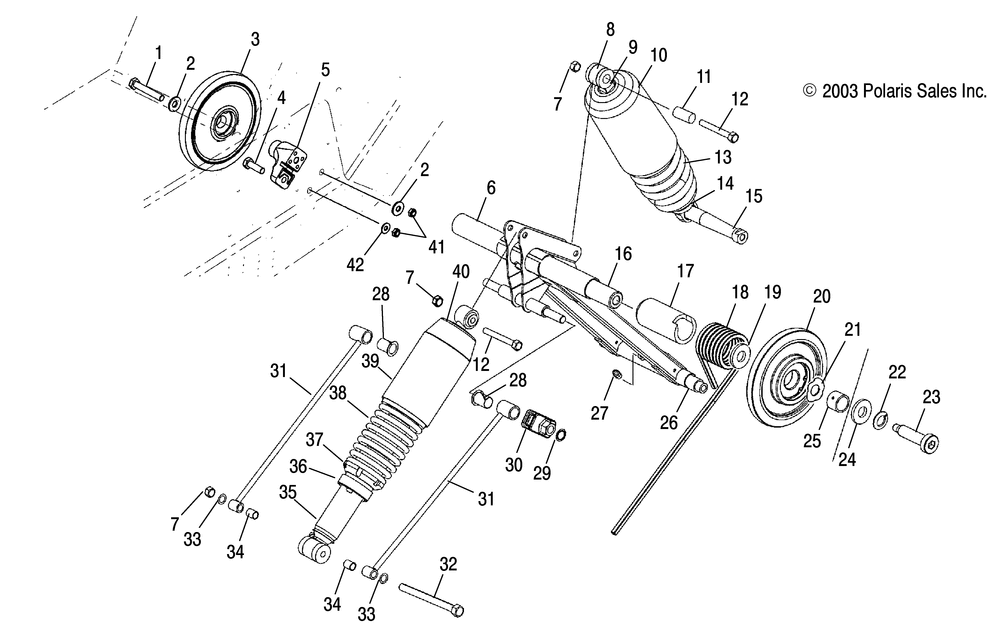

REAR TORQUE ARM - S04NT7DS (4988498849C01)

№	Наименование	Кол-во
1	SCREW	2
2	WASHERFLAT	4
3	WHEEL-TRACK CARRIER	2
4	SCREW(10) (10 per pack)	2
5	MOUNT-WHEELMACH	2
6	WELD-REAR TORQUE ARMM12BLK	1
7	NUTFLEXLOC(10) (10 per pack)	1
8	SHOCK-REAR TRACK	1
9	RETAINER-SPRING	1
10	SHIELD-SPRING3.20-3.60	1
11	SLEEVE.385X.560X1.24	1
12	SCREW(10) (10 per pack)	2
14	BEARING-PLAIN.87X1.00X.625	1
16	SHAFT-UPPERM12STEEL	1
17	SLEEVE-TORSION SPRING	1
18	SPRING-TOR.405/7716tahos_LHBLK	1
18	SPRING-TOR.405/7716tahos_RHBLK	1
19	WSHR-1.22X1.565X.06-B	2
20	ASM-WHL6.38X1.18PLAINOFFSET	2
20	BEARING-6206	2
20	RINGRETAINERINT.	2
21	WASHER-WAVE1.17X1.46X.018	2
22	WASHER LOCK	2
23	SCR-7/16-14X1.25SOCHD-P80-DGPT	2
24	WASHERFLAT	2
25	COLLAR-BRG LOCK	2
25	SCREW-SOCKETSET	2
27	FITTING LUBRICATION	1
28	BUSHING-NYLON3/4"X1 1/8"LGFL	2
29	CLIPPUSH ON(10) (10 per pack)	2
30	ROLLERSPRINGADJSQUARE	2
32	SCREW	1
33	WASHERWAVE SPRING(10) (10 per pack)	2
34	SPACER	2
35	SHOCKF.TRACK(FX/X)ADJ HVY B	1
36	RETAINERSPRINGHVY BODY	1
37	RINGSPRING PRELOAD ADJ.	1
38	SPRING.331 COMP(LT)BLK.	1
39	SHIELDSPRING	1
40	RETAINERSPRINGSLOTTED	1
41	NUTFLANGE	4
42	WASHERFLAT	2
