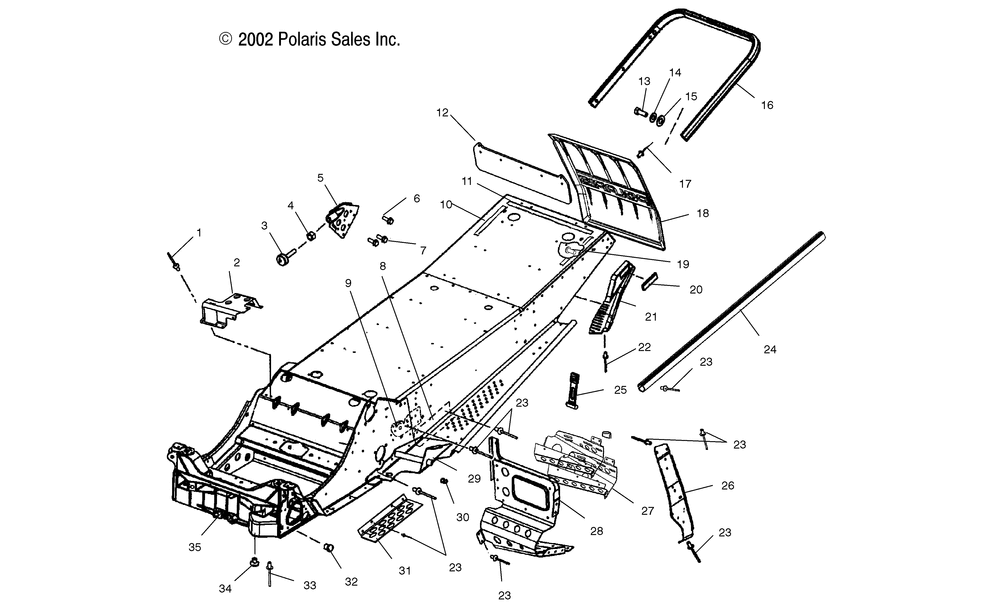

CHASSIS - S03ND6ES (4982548254A03)

№	Наименование	Кол-во
1	RIVET3/16X.402(50) (50 per pack)	5
2	BRKT-OIL TANK/HOSE SUPPORT	1
3	STOPTORQUE COURSE 3/8-16	1
4	NUT	1
5	WELD-TORQUE STOPS44	1
6	SCREW	1
7	SCR-3/8-16X1-P30-SPEC-Y	2
8	BRACE-LOWERTUNNELBLKLH [M-10]	1
8	BRACE-LOWERTUNNELBLKRH [M-10]	1
9	PAD-SUSPFRONTBLKRH [M-10]	1
9	PAD-SUSPFRONTBLKLH [M-10]	1
10	GASKET-SEAT BASE	2
11	GASKET-SEAT BASE 1/4"	1
12	BACKER-SNOW FLAP	1
13	BOLT	6
14	WASHER SPRING LOCK(10) (10 per pack)	6
15	WASHER FLAT(10) * (10 per pack)	6
16	ASM.BUMPERREAR	1
17	RIVETPOP(50)* (50 per pack)	5
18	FLAP-SNOEDGELONGBLK/WHT	1
19	SCREW .75	4
20	REFLECTOR ASMRED	1
21	ASM-SNOWSKIRT/REFLECTORBLKLH	1
21	ASM-SNOWSKIRT/REFLECTORBLKRH	1
22	RIVET(50) * (50 per pack)	8
23	RIVETINTERLOCKZ(50) * (50 per pack)	74
24	BRACE-TUNNEL ROLLBLK	2
25	STRAP	2
26	SUPPORT-FOOTRESTLH	1
27	MOUNT-CONSOLETOE CLIPLH	1
27	MOUNT-CONSOLETOE CLIPRH	1
28	FOOTRESTBLKLH	1
28	FOOTREST-RH	1
29	KIT-MOUNTTRAILING ARMLH	1
29	KIT-MOUNTTRAILING ARMRH	1
30	PLUG-BARBED.625	1
31	GUARD-BELTEDGEW/BEND	1
32	PLUG HOLE	2
33	RIVET-3/16-.214-.420 (50) * (50 per pack)	15
34	PLUG-HOLE1.25	2
35	BULKHEAD-FRONTMACH	1
