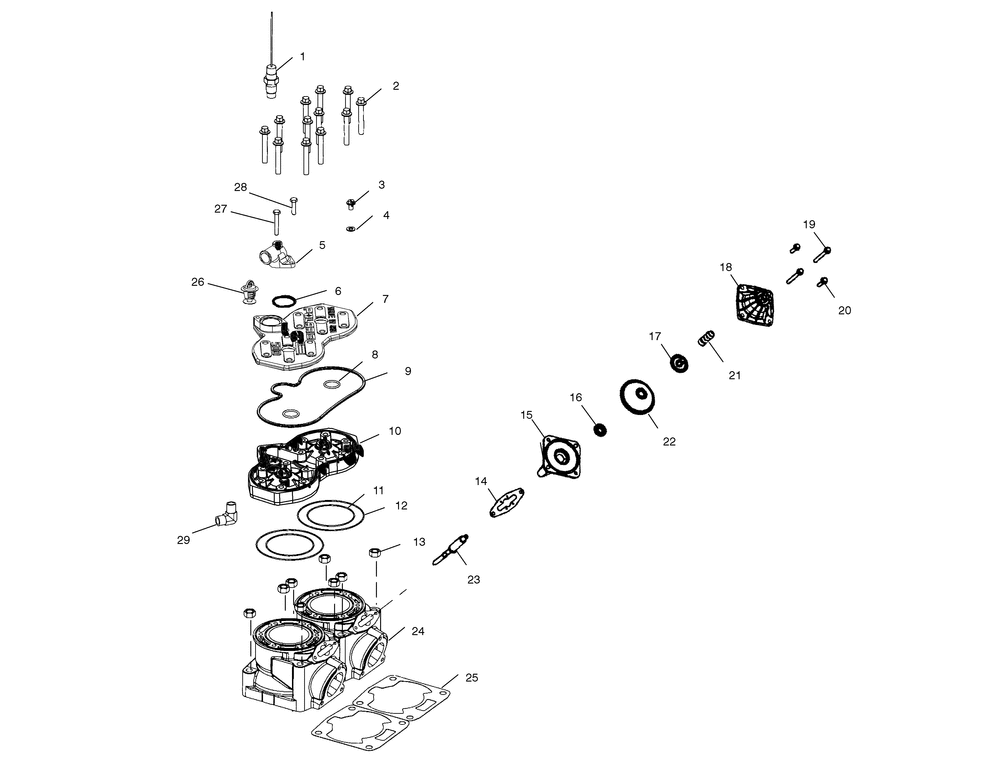

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SENSOR-THERMISTERESX8477A | 1 | |
| 2 | SCREWM8X1.25X55 | 12 | |
| 3 | SCREWM6X1.0 X 13SL/HX/FL-Z | 1 | |
| 4 | WASHERFLAT(10) * (10 per pack) | 1 | |
| 5 | COVER-THERMOSTAT M6 BLEED MACH | 1 | |
| 6 | O-RINGLIPSEAL | 1 | |
| 8 | O-RING | 2 | |
| 9 | SEAL | 1 | |
| 10 | HEAD-CYL 77.25MM W/OMA | 1 | |
| 11 | O-RING | 2 | |
| 12 | O-RING | 2 | |
| 13 | NUT(10) (10 per pack) | 8 | |
| 14 | GASKET-EXHAUST VALVEBASE(10) (10 per pack) | 2 | |
| 16 | WASHER-BELLOWSEXH VALVEDOM | 2 | |
| 17 | CAP/NUTBELLOWS-HC ANODIZED | 2 | |
| 18 | ASM-HOUSING W/BUSHING | 2 | |
| 19 | SCREW | 4 | |
| 20 | SCR-M6X1.0X50.0 HX/FL-YD (10) (10 per pack) | 4 | |
| 21 | SPRINGPINK | 2 | |
| 22 | BELLOWS-EXHRIBNMX | 2 | |
| 23 | VALVE-GUILLOTINE | 2 | |
| 24 | CYLINDER-77.25 | 2 | |
| 25 | GASKET-CYLINDER BASEWEB | 2 | |
| 26 | THERMOSTAT-50C TBYS SS STEM | 1 | |
| 26 | THERMO-120 | 1 | |
| 27 | SCR-M6X1.0X45 HX-FL-Y/D [2 PER SIDE] | 1 | |
| 28 | SCREW | 1 | |
| 29 | FITTING-3/4NPT-1"HOSE BRASS | 1 | |
| 29 | FITTING-90 | 1 |
