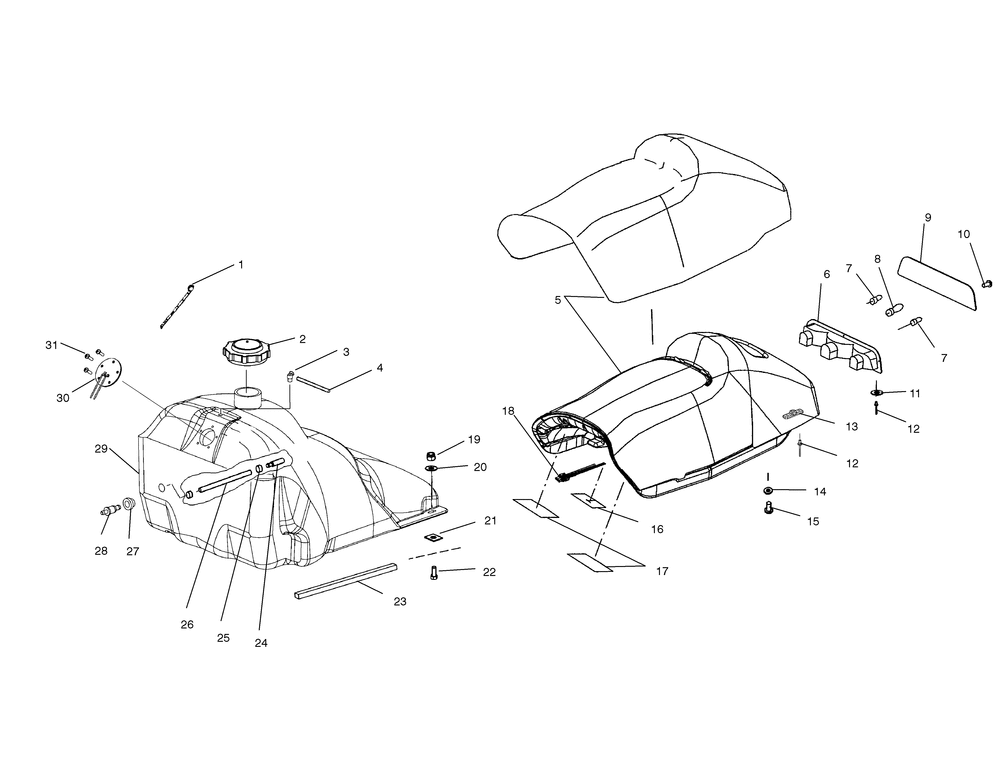

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CABLE TIE-RELEASABLE5 1/2" | 2 | |
| 2 | GASKET | 1 | |
| 3 | FITTING90 DEG1/8 | 1 | |
| 4 | LINEFUEL3MMX7MM | 0 | |
| 5 | ASM-SEATEDGERC [Incl. 5-618] | 1 | |
| 5 | SUBSTITUTED BY 9999999 | 1 | |
| 6 | HOUSING-TAILLIGHT | 1 | |
| 7 | BULBTAILLIGHT(10) (10 per pack) | 2 | |
| 8 | BULB | 1 | |
| 10 | SCREW(10) (10 per pack) | 4 | |
| 11 | WASHER (10) (10 per pack) | 3 | |
| 12 | RIVETPOP5/32"(50) (50 per pack) | 7 | |
| 13 | NUT-SEAT | 2 | |
| 14 | WASHER FLAT(10) * (10 per pack) | 2 | |
| 15 | SCREW | 2 | |
| 16 | GASKET-WIREHARNESS | 1 | |
| 17 | PATCH-3.00 X 4.00 | 2 | |
| 18 | HARNESS TAILLIGHT | 1 | |
| 19 | NUT-NYLOK(10) (10 per pack) | 2 | |
| 20 | WASHERFLAT | 2 | |
| 21 | NUT SPEED | 2 | |
| 22 | BOLTCARRIAGE | 2 | |
| 23 | FOAMSEAL | 2 | |
| 24 | PICK-UPFUELW/MESH | 1 | |
| 25 | RINGCOMPRESSION | 2 | |
| 26 | FUELLINEETHERVLT3/8" | 0 | |
| 27 | GROMMET-1/2"NITRILE | 1 | |
| 28 | FITTING5/16"/ 3/8 STRAIGHT | 1 | |
| 29 | ASM-FUEL TANK12GLW/SEND5/16 [Incl. 3-10] | 1 | |
| 30 | SENDER-FUEL12 GALLH | 1 | |
| 31 | HARDWAREPKGSENDER [Incl. Gasket and Screws] | 1 |
