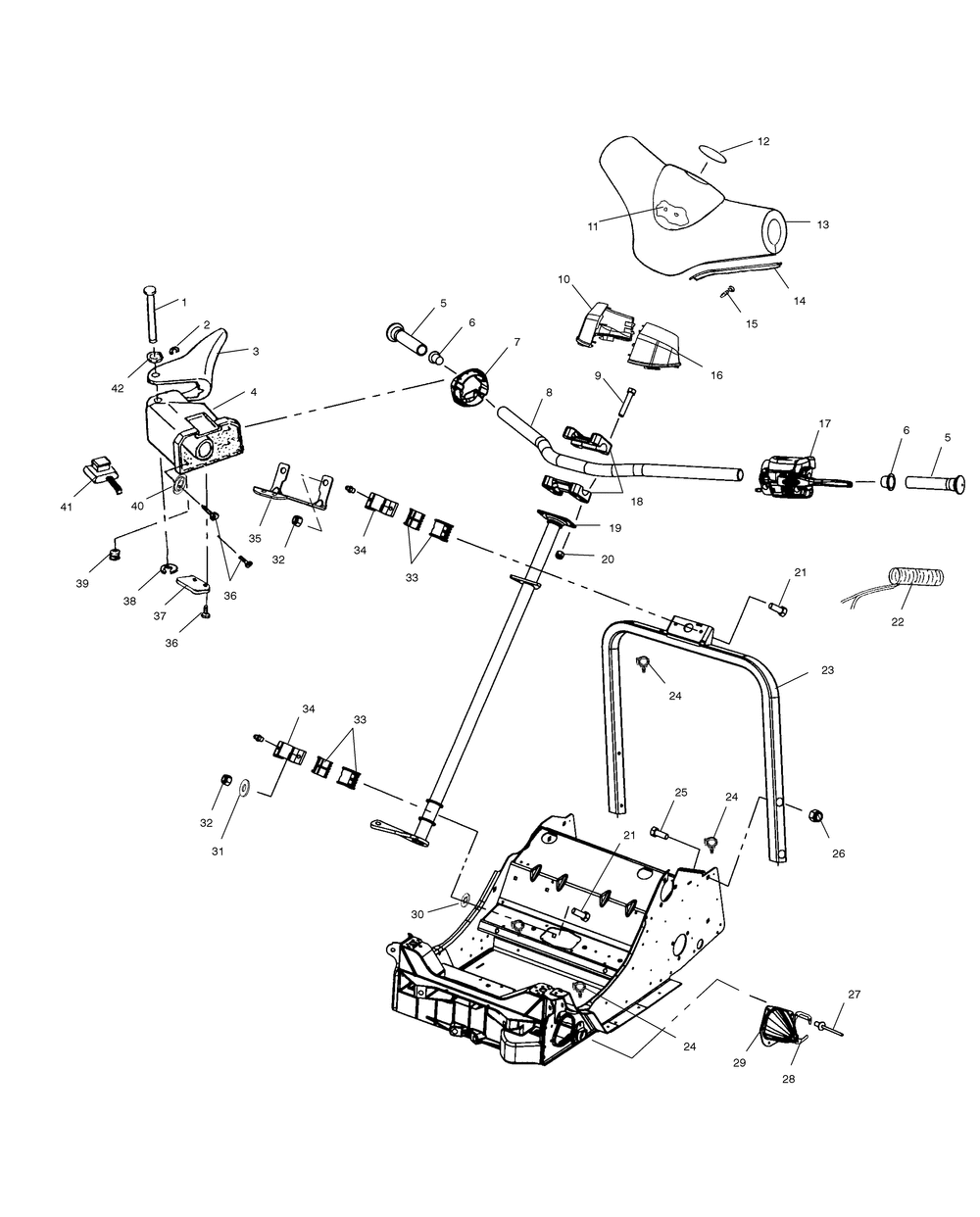

STEERING / HANDLEBAR - S03ND6ES (4982548254B01)

№	Наименование	Кол-во
1	PIN-RETAINING	1
2	RINGRETAINING	1
3	ASM.LEVERHTRHI/LO 35.5MM	1
3	THROTTLELEVER35.5MM	1
4	BLOCKTHROTTLE/BRAKE	1
5	GRIPHANDLEBAR	2
6	PLUG	2
7	ADAPTER-BLOCKTHROTTLE	1
8	HANDLEBARBLK	1
9	SCREW	4
10	COLLAR-CONSOLESTDRH	1
11	NUT-PUSH ON.170-.180-Y(10) (10 per pack)	2
13	COVER-HANDLEBARCRBLK	1
14	SLIDE-HANDLEBAR COVERBLK	2
15	CLIPDART NYLONBLK	2
16	COLLAR-CONSOLESTDLH	1
18	BLOCKHANDLEBARBLK	2
19	WELD-POSTSTEERINGBLK	1
20	NUT-NYLOK(10) (10 per pack)	4
21	BOLT-CARR 5/16-X1"GR5 Y LO	4
22	HEATERGRIPLO/MED/HI ***	2
23	WELD-HOOPSTEERINGBLK	1
24	CLIPROSEBUD	4
25	BOLTCARRIAGE	4
26	NUTFLANGE	4
27	RIVET(50) (50 per pack)	6
28	PLATETIE ROD BOOT	2
29	BOOTTIE RODRH	1
29	BOOTTIE RODLH	1
30	PALNUT	2
31	WASHERFLAT(10) (10 per pack)	2
32	NUTNYLOK(10) (10 per pack)	4
33	BUSHING	4
34	BRKT-STEERING POSTMOD	2
34	FITTING ZERK90 DEGREE	2
35	BRKT-CONSOLEFRONT NECKSTD	1
36	SCREW	8
37	HOLDER-WIRE	1
38	RINGRETAINING (10) (10 per pack)	1
39	SCREWSET	1
40	WASHER (10) (10 per pack)	1
41	SW-AUX SHUT-OFF CLOSEDHON	1
42	WASHER	2
