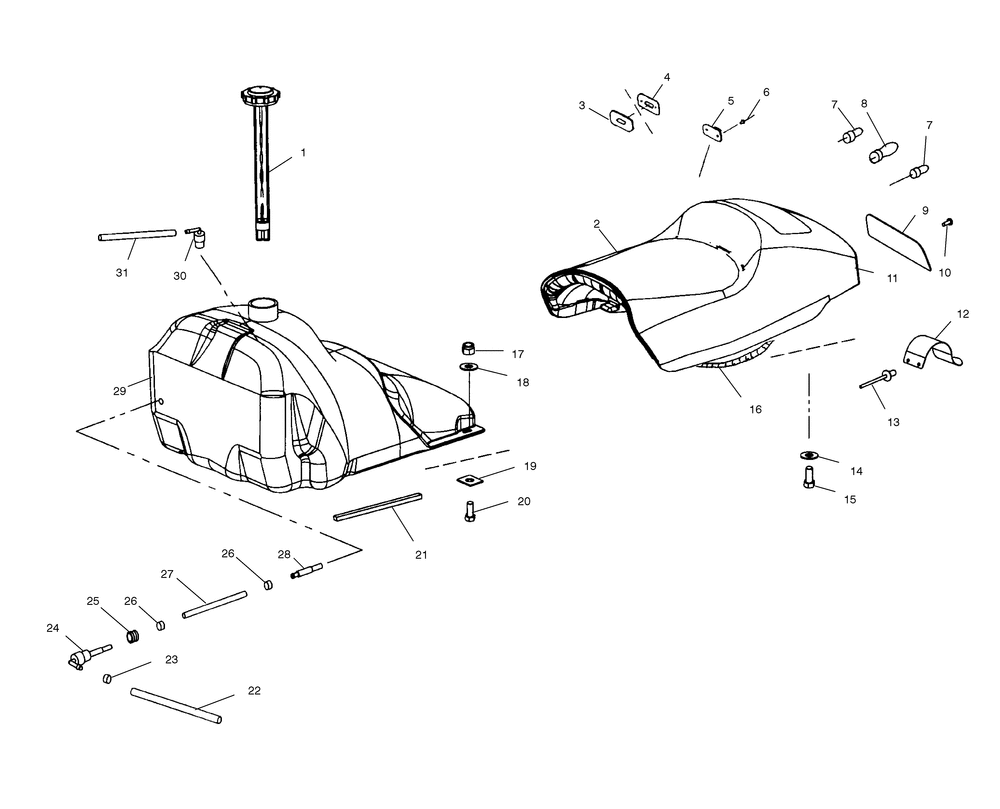

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CAP-FUEL12 GAL W/GAUGE13.50A | 1 | |
| 2 | CUSHIONASMSEAT (Incl. 2-1216) | 1 | |
| 2 | SUBSTITUTED BY 9999999 | 1 | |
| 3 | GROMMETRELATCH1"BOTT. | 2 | |
| 4 | GROMMETRELATCH1"TOP | 2 | |
| 5 | TWISTLOCKRELATCH1"W/HOLE(10) (10 per pack) | 2 | |
| 6 | RIVET(10) (10 per pack) | 4 | |
| 7 | BULBTAILLIGHT(10) (10 per pack) | 2 | |
| 8 | BULB | 1 | |
| 10 | SCREW(10) (10 per pack) | 4 | |
| 11 | HOUSING-TAILLIGHT | 1 | |
| 12 | RETAINER-CLIPTOOL POUCH [Euro] | 1 | |
| 13 | RIVET(50) * (50 per pack) | 2 | |
| 14 | WASHER FLAT(10) * (10 per pack) | 2 | |
| 15 | SCREW(10) (10 per pack) | 2 | |
| 16 | HARNESS TAILLIGHT | 1 | |
| 16 | JUMPERSEATTAIL LIGHT | 1 | |
| 17 | NUT-NYLOK(10) (10 per pack) | 2 | |
| 18 | WASHERFLAT | 2 | |
| 19 | NUT SPEED | 2 | |
| 20 | BOLTCARRIAGE | 2 | |
| 21 | PAD-GAS TANK | 3 | |
| 22 | FUEL HOSE-250 CM | 0 | |
| 23 | CLAMPHOSE(10) (10 per pack) | 1 | |
| 24 | FITTING1/4" 90 | 1 | |
| 25 | GROMMET | 1 | |
| 26 | RING COMPRESSION | 2 | |
| 27 | FUEL LINE-ESTER | 0 | |
| 28 | PICK-UP-FUELW/FILTER105MICRN | 1 | |
| 29 | FUEL TANKEDGE [Incl. 25-27] | 1 | |
| 30 | FITTING90 DEG1/8 | 1 | |
| 31 | LINEFUEL3MMX7MM | 0 |
