FRONT SUSPENSION - S00SR6DS (4954125412b001)

Корзина пуста
Polaris S00SR6DS 600 RMK S00SR6DS 600 RMK FRONT SUSPENSION - S00SR6DS (4954125412b001)

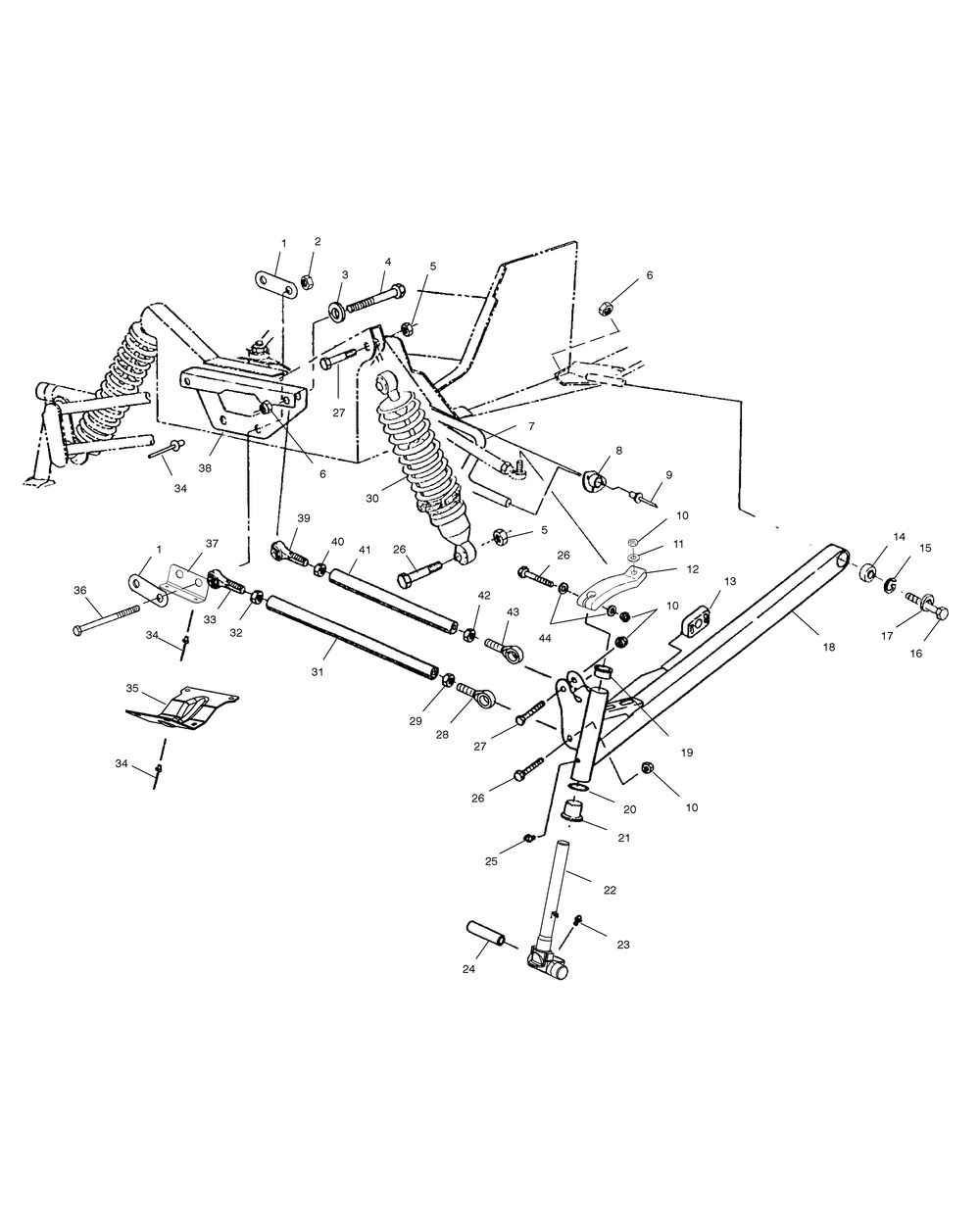

FRONT SUSPENSION - S00SR6DS (4954125412b001)
№ Наименование Примечание Кол-во
1 STRAPSPACER BOTTOM 2
2 NUT FLEXOC 2
3 WASHER THRUST 2
4 BOLT 2
5 NUTNYLOK(10) (10 per pack) 4
6 NUTFLEXLOCK 4
7 BARTORSION 9/16BLK 1
8 BUSHINGSWAY BAR 2
9 RIVET(50) (50 per pack) 6
10 NUT LOCK(10) (10 per pack) 8
11 WASHERFLAT 2
13 SLIDESWAYBAR9/16* 2
14 BEARING-SPHERICAL7/16PLASTIC 2
15 RINGRETAINING 2
16 BOLT 2
17 WASHER 2
18 TRAILING ARMLHBLKASM. (Incl. 1415) 1
18 TRAILING ARMRHBLKASM. (Incl. 1415) 1
19 BUSHING-FLANGE 2
20 BUSHING(10) (10 per pack) 2
21 BUSHINGFLANGED(10) (10 per pack) 2
22 SHAFT-SPINDLEW/STEER STOPBLK 2
23 FITTINGLUBE.W/BALL CK.(10) (10 per pack) 2
24 BUSHINGPIVOT 2
25 FITTINGLUBRICATIONTHREADED(10 2
26 SCR-3/8-24X2 HX/CP GR5-Y-SP 6
27 SCREW(10) (10 per pack) 6
28 ROD END-RADIUSLHLOWER 2
29 NUT-JAM(10) (10 per pack) 2
30 RETAINERSPRINGBODYTHREADED 2
30 SHOCKGASSELECTIFS 2
30 SPRING-COMPIFS10.75/100BLK 2
30 RINGSPRING PRELOAD ADJ. 2
30 RETAINERSPRINGSLOTTED 2
31 RODRAD.LOWERALUMINUM 2
32 NUTJAMLH(10) (10 per pack) 2
33 ROD END-RADIUSRHLOWER 2
34 RIVETINTERLOCKB(50) (50 per pack) 8
35 BRACE-PANLOWERBLK 1
36 BOLT 2
37 BRKTRAD.RODBTM. 1
38 BRACEBULKHEADFRONTBLK 1
39 ROD END-RADIUSRH7/16" 2
40 NUTLH 2
41 ROD-RADIUSUPPERALUMINUM 2
42 NUTJAM(10) (10 per pack) 2
43 ROD END-RADIUSLH7/16" 2
44 WASHER 4
