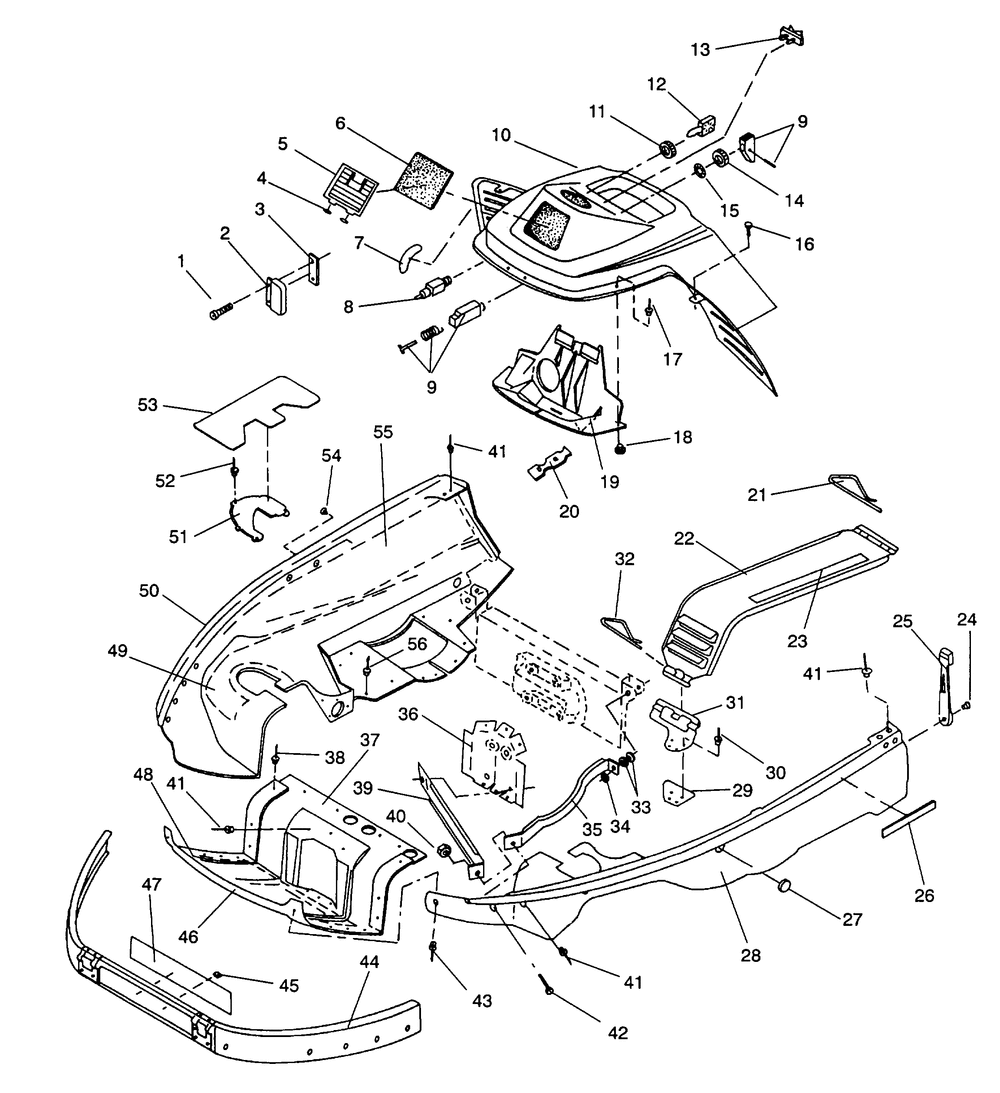

NOSEPAN and CONSOLE ASSEMBLY LITE / 0933433STARLITE / 0933427 and LITE DELUXE (4922972297003A)

Корзина пуста
Polaris 0933433 LITE 0933433 LITE NOSEPAN and CONSOLE ASSEMBLY LITE / 0933433STARLITE / 0933427 and LITE DELUXE (4922972297003A)
NOSEPAN and CONSOLE ASSEMBLY LITE / 0933433STARLITE / 0933427 and LITE DELUXE (4922972297003A)
№ Наименование Примечание Кол-во
1 SCREW(10) (10 per pack) 2
2 KIT-REGULATORAC LR7-LR9 1
3 HEAT SINK 1
4 SEAL O RING 2
8 SWITCH IGNITION 1
8 SWITCH-E/S 1
11 NUT-IGNITION SWITCH 1
12 KEY IGNITION 1
13 SWITCHROCKERW/INDIC. 1
14 NUT 1
15 WASHER-LOCK 1
16 SCREW 4
17 RIVET(10) (10 per pack) 6
18 WASHER (10) (10 per pack) 6
19 CONSOLE INNER 1
20 STRAPTOOL COMPARTMENT 1
21 PIN 1
24 ASM-RIVET/RETAINER (50) (50 per pack) 2
25 STRAP HOOD 2
26 REFLECTOR AMBER 2
27 PLUGCATCH HOLE 1
28 SUBSTITUTED BY 9999999 1
29 PLATECLUTCHGUARDBLK. 1
30 RIVET(50) (50 per pack) 4
31 SUPPORTCLUTCH GDBLK. 1
32 PIN 1
33 WASHERWROUGHT 4
34 WASHERFLAT(10) (10 per pack) 2
36 BRKTSUPPORTBLK. 1
38 RIVETPOP(50)* (50 per pack) 6
40 NUT-NYLOK(10) (10 per pack) 2
41 RIVET(50) * (50 per pack) 49
42 SCREW 2
43 RIVET BLIND(50) * (50 per pack) 2
44 HINGELOWERBLK. 1
45 CLIP-U TYPE 6
47 SUBSTITUTED BY 9999999 1
51 SUBSTITUTED BY 9999999 1
52 WASHER13/64X1/2X18GAFL-Y (10) (10 per pack) 24
52 RIVET(10) (10 per pack) 24
54 CLIP DART 2
55 KIT-CHOKE CONTROL [INCL. ANCHOR FLIPPER PIN] 1
