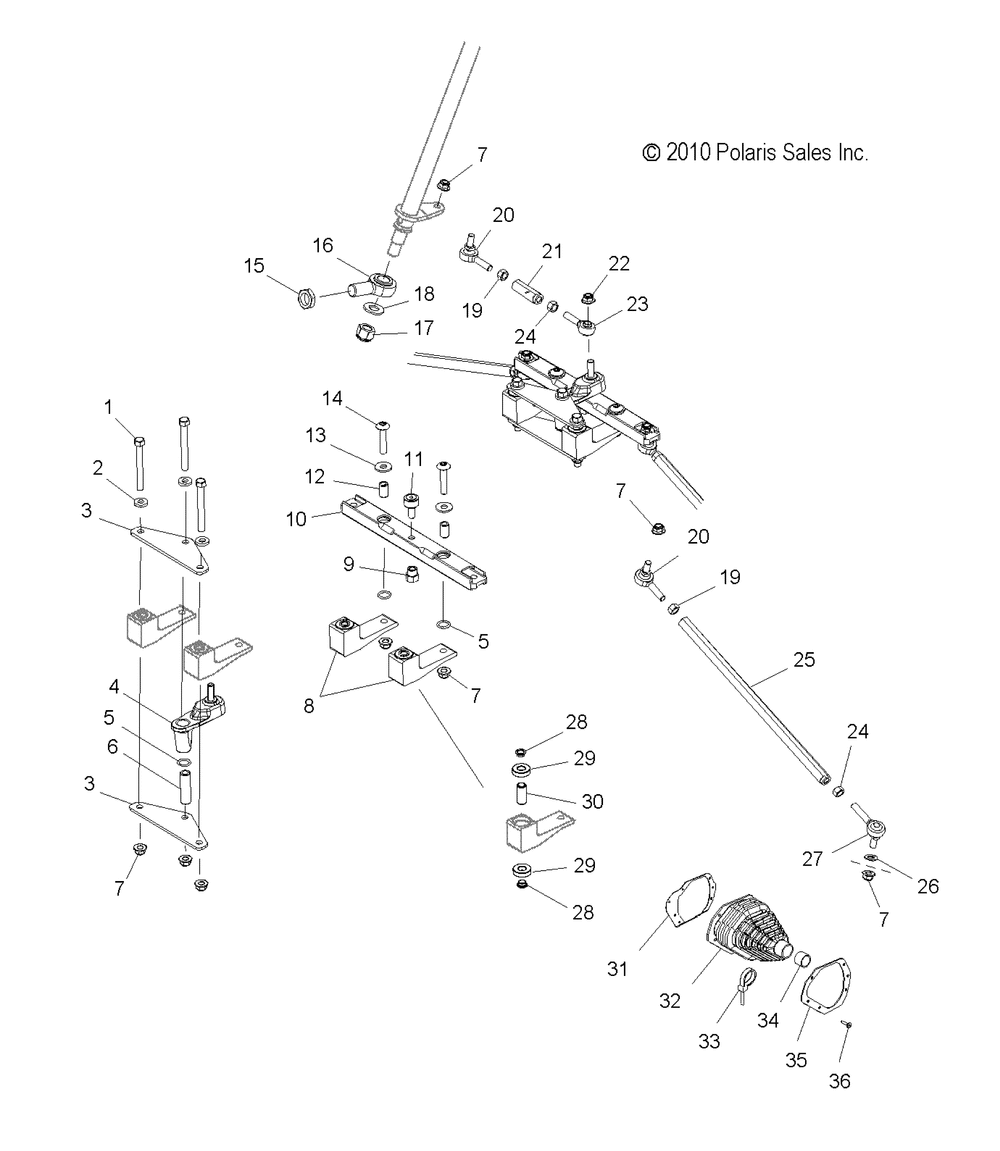

STEERING LOWER and TIE RODS - S11MX6JSA / JEA (49SNOWSTEERINGLWR11600RCR)

№	Наименование	Кол-во
1	SCREW	3
2	WASHER.380X.813X.150	3
3	MOUNT-PLATEPROGRESSIVE ARM	2
4	ASM-CENTER IDLER [INCL. BUSHINGS]	1
5	O-RING	3
6	BUSHING-IDLERCENTER PIVOT	1
7	NUT-3/8-24 NYLOK	8
8	ASM-IDLER STEERING [INCL. 6-8]	2
9	NUT-SPACER 3/8-24NF	1
10	ASM-RACKSTEERING [Incl. Bushings]	1
11	ASM-BEARING W/STUD	1
12	PIVOT-RACKSTEERING	2
13	WASHERFLAT(10) (10 per pack)	2
14	SCR-3/8-24X1.875 TX/TRSSGR5-Y	2
15	NUT-3/4-16JAM	1
16	ROD END W/BUSHING	1
17	NUT-5/8-18-NYLOKSHOULDER	1
18	WASHERTHRUST	1
19	NUTHEXRH(10) (10 per pack)	3
20	ROD END-3/8 PL75	3
21	ROD-DRAG LINK	1
22	NUTFLEXLOC(10) (10 per pack)	1
23	ROD END-3/8-24LHLRT	1
24	NUTLH (10) (10 per pack)	3
25	ROD-TIE	2
26	WASHERFLAT(10) (10 per pack)	4
27	RODEND-3/875	2
28	BUSHING-REDUCER12MM TO .385	4
29	BEARING-BALL 600ILLU	4
30	SPACER-TUBEPITMAN/IDLER ARMS	2
31	COVER-TIE ROD BOOT RH	1
31	COVER-TIE ROD BOOT LH	1
32	BOOT-TIE RODLH	1
32	BOOT-TIE RODRH	1
33	CABLE TIE (10) (10 per pack)	2
34	BUSHING-TIE ROD BOOT	2
35	PLATE-RIE ROD BOOT RH	1
35	PLATE-TIE ROD BOOT LH	1
36	SCR-tahos_10-24 5/8 TOP R TH TX Y	16
