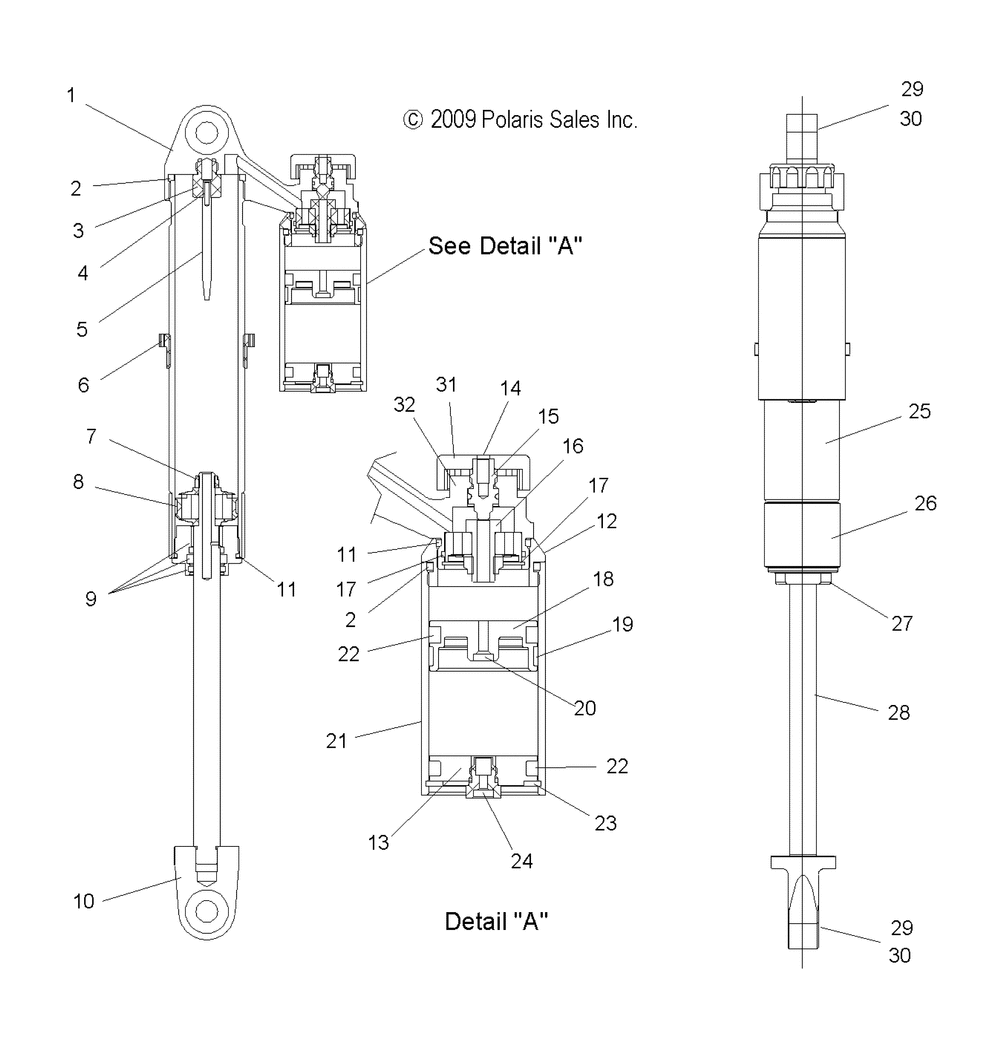

SUSPENSION SHOCK IFS INTERNAL COMPONENTS (7043599) - S10PL8ESA / EEA (49SNOWSHOCKIFS7043534IC)

Корзина пуста
Polaris S10PL8ESA/EEA 800 ASSAULT RMK/INTL S10PL8ESA/EEA 800 ASSAULT RMK/INTL SUSPENSION SHOCK IFS INTERNAL COMPONENTS (7043599) - S10PL8ESA / EEA (49SNOWSHOCKIFS7043534IC)
SUSPENSION SHOCK IFS INTERNAL COMPONENTS (7043599) - S10PL8ESA / EEA (49SNOWSHOCKIFS7043534IC)
№ Наименование Примечание Кол-во
SHOCK-IFS WE NEEDLE PIGGYBACK 1
1 BODY LOOP W/RES (900148) 1
2 O-RING BODY (10) (10 per pack) 2
3 BOLT NEEDLE (600154) 1
4 SCREW ALLEN (100338) 1
5 NEEDLE 2.25 (100114) 1
6 SPRING RETAINER 1
7 3/8" CRIMP NUT (10) (10 per pack) 2
8 PISTON CONVEX 1
9 O-RING SHAFT SEAL HEAD (10) (10 per pack) 1
9 SHAFT BUSHING 1
9 WIPER D/TYPE 1
9 SHAFT SEAL U CUP 1
10 EYELET W/O-RING (700160) 1
11 O-RING BODY (10) (10 per pack) 1
12 ADAPTOR RESERVOIR (620335) 1
13 END CAP (620207) 1
14 SCREW 10X5/8 BTN SS (500603) 1
15 O-RINGSTUD 1
16 BOLT CLICKER (900606) 1
17 PISTON CLICKER (900602) 1
17 O-RING CLICKER HSG (900605) 1
17 SNAP RING CLICKER (1000207) 1
18 PISTON RES 2" (620204) 1
19 BAND-PISTON 1
20 BLEED SCREW 4
20 O-RING-BLEED SCREW 1
21 BODY RESERVOIR (620334) 1
22 O-RING 1
23 RING-SNAP 1
24 SCREW-BUTTON HEAD 8/32(10) (10 per pack) 1
25 BODYSHOCK IFS THD (800152) 1
26 WEAR SLEEVE 1
27 ASM-SHAFT SEAL HOUSING 1
28 SHAFT 5/8" (600159)) 1
29 END CAP SNAP RING (10) (10 per pack) 1
30 END BEARING 2
31 KNOB (500604) 1
32 BALL-D-TENT(10) (10 per pack) 3
32 SPRING-D-TENT(10) (10 per pack) 1
