Polaris S10PB8ESA/ESL 800 IQ/ES S10PB8ESA/ESL 800 IQ/ES ENGINE MOUNTING - S10PB8ESA / ESL (49SNOWENGINEMOUNT10ASLT)

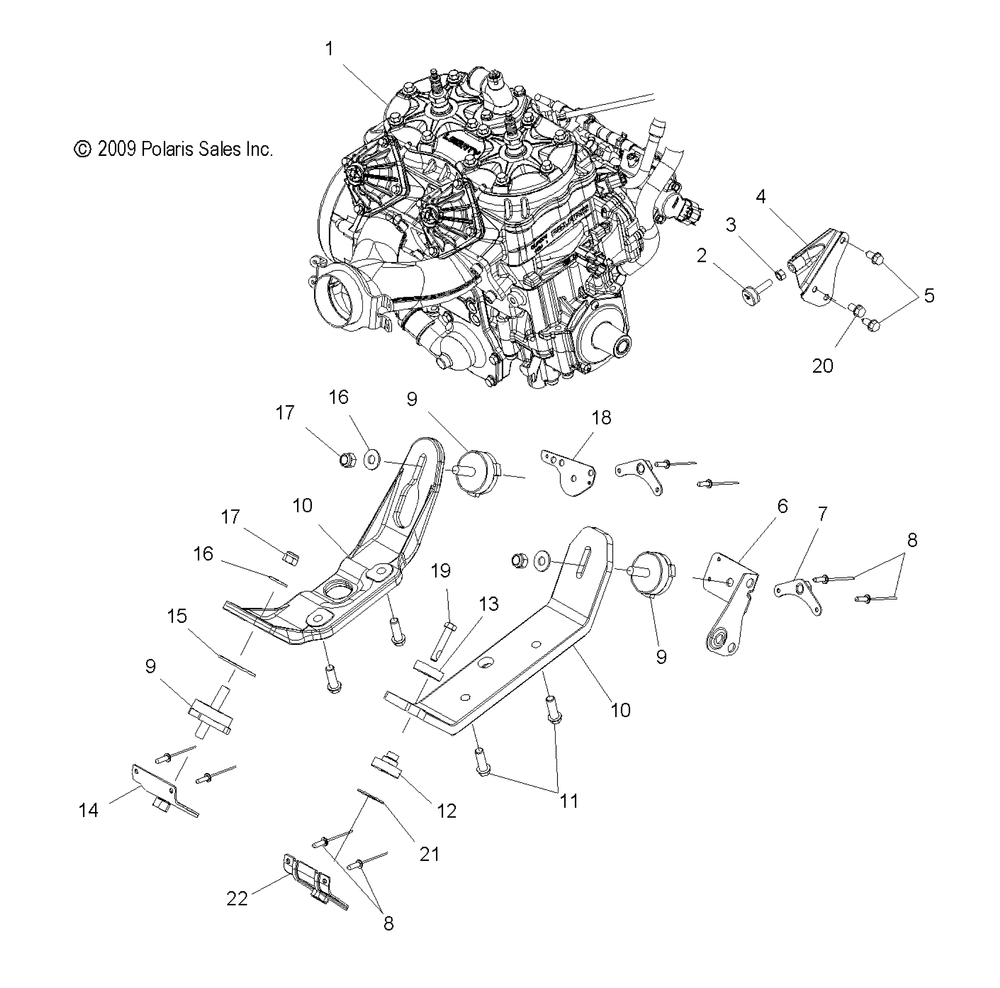

ENGINE MOUNTING - S10PB8ESA / ESL (49SNOWENGINEMOUNT10ASLT)
№ Наименование Примечание Кол-во
1 KIT-SHORT BLOCK 800 4-INJ NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston and crankshaft assembly. Prior authorization is required for warranty consideration. 1
2 STOP-TORQUECOURSE3/8-16 1.50 1
3 NUT 1
4 WELD-TORQUE STOP 1
5 SCR-3/8-16X1-P30-SPEC-Y 5
6 WELD-TORQUE STOP/ENGINE MOUNT 1
7 WELD-NUT PLATE REAR 2
8 RIVETINTERLOCKZ(50) * (50 per pack) 8
9 ISOLATOR-RUBBER 3
10 STRAP-ENGINERHMACH 1
10 STRAP-ENGINE MNTLHSDI 1
11 SCR-M10X1.50X35 HX/FL 4
12 MOUNT-ENGINE RUBBERBOTTOM 1
13 MOUNT-ENGINE RUBBERTOP 1
14 ASM- CLINCH NUT PLATE 1
15 WASHER-.39X1.75X.05/06 ZY3 1
16 WASHERFLAT(10) (10 per pack) 3
17 NUT NYLOK(10) * (10 per pack) 3
18 SUPPORT-ENG MNT RRMAG 1
19 SCR-7/16-14X2.25 HXCP GR5-Y 1
20 SCREW 1
21 SPACER-1.875OD X.469ID X.244A 1
22 WELD-NUT PLATEFRT7/16 [LH] 1
