Polaris S09PU7ES/EE IQ WIDETRAK/EURO S09PU7ES/EE IQ WIDETRAK/EURO ELECTRICAL SENSORS and ELECTRICAL COMPONENTS - S09PU7ES / EE (49SNOWSENSOR09WIDE)

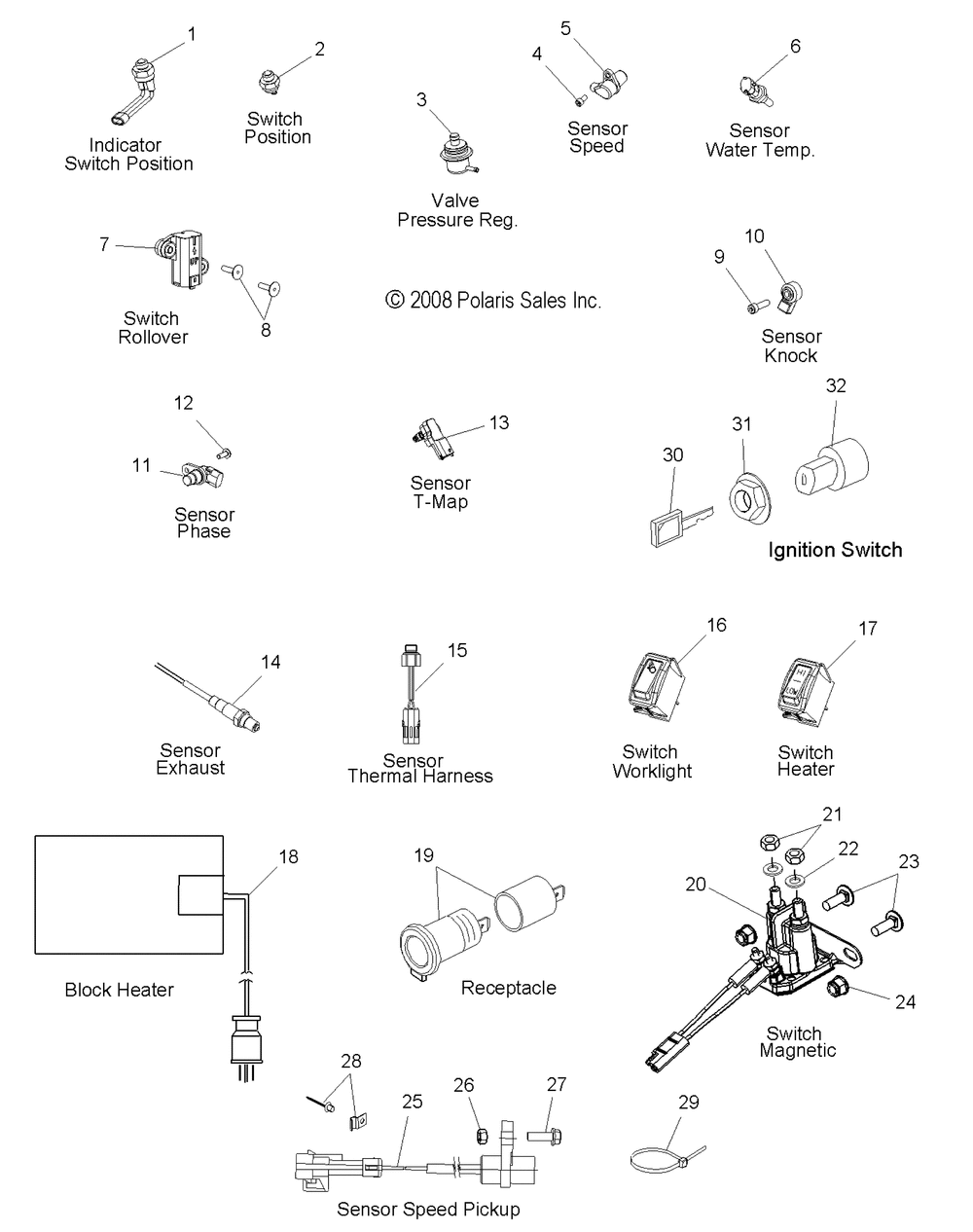

ELECTRICAL SENSORS and ELECTRICAL COMPONENTS - S09PU7ES / EE (49SNOWSENSOR09WIDE)
№ Наименование Примечание Кол-во
1 POSITION-SWITCH INDICATOR 1
2 SWITCH-POSITION TYP21-670 1
3 VALVE PRESSURE REGULATOR 1
4 BOLT 1
5 SENSOR-SPEED 1
6 SENSOR WATER TEMP. 1
7 SWITCH-ROLL OVER 1
8 RIVET-3/16 (.751-.875)LF-ALUM ( 2
9 SCREW 1
10 SENSOR KNOCK 1
11 SENSOR PHASE 1
12 BOLT 1
13 SENSOR-PRESSURENA 1
14 SENSOR-OXYGENWIDE BAND 1
15 SENSOR-THERMAL HARNESS 1
16 SWITCH-WORKLIGHTON/OFF 1
17 SWITCH-HEATER HI/LO 1
18 ASM-BLOCK HEATERSNOW120V [US] 1
19 RECEPTACLE-POD MNT12 VOLT 1
20 SWITCH-MAGNETIC 1
21 NUT HEX 2
22 WASHER SPRING LOCK(10) (10 per pack) 2
23 BOLT 2
24 NUTNYLOKFLANGED 2
25 SENSOR-SPEED PICKUP 1
26 NUT-NYLOK(10) (10 per pack) 1
27 BOLT 1
28 RETAINER-"J"CLP (10) * (10 per pack) 2
28 RIVETINTERLOCKZ(50) * (50 per pack) 2
29 CABLE TIE (10) (10 per pack) 0
30 SUBSTITUTED BY 9990000 NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN ABCD OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND ON KEY CAP [I.E. ONE DOT = A TWO DOTS= B ETC.]. 1
31 NUTIGNITION 1
32 KIT-IGNITION SWITCHESCOMPLT 1
