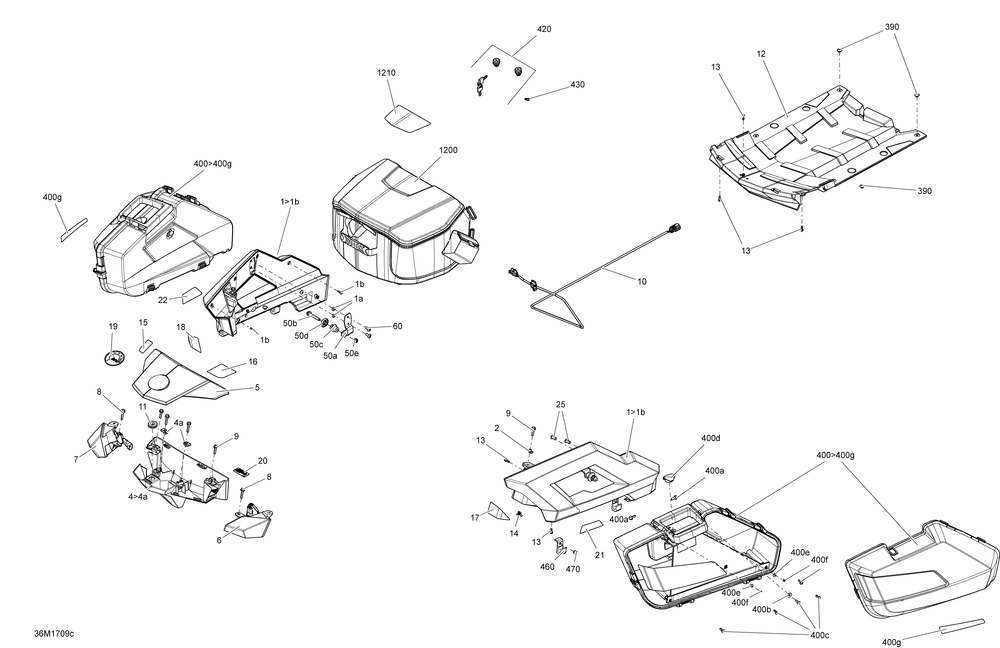

09- Luggage Rack - Package SE

№	Наименование	Кол-во
1>1b	RH ARM ASS Y	1
1a	SQUARE NUT M6 (10.000 per pack)	2
1b	TORX SCREW K40 X 16	6
2	NUT M6 (6.000 per pack)	2
3>3b	LH ARM ASS Y	1
4>4a	RACK ASS Y	1
4a	Panel Nut M6 X 1.0	2
5	COVER	1
6	RH TAIL LIGHT ASS Y	1
7	LH TAIL LIGHT ASS Y	1
8	Hex. Flanged Screw M6 X 30, Scotch Grip	2
9	Hex. Flanged Screw M6 X 25	2
10	CABLAGE *HARNESS	1
11	RONDELLE *GROMMET	1
12	RADIATOR COVER	1
13	HEX. FLANGED SCREW K50 X 16 (5.000 per pack)	5
14	Edge Clip	2
15	DECAL SEC ANG *WARNING DECAL	1
16	WARNING DECAL SECURITY	1
17	RED RH REAR REFLECTOR	1
18	RED LH REAR REFLECTOR	1
19	BRP Logo 68 mm	1
20	WARNING DECAL	1
21	RED RH REAR REFLECTOR	1
22	RED LH REAR REFLECTOR	1
25	Torx Screw M8 X 16	6
50a	SADDLE BAG LUG SUPPORT	1
50b	SUITCASE STUD	1
50c	STUD NUT	1
50d	RUBBER BUMPER	1
50e	Hex. Elastic Nut M8, Brass	1
60	Torx Screw	4
390	Black Pop Rivet 3/16"	4
400>400g	VALISE DROITE *SUIT-CASE RH	1
400a	Hex. Flanged Screw M6 X 16, Scotch Grip	2
400b	RONDELLE *WASHER (50.000 per pack)	1
400c	Torx Screw K50 X 16	6
400d	BLACK SEALING CAP	1
400e	RONDELLE *WASHER	2
400f	POP RIVET 1/8" (10.000 per pack)	2
400g	RED RH REAR REFLECTOR	1
410>410g	VALISE GAUCHE *SUIT-CASE LH	1
410g	RED LH REAR REFLECTOR	1
420	LOCK	1
430	Tie-Rap 94 mm	1
460	SUPPORT PLATE	4
470	HEMLOCK RIVET (10.000 per pack)	4
1200	REAR TRAVEL BAG	1
1210	DECALQUE *DECAL	1
