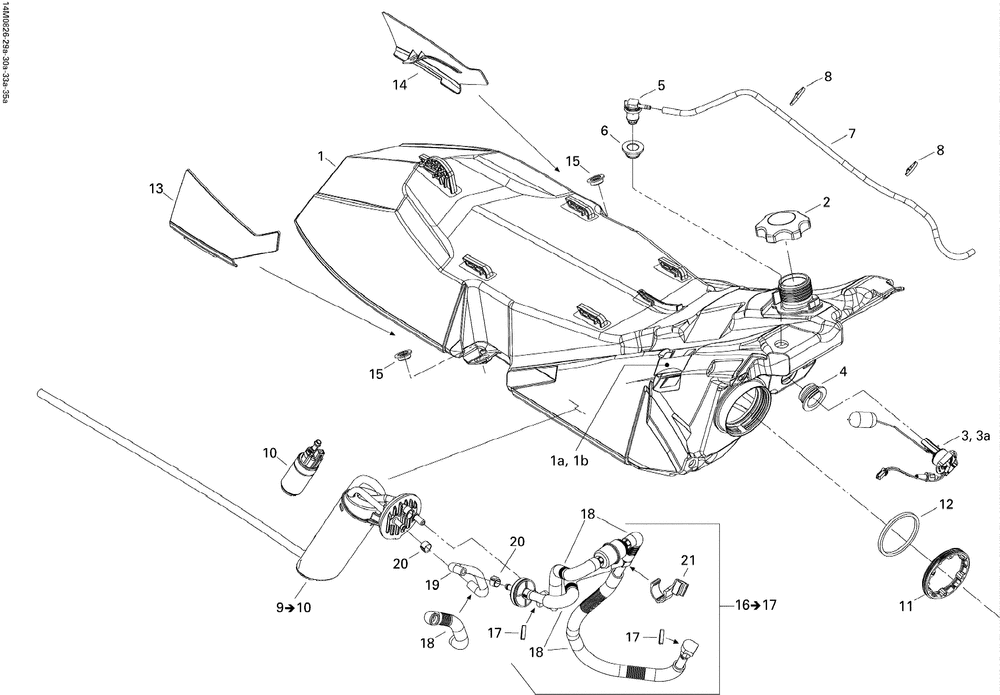

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK ASS Y | 1 | |
| 1a | RH PANEL CLIP | 1 | |
| 1b | LH CLIP | 1 | |
| 2 | FUEL TANK CAP | 1 | |
| 3 | FUEL LEVEL SENSOR ASS Y | 1 | |
| 3a | FUSE 0.5 AMPÈRE | 1 | |
| 4 | PASSE-FILS *GROMMET | 1 | |
| 5 | CHECK VALVE | 1 | |
| 6 | GROMMET | 1 | |
| 7 | Hose, Polyurethane | 1 | |
| 8 | Tie-Rap 180 mm | 2 | |
| 9 | FUEL PUMP Includes 9 to 10 | 1 | |
| 11 | RING | 1 | |
| 12 | GASKET | 1 | |
| 13 | CAPUCHON DROIT *R.H. CAP | 1 | |
| 14 | CAPUCHON GAU. *L.H. CAP BOM | 1 | |
| 15 | SHOULDER BUSHING | 2 | |
| 16 | HOSE ASS`Y FUEL DELIVERY | 1 | |
| 17 | LOCKING CLIP (2.000 per pack) | 2 | |
| 18 | Tubing 16 mm | 1 | |
| 19 | FORMED FUEL HOSE | 1 | |
| 20 | Crimp Clamp | 2 | |
| 21 | FILTER CLIP | 1 |
