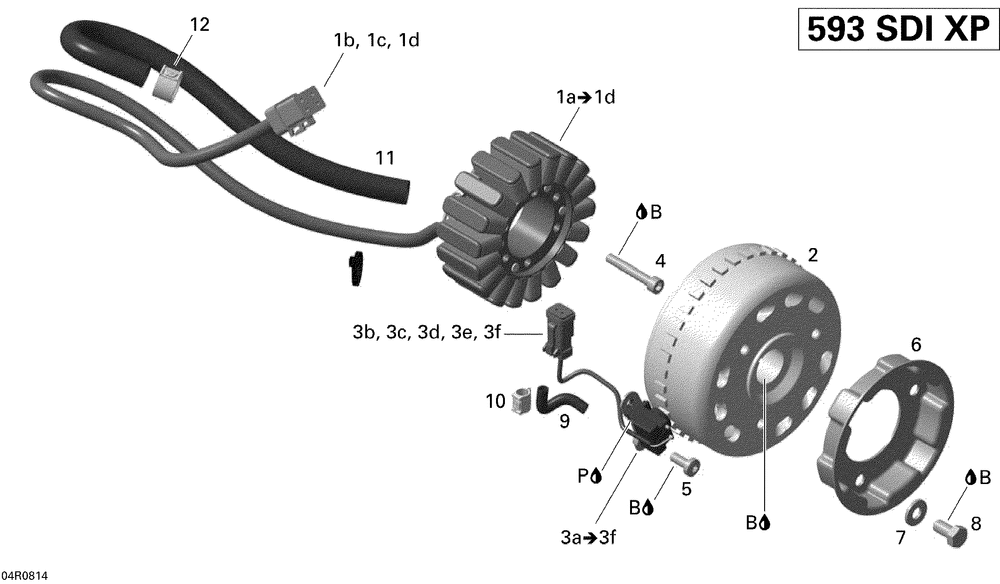

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| B | LOCTITE 243 10 ML | 0 | |
| P | LOCTITE 5910 300 ML | 0 | |
| 1a | STATOR ASS Y Includes 1 to 4 | 1 | |
| 1b | FEMALE TERMINAL HOUSING 4 CIRCUITS | 1 | |
| 1c | MALE TERMINAL | 0 | |
| 1d | CALE 4 CIRC.MAL*WEDGE-4 WAYS M | 0 | |
| 2 | FLYWHEEL | 1 | |
| 3a | PICK-UP ASStahos_Y Includes 6 to 11 | 1 | |
| 3b | Female Terminal Housing, 2 Circuits | 1 | |
| 3c | Female Terminal | 0 | |
| 3d | FEMALE TERMINAL | 0 | |
| 3e | Female Lock, 2 Circuits | 0 | |
| 3f | Sealing Cap | 0 | |
| 4 | SOCKET HEAD SCREW M6 X 40 (10.000 per pack) | 6 | |
| 5 | TORX SCREW M6 X 16 | 2 | |
| 6 | STARTING PULLEY Manual Start | 1 | |
| 7 | FLAT WASHER (3.000 per pack) | 3 | |
| 8 | HEX. SCREW M8 X 16 Manual Start (10.000 per pack) | 3 | |
| 9 | TUBE *CORRUGATED TUBE | 1 | |
| 10 | CLIP | 1 | |
| 11 | TUBE *CORRUGATED TUBE | 1 | |
| 12 | CLIP | 1 |
