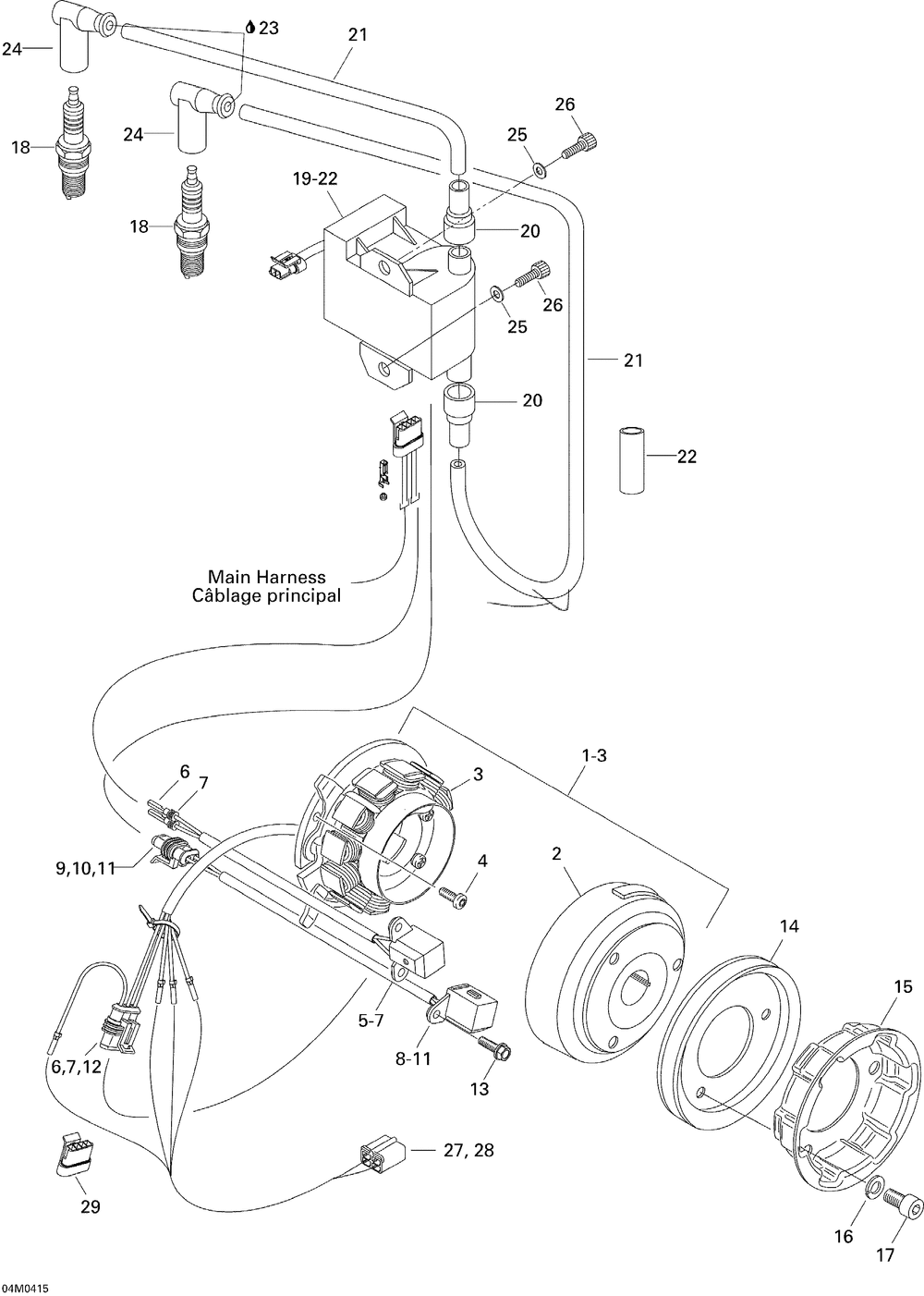

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | STATOR PLATE A Includes 1 to 2 | 1 | |
| 2 | FLYWHEEL | 1 | |
| 3 | STATOR PLATE A | 1 | |
| 4 | SCREW Tightening Torque 6-7 Nm | 3 | |
| 5 | CAPTEUR ASS. *PICKUP-ASSY. REVERSE | 1 | |
| 6 | Female Terminal | 0 | |
| 7 | Wire Seal | 0 | |
| 8 | CAPTEUR ASS. *PICKUP-ASSY. FORWARD | 1 | |
| 9 | Female Housing, 2 Circuits | 1 | |
| 12 | Female Housing, 3 Circuits | 1 | |
| 13 | TAPPING SCREW M5 X 16 (10.000 per pack) | 0 | |
| 14 | V-BELT PULLEY | 1 | |
| 15 | ROPE SHEAVE | 1 | |
| 16 | RONDELLE-FREIN *WASHER-LOCKtahos_8 | 3 | |
| 17 | Flanged Torx Screw M8 X 16 | 3 | |
| 18 | SPARK PLUG NGK BR9ES (10.000 per pack) | 0 | |
| 19 | CALIBRATION MODULE Includes 14 to 18 | 1 | |
| 20 | PROTECTION CAP | 2 | |
| 21 | SPARK PLUG WIRE | 0 | |
| 23 | DIELECTRIC GREASE 150 G | 0 | |
| 24 | SPARK PLUG CAP | 2 | |
| 25 | FLAT WASHER 6 MM (10.000 per pack) | 0 | |
| 26 | SCREW | 2 | |
| 27 | FEMALE TERMINAL HOUSING 4 CIRCUITS | 1 | |
| 28 | CALE 4 CIRC.MAL*WEDGE-4 WAYS M | 1 | |
| 29 | MALE TERMINAL HOUSING (4 CIRCU.1=10PC) (10.000 per pack) | 1 |
