SKI-DOO Summit 1000 SDI, Highmark & Highmark X Summit 1000 SDI, Highmark & Highmark X 07- Front Suspension And Ski

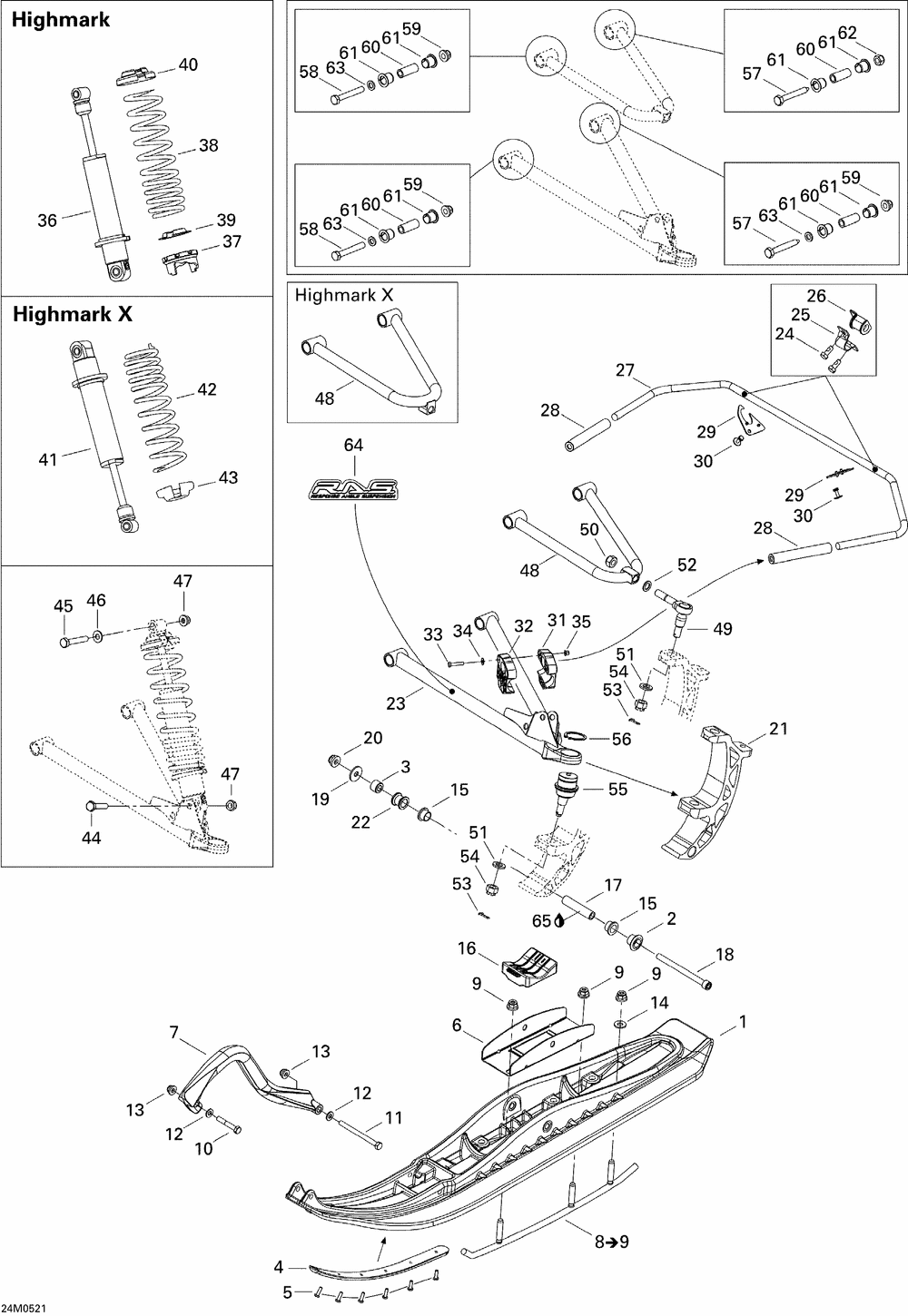

07- Front Suspension And Ski
№ Наименование Примечание Кол-во
1 LH SKI ASS Y Black B-160 1
1 RH SKI ASS Y Black B-160 1
2 CUSHION 2
3 CUSHION 2
4 PROACTIVE CONTROL 2
5 PHILLIPS SCREW tahos_10 X 7/8" (6.000 per pack) 12
6 SKI RENFORCEMENT 2
7 BLACK HANDLE Model N 2
7 YELLOW HANDLE 2
8 LISSE 6 *6 CARBIDE Includes 8 to 9 2
9 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 6
10 HEX. SCREW M8 X 50 (10.000 per pack) 2
11 SCREW-HEX. M8 X 100 (10.000 per pack) 2
12 Flat Washer 8 mm 4
13 Hex. Flanged Elastic Nut M8 4
14 FLAT WASHER (10.000 per pack) 2
15 BUSHING 4
16 SKI STOPPER 2
17 BUSHING (2.000 per pack) 2
18 SOCKET HEAD SCREW M10 X 125 (5.000 per pack) 2
19 FLAT WASHER 10 MM (5.000 per pack) 2
20 FLANGED NUT M10 (5.000 per pack) 2
21 SKI LEG 2
22 SPACER (2.000 per pack) 2
23 LH LOWER ARM ASS Y Highmark 1
23 RH LOWER ARM ASS Y Highmark X 1
23 RH LOWER ARM ASS Y Highmark 1
23 LH LOWER ARM ASS Y Highmark X 1
24 HEX. SCREW WITH NYLON (10.000 per pack) 4
25 CLAMP (5.000 per pack) 2
26 LH BUSHING 1
26 RH BUSHING 1
27 STABILISATEUR P*STABILISATOR-P 1
28 STABILISATOR BOOT 2
29 PLUG 2
30 Black Pop Rivet 3/16" 2
31 RH SLIDER HALF 2
32 LH SLIDER HALF 2
33 HEX. SCREW M5 X 25 (10.000 per pack) 8
34 FLAT WASHER (10.000 per pack) 8
35 FLANGED ELASTIC NUT M5 (4.000 per pack) 8
36 CAM 45 1
37 ADJUSTMENT CAM 1
38 SPRING Highmark 1
39 SPRING GUIDE 1
40 SPRING STOPPER 1
41 FRONT SHOCK Europe 1
42 SPRING Black-Black 1
44 Hex. Screw M10 X 60 2
46 RONDELLE *WASHER (10.000 per pack) 2
48 UPPER ARM Highmark 2
48 RH UPPER ARM Highmark X 1
48 LH UPPER ARM Highmark X 1
49 UPPER BALL JOINT 2
49 BALL JOINT 2
50 HEX. FLANGED ELASTIC NUT M12 2
51 FLAT WASHER 12 MM (10.000 per pack) 4
52 RONDELLE *WASHER (25.000 per pack) 2
53 COTTER PIN (50.000 per pack) 4
54 HEX. CASTELLATED NUT M12 (5.000 per pack) 4
55 HEX. ELASTIC HEX. NUT M12 (6.000 per pack) 2
56 Circlip 2
57 CONE SCREW M10 X 75 (5.000 per pack) 4
58 HEX. SCREW M10 X 75 4
59 ELASTIC FLANGED NUT M10 6
60 ALUMINIUM BUSHING (4.000 per pack) 8
61 COUSSINET *BUSHING (20.000 per pack) 16
62 RECTANGULAR NUT 2
64 R.A.S. SUSPENSION DECAL 2
65 SUSPENSION GREASE 10 X 400 G 0
